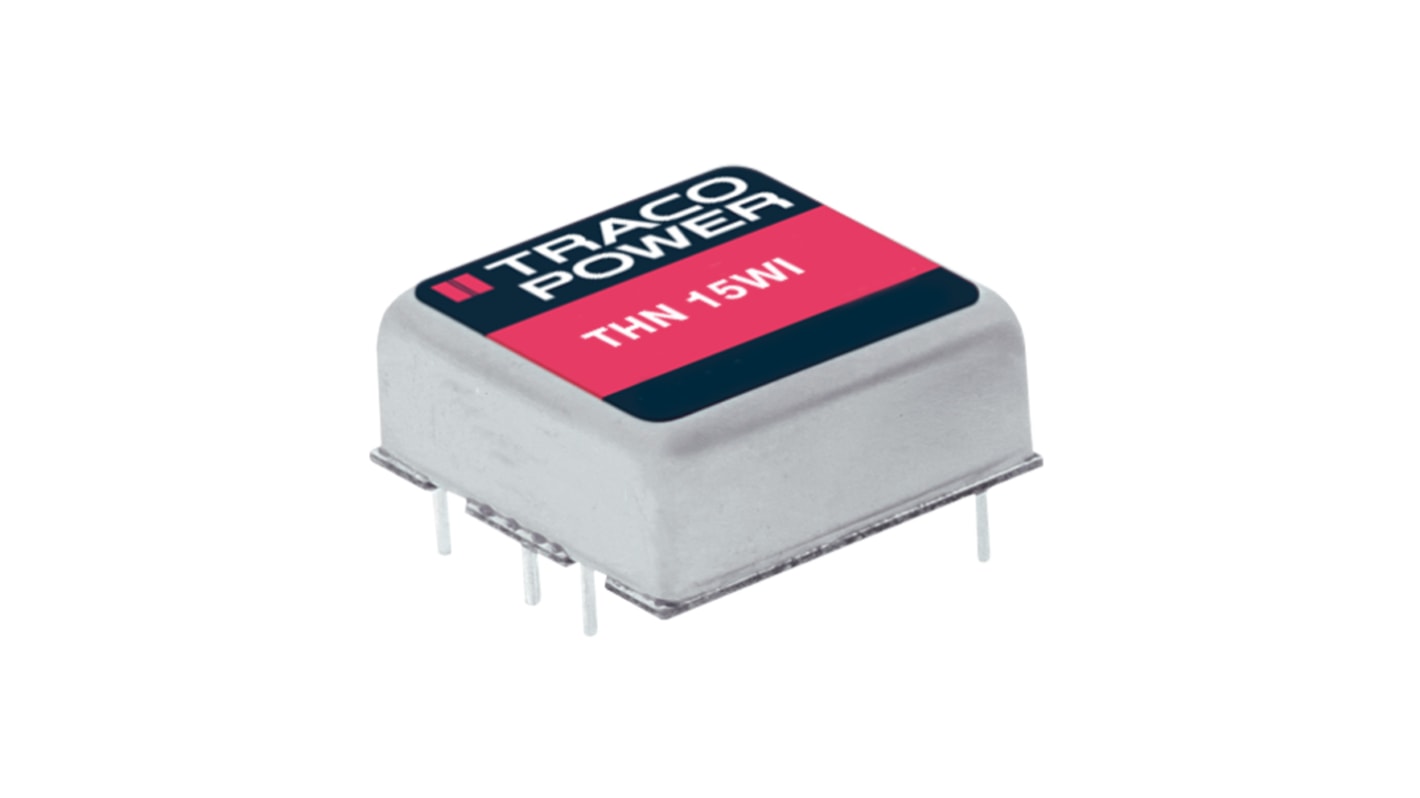

TRACOPOWER THN 15WI DC-DC Converter, 48V dc/ ±315mA Output, 18 → 75 V dc Input, 15W, Through Hole, +85°C Max
- RS Stock No.:
- 183-0655
- Mfr. Part No.:
- THN 15-4825WI
- Brand:
- TRACOPOWER
Save 13% when you buy 50 units
Subtotal (1 tube of 10 units)*
£395.87
(exc. VAT)
£475.04
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 11 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £395.87 | £39.587 |
| 5 - 9 | £383.98 | £38.398 |
| 10 - 24 | £372.12 | £37.212 |
| 25 - 49 | £356.28 | £35.628 |
| 50 + | £340.45 | £34.045 |
*price indicative
- RS Stock No.:
- 183-0655
- Mfr. Part No.:
- THN 15-4825WI
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 48 V dc, ±24V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 15W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | ±315mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | 1 x 1 in | |
| Isolation Voltage | 1.6kV dc | |
| Length | 25.4mm | |
| Width | 25.4mm | |
| Depth | 9.9mm | |
| Series | THN 15WI | |
| Load Regulation | 1 (Balanced Load) %, 5 (Unbalanced Load) % | |
| Standards Met | EN 55032, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, UL 94V-0, UL/cUL 60950-1 | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 90% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 48 V dc, ±24V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 15W | ||
Input Voltage Nominal 48 V dc | ||
Output Current ±315mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package 1 x 1 in | ||
Isolation Voltage 1.6kV dc | ||
Length 25.4mm | ||
Width 25.4mm | ||
Depth 9.9mm | ||
Series THN 15WI | ||
Load Regulation 1 (Balanced Load) %, 5 (Unbalanced Load) % | ||
Standards Met EN 55032, EN 60950-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, IEC 60950-1, UL 94V-0, UL/cUL 60950-1 | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Efficiency 90% | ||
