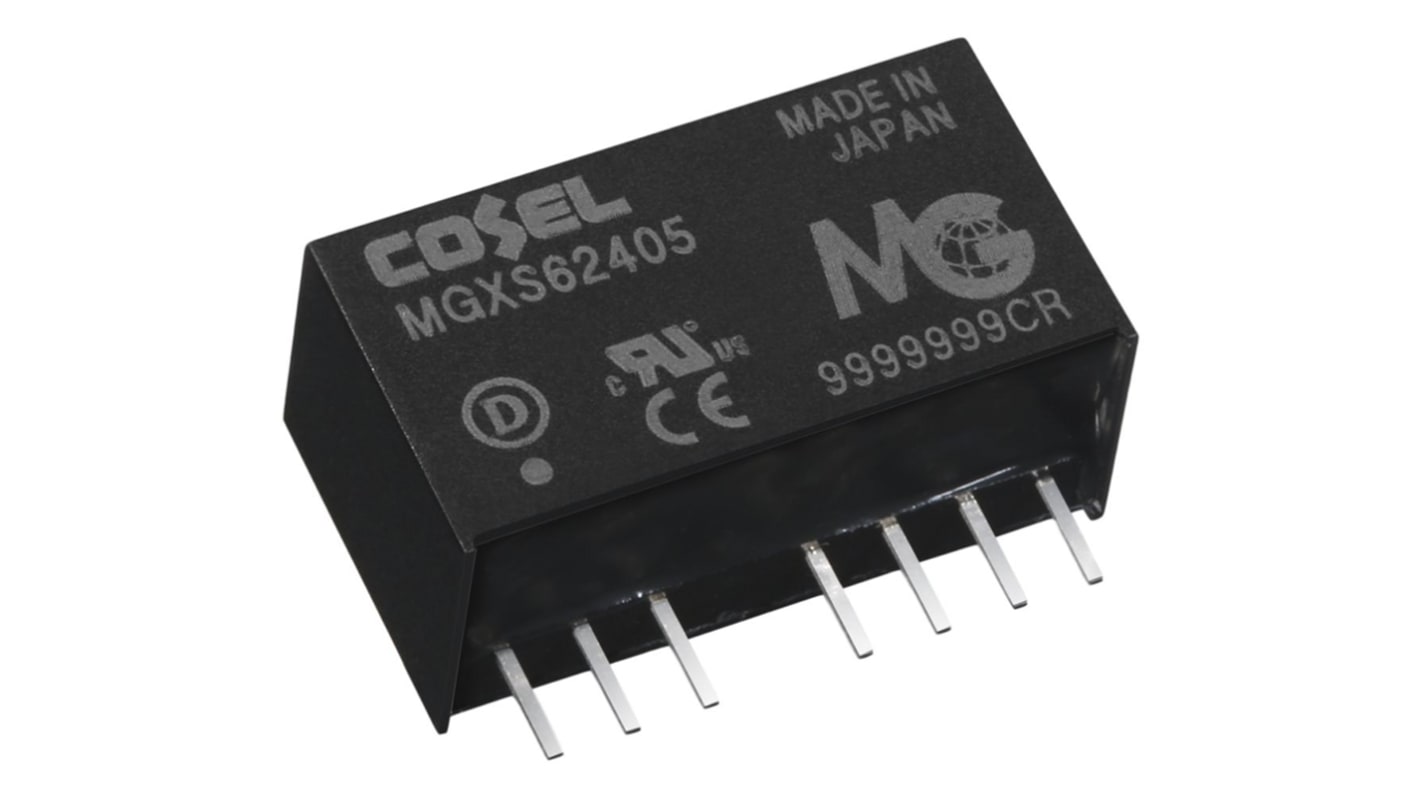

Cosel MGXS6 DC/DC Converter, 3.3V dc/ 1.6 A, 60V dc Input, 6V Input 5.28 W, Through Hole, 85 °C Max Temp 85 °C Min Temp,
- RS Stock No.:
- 183-0597
- Mfr. Part No.:
- MGXS6243R3
- Brand:
- Cosel
Bulk discount available
View bulk pricing optionsSubtotal (10 units, in tubes of 10)*
£348.19
(exc. VAT)
£417.83
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 March 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £348.19 | £34.819 |
| 5 - 9 | £337.74 | £33.774 |
| 10 - 24 | £330.79 | £33.079 |
| 25 - 49 | £323.82 | £32.382 |
| 50 + | £316.86 | £31.686 |
*price indicative
- RS Stock No.:
- 183-0597
- Mfr. Part No.:
- MGXS6243R3
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 3.3V dc | |
| Minimum Input Voltage | 6V | |
| Maximum Input Voltage | 60V dc | |
| Output Current 1 | 1.6A | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| Ripple and Noise | 300mV | |
| Output Voltage Adjustment Range | 10 % | |
| Number of Pins | 7 | |
| Isolation Voltage | 1kV dc | |
| Maximum Output Power | 5.28W | |
| Package Type | PCB Module | |
| Width | 9.5mm | |
| Weight | 7g | |
| Depth | 12mm | |
| Standards/Approvals | CE, cURus, RoHS | |
| Length | 22mm | |
| Series | MGXS6 | |
| Minimum Operating Temperature | 85°C | |
| Efficiency | 85% | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type DC/DC Converter | ||
Output Voltage 1 3.3V dc | ||
Minimum Input Voltage 6V | ||
Maximum Input Voltage 60V dc | ||
Output Current 1 1.6A | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
Ripple and Noise 300mV | ||
Output Voltage Adjustment Range 10 % | ||
Number of Pins 7 | ||
Isolation Voltage 1kV dc | ||
Maximum Output Power 5.28W | ||
Package Type PCB Module | ||
Width 9.5mm | ||
Weight 7g | ||
Depth 12mm | ||
Standards/Approvals CE, cURus, RoHS | ||
Length 22mm | ||
Series MGXS6 | ||
Minimum Operating Temperature 85°C | ||
Efficiency 85% | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- JP
The Cosel DC-DC converter designed for PCB mounting, providing a reliable solution for powering electronic devices with varying voltage requirements while ensuring safety and efficiency in operation.
Wide input voltage range of DC18 to 36V, accommodating diverse applications
High efficiency ratings of up to 82%, optimising energy use
Overcurrent protection circuit that automatically recovers, enhancing reliability
Designed for operation in extreme temperatures ranging from -40 to +85°C
