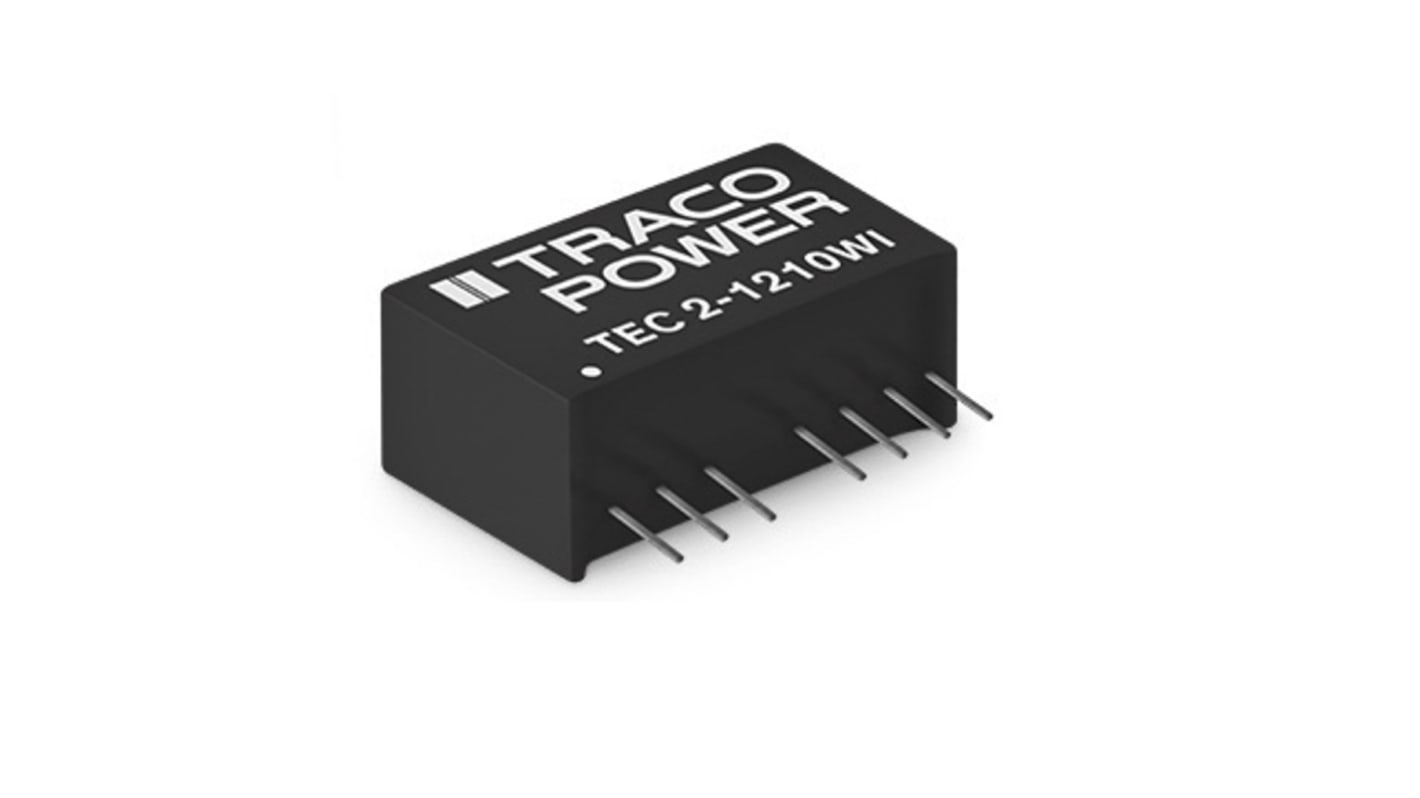

TRACOPOWER TEC 2WI DC-DC Converter, 3.3V dc/ 500mA Output, 9 → 36 V dc Input, 2W, Through Hole, +93°C Max Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£10.01

(exc. VAT)

£12.01

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 2 unit(s) ready to ship
  • Plus 10 unit(s) shipping from 30 October 2025
  • Plus 999,999,987 unit(s) shipping from 04 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£10.01
5 - 9£9.70
10 - 24£9.40
25 - 49£9.01
50 +£8.60

*price indicative

RS Stock No.:
174-2308
Mfr. Part No.:
TEC 2-2410WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

3.3V dc

Input Voltage Range

9 → 36 V dc

Power Rating

2W

Input Voltage Nominal

24 V dc

Output Current

500mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

1

Package

SIP-8

Isolation Voltage

1.6kV dc

Width

9.1mm

Depth

11.2mm

Length

21.8mm

Series

TEC 2WI

Load Regulation

0.01

Minimum Temperature

-40°C

Efficiency

76%

Maximum Temperature

+93°C

COO (Country of Origin):
TW

TRACOPOWER TEC 2WI Series DC-DC Converter, 3.3V DC Output Voltage, 2W Power Rating - TEC 2-2410WI


This isolated DC-DC converter delivers reliable power handling with an output of 3.3V and a nominal power rating of 2W. The compact SIP-8 package measures 21.8mm in length, 9.m in width, and 11.2mm in depth, making it suitable for space-constrained applications. With a wide input voltage range of 9 to 36V DC, this device is designed to meet diverse operational demands across various industries.

Features & Benefits


• I/O isolation voltage ensures safe operation in sensitive environments
• Continuous short circuit protection enhances reliability
• Wide input voltage range accommodates diverse power sources
• Operating temperature range supports extreme conditions
• Fully regulated output eliminates voltage fluctuations
• Compact SIP-8 packaging simplifies PCB integration

Applications


• Suitable for telecommunications and signal processing
• Ideal for use in medical and industrial equipment
• Utilised in battery-powered devices requiring efficient voltage conversion

What is the efficiency rating of this converter under normal operating conditions?


The efficiency for this converter is rated at 76%, ensuring optimal performance while minimising energy loss during operation across the specified load range.

How does this converter perform in terms of temperature variations?


It operates effectively in temperatures ranging from -40°C to +93°C, making it suitable for various environmental conditions without compromising performance.

What type of circuit protection is incorporated?


It features continuous short circuit protection, allowing for automatic recovery, which safeguards the device and connected components from potential damage during overload situations.
