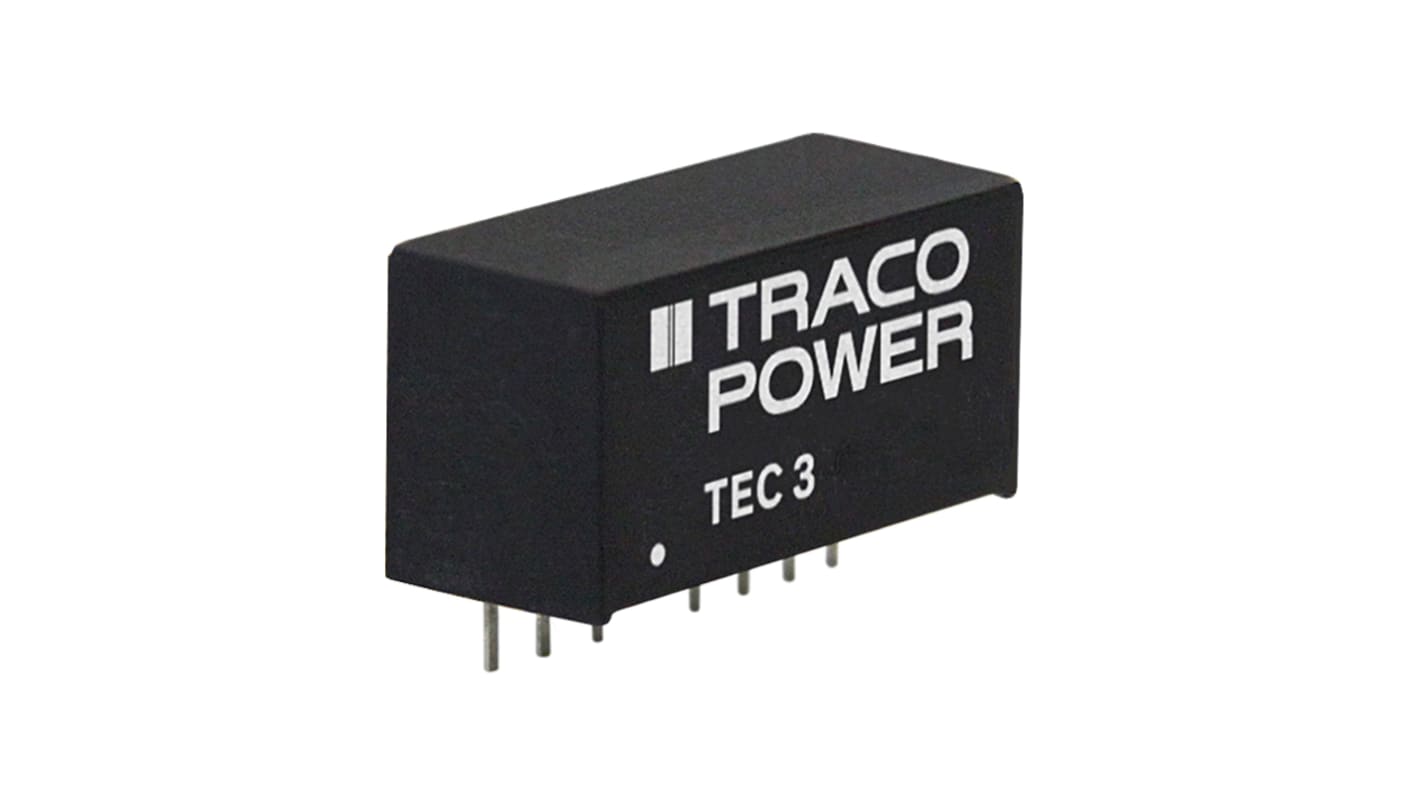

TRACOPOWER TEC 3 DC-DC Converter, ±15V dc/ 100mA Output, 4.5 → 13.2 V dc Input, 3W, Through Hole, +90°C Max Temp
- RS Stock No.:
- 174-2159
- Mfr. Part No.:
- TEC 3-0923
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£125.19
(exc. VAT)
£150.23
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 8 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £125.19 | £12.519 |
| 5 - 9 | £121.44 | £12.144 |
| 10 - 24 | £117.68 | £11.768 |
| 25 - 49 | £112.67 | £11.267 |
| 50 + | £107.66 | £10.766 |
*price indicative
- RS Stock No.:
- 174-2159
- Mfr. Part No.:
- TEC 3-0923
- Brand:
- TRACOPOWER
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | ±15V dc | |
| Input Voltage Range | 4.5 → 13.2 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 9 V dc | |
| Output Current | 100mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | SIP-8 | |
| Isolation Voltage | 1.6kV dc | |
| Depth | 11.2mm | |
| Width | 9.1mm | |
| Length | 21.8mm | |
| Series | TEC 3 | |
| Load Regulation | 0.01 | |
| Efficiency | 82% | |
| Maximum Temperature | +90°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage ±15V dc | ||
Input Voltage Range 4.5 → 13.2 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 9 V dc | ||
Output Current 100mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP-8 | ||
Isolation Voltage 1.6kV dc | ||
Depth 11.2mm | ||
Width 9.1mm | ||
Length 21.8mm | ||
Series TEC 3 | ||
Load Regulation 0.01 | ||
Efficiency 82% | ||
Maximum Temperature +90°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
TRACOPOWER TEC 3 Series DC-DC Converter, 0.82 Efficiency, 1.6kV DC Isolation Voltage - TEC 3-0923
This isolated DC-DC converter delivers efficient power conversion with an output of ±15 V DC and a power rating of 3 W, making it suitable for various electronic applications. It operates over a wide input voltage range, enhancing its versatility, and is designed to function in a temperature range from -40°C to +90°C, accommodating challenging environmental conditions.
Features & Benefits
• Compact SIP-8 package optimises PCB space
• 1.6 kV isolation voltage enhances operational safety
• Continuous short circuit protection prevents damage
• Remote on/off functionality provides increased control
• Fully regulated output ensures stability
• Designed for a broad input voltage range to meet diverse power needs
• 1.6 kV isolation voltage enhances operational safety
• Continuous short circuit protection prevents damage
• Remote on/off functionality provides increased control
• Fully regulated output ensures stability
• Designed for a broad input voltage range to meet diverse power needs
Applications
• Powering automation systems
• Suitable for communication equipment
• Utilised in industrial control systems
• Ideal for medical devices needing stable power
• Commonly integrated into transportation electronics
• Suitable for communication equipment
• Utilised in industrial control systems
• Ideal for medical devices needing stable power
• Commonly integrated into transportation electronics
What input voltage range can be accommodated?
The device supports an input voltage range of 4.5 V to 13.2 V DC.
How do I control the remote on/off feature?
Activation or deactivation can be achieved using a passive current control signal.
Is it necessary to add external fuses?
The requirement for external fuses should be determined based on the specific application.
What happens during short circuit conditions?
It offers continuous short circuit protection with automatic recovery once the fault is resolved.
Can it operate in extreme temperatures?
Yes, it is designed to perform effectively in temperature ranges from -40°C to +90°C.
