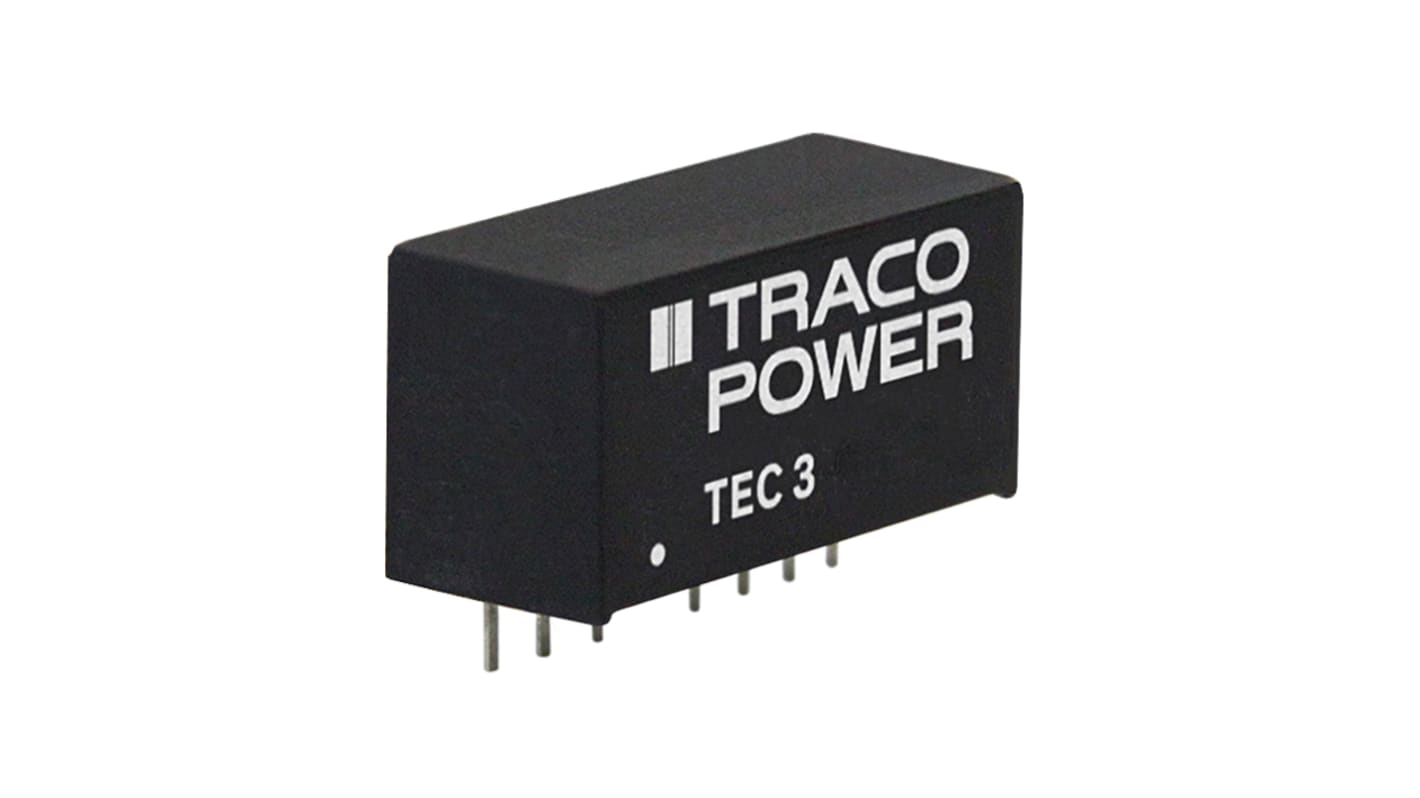

TRACOPOWER TEC 3 DC-DC Converter, ±12V dc/ 125mA Output, 4.5 → 13.2 V dc Input, 3W, Through Hole, +90°C Max Temp
- RS Stock No.:
- 174-2158
- Mfr. Part No.:
- TEC 3-0922
- Brand:
- TRACOPOWER
Available to back order for despatch 02/12/2024
Price 1 Tube of 10
£120.34
(exc. VAT)
£144.41
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £120.34 | £12.034 |
5 - 9 | £116.73 | £11.673 |
10 - 24 | £113.12 | £11.312 |
25 - 49 | £108.31 | £10.831 |
50 + | £103.49 | £10.349 |
*price indicative
- RS Stock No.:
- 174-2158
- Mfr. Part No.:
- TEC 3-0922
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
TEC 3 is a new series with the design purpose to improve the prevalent 3 Watt SIP-8 DC/DC converters in terms of cost, efficiency and performance. The latest technology and components effectuate a high efficiency for a low thermal loss. This enables an operating temperature range from -40°C up to +90°C. The converters are fully regulated over 0 - 100% load (no minimum load is required). The low input range input is extended from 4.5 to 13.2 VDC while models are also available with the standard 2:1 input ranges of 9-18, 18-36 and 36-75 VDC (see TEC 3WI series for 4:1 input ranges). The functional I/O-isolation system has a test voltage (60 s) of 1600 VDC.
Compact SIP-8 package
I/O-isolation voltage 1600 VDC
Fully regulated outputs
Operating temperature range –40°C to +90°C
Continuous short circuit protection
Remote On/Off
3-year product warranty
I/O-isolation voltage 1600 VDC
Fully regulated outputs
Operating temperature range –40°C to +90°C
Continuous short circuit protection
Remote On/Off
3-year product warranty
Specifications
Attribute | Value |
---|---|
Output Voltage | ±12V dc |
Input Voltage Range | 4.5 → 13.2 V dc |
Power Rating | 3W |
Input Voltage Nominal | 9 V dc |
Output Current | 125mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Package | SIP-8 |
Isolation Voltage | 1.6kV dc |
Depth | 11.2mm |
Width | 9.1mm |
Length | 21.8mm |
Series | TEC 3 |
Load Regulation | 0.01 |
Efficiency | 82% |
Minimum Temperature | -40°C |
Maximum Temperature | +90°C |
