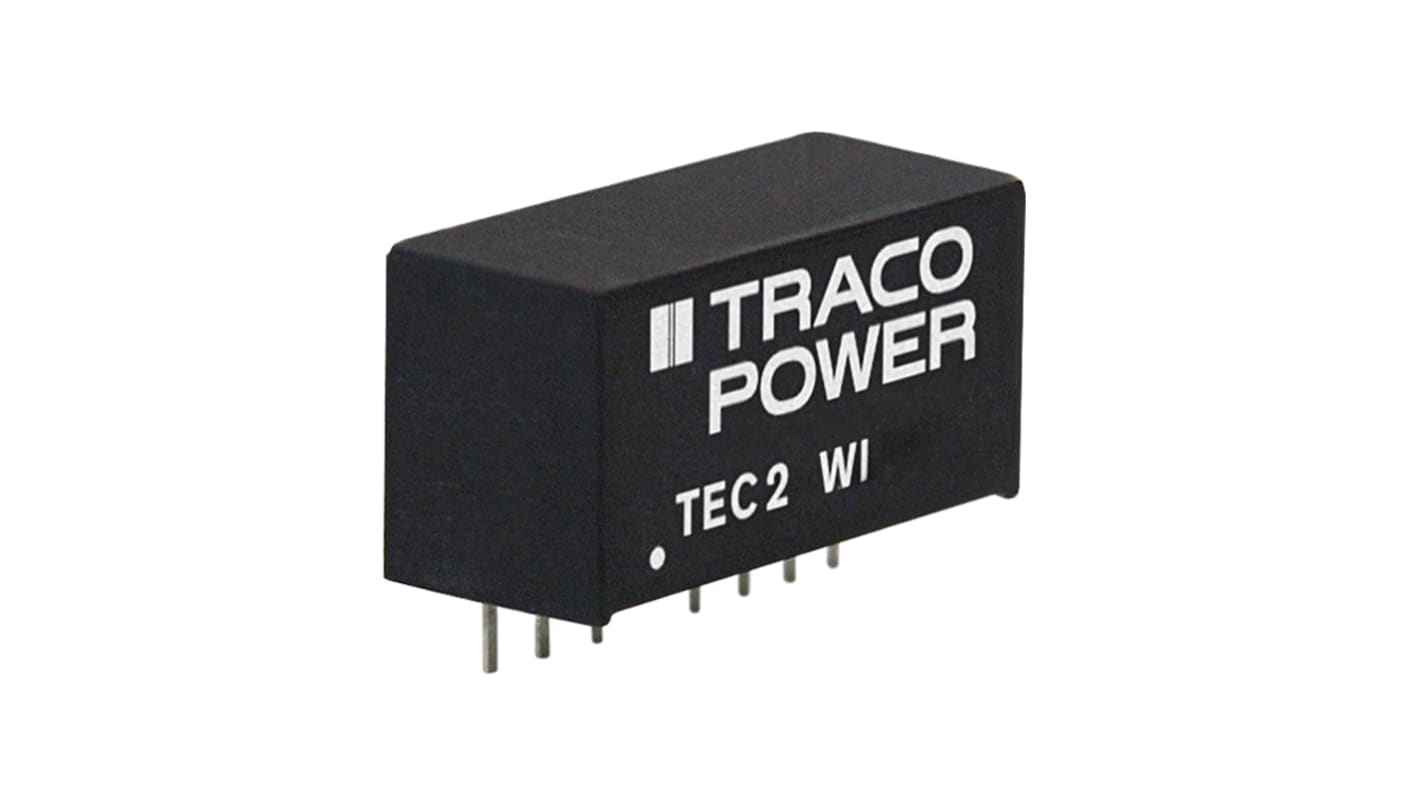

TRACOPOWER TEC 2WI DC-DC Converter, 9V dc/ 222mA Output, 18 → 75 V dc Input, 2W, Through Hole, +93°C Max Temp
- RS Stock No.:
- 174-2144
- Mfr. Part No.:
- TEC 2-4819WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£98.49
(exc. VAT)
£118.19
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £98.49 | £9.849 |
| 5 - 9 | £95.53 | £9.553 |
| 10 - 24 | £92.58 | £9.258 |
| 25 - 49 | £88.63 | £8.863 |
| 50 + | £84.70 | £8.47 |
*price indicative
- RS Stock No.:
- 174-2144
- Mfr. Part No.:
- TEC 2-4819WI
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 9V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 222mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP-8 | |
| Isolation Voltage | 1.6kV dc | |
| Depth | 11.2mm | |
| Length | 21.8mm | |
| Width | 9.1mm | |
| Series | TEC 2WI | |
| Load Regulation | 0.01 | |
| Maximum Temperature | +93°C | |
| Efficiency | 81% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 9V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 222mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP-8 | ||
Isolation Voltage 1.6kV dc | ||
Depth 11.2mm | ||
Length 21.8mm | ||
Width 9.1mm | ||
Series TEC 2WI | ||
Load Regulation 0.01 | ||
Maximum Temperature +93°C | ||
Efficiency 81% | ||
Minimum Temperature -40°C | ||
