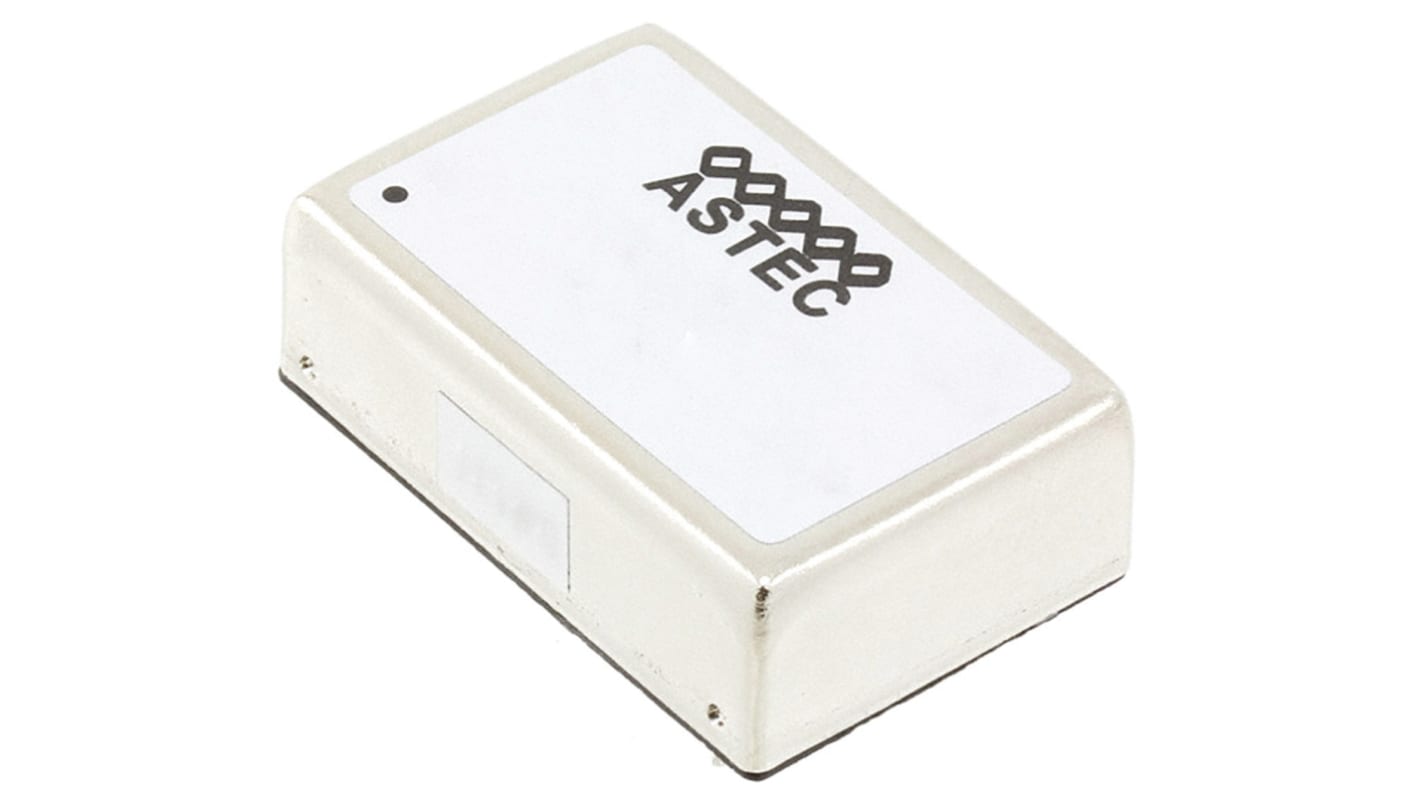

Artesyn / Advanced Energy ASA DC-DC Converter, ±12V dc/ 250mA Output, 9 → 36 V dc Input, 6W, Through Hole, +71°C
- RS Stock No.:
- 173-9207
- Mfr. Part No.:
- ASA00BB18-LS
- Brand:
- Artesyn / Advanced Energy
Subtotal (1 tube of 10 units)*
£180.44
(exc. VAT)
£216.53
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £180.44 | £18.044 |
*price indicative
- RS Stock No.:
- 173-9207
- Mfr. Part No.:
- ASA00BB18-LS
- Brand:
- Artesyn / Advanced Energy
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Artesyn / Advanced Energy | |
| Output Voltage | ±12V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 6W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 250mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 2 | |
| Package | DIP | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 10.16mm | |
| Length | 31.75mm | |
| Series | ASA | |
| Load Regulation | ±3% | |
| Maximum Temperature | +71°C | |
| Efficiency | 81% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Artesyn / Advanced Energy | ||
Output Voltage ±12V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 6W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 250mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package DIP | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.16mm | ||
Length 31.75mm | ||
Series ASA | ||
Load Regulation ±3% | ||
Maximum Temperature +71°C | ||
Efficiency 81% | ||
Minimum Temperature -40°C | ||
