Artesyn Embedded Technologies ATA DC-DC Converter, 5V dc/ 300mA Output, 18 → 75 V dc Input, 3W, Through Hole,
- RS Stock No.:
- 173-9182
- Mfr. Part No.:
- ATA00AA36-L
- Brand:
- Artesyn Embedded Technologies
Available to back order for despatch 06/08/2024
Added
Price 1 Tube of 10
£178.33
(exc. VAT)
£214.00
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £178.33 | £17.833 |
| 5 - 9 | £171.20 | £17.12 |
| 10 - 24 | £165.85 | £16.585 |
| 25 - 49 | £156.93 | £15.693 |
| 50 + | £146.23 | £14.623 |
| *price indicative | ||
- RS Stock No.:
- 173-9182
- Mfr. Part No.:
- ATA00AA36-L
- Brand:
- Artesyn Embedded Technologies
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

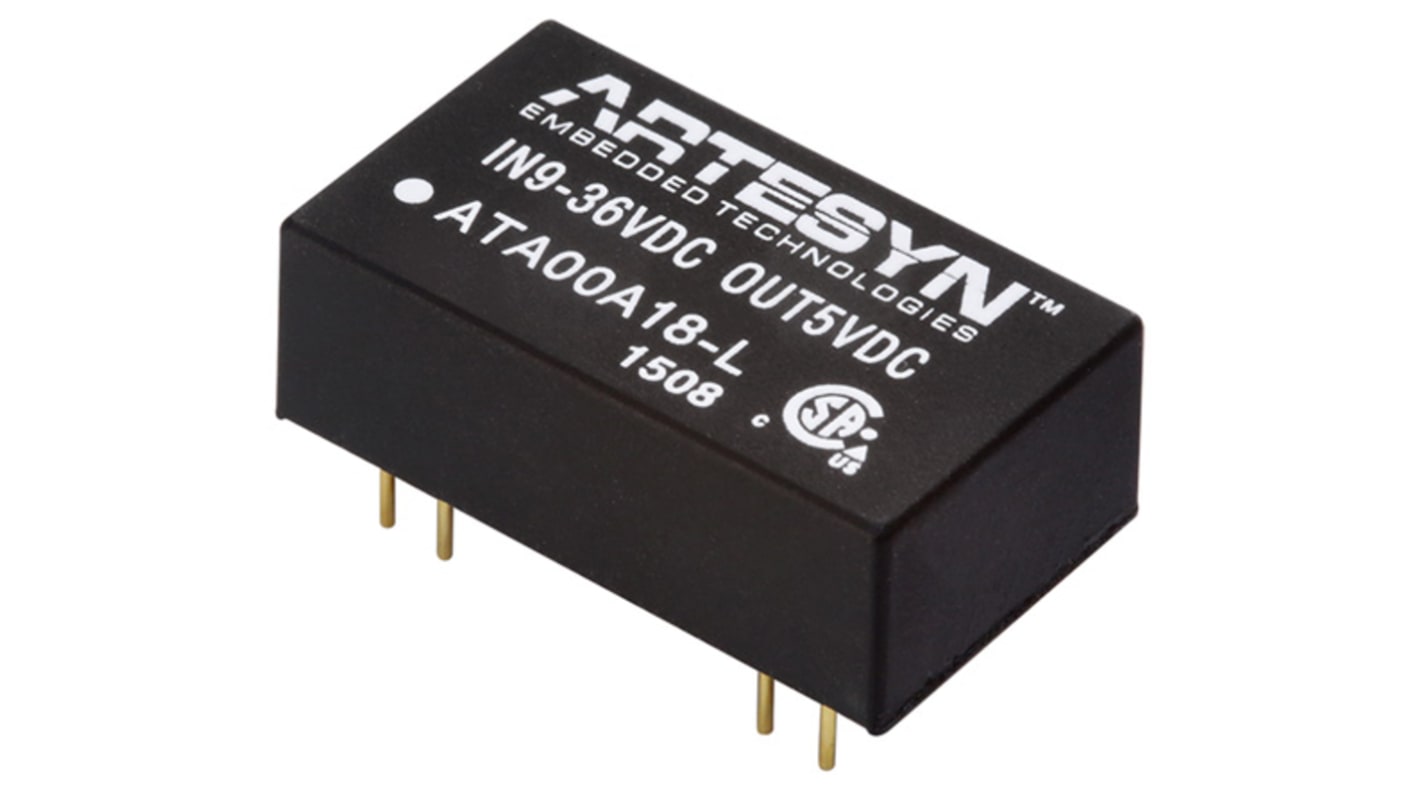

Artesyn ATA 3W Series Isolated DC / DC Converter
Artesyn ATA series of isolated DC / DC converters offer an ultra compact DIP or SIP package, with a low profile of 8 mm. The series offers a highly efficient option of up to 80% with an ultra-wide 4:1 input range. The ATA series alows offers a remote on/off functionality, adding an extra layer of customisation for your application.
The ATA series is also qualified for lead-free reflow solder process according to IPC/JEDEC J-STD-020D.
The ATA series is also qualified for lead-free reflow solder process according to IPC/JEDEC J-STD-020D.
Features and Benefits
3 W total power.
12, 24 or 48 V options available.
Single & dual output.
Ultra compact DIP & SIP options.
4:1 input range.
Remote on/off functionality.
Input filter adheres to EN55022, class A & FCC level A.
Standards
UL/cUL 60950-1, IEC/EN 60950-1
Artesyn Isolated DC / DC Converter
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 5V dc |
| Input Voltage Range | 18 → 75 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 48 V dc |
| Output Current | 300mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | DIP |
| Isolation Voltage | 1.5kV dc |
| Length | 23.8mm |
| Depth | 8mm |
| Width | 13.7mm |
| Series | ATA |
| Load Regulation | -1.2 → +1.2% |
| Standards Met | CB Scheme, CSA Certificate, EN 55022, FCC, IEC/EN 60950-1, UL/cUL 60950-1 |
| Maximum Temperature | +85°C |
| Efficiency | 77% |
| Minimum Temperature | -40°C |
