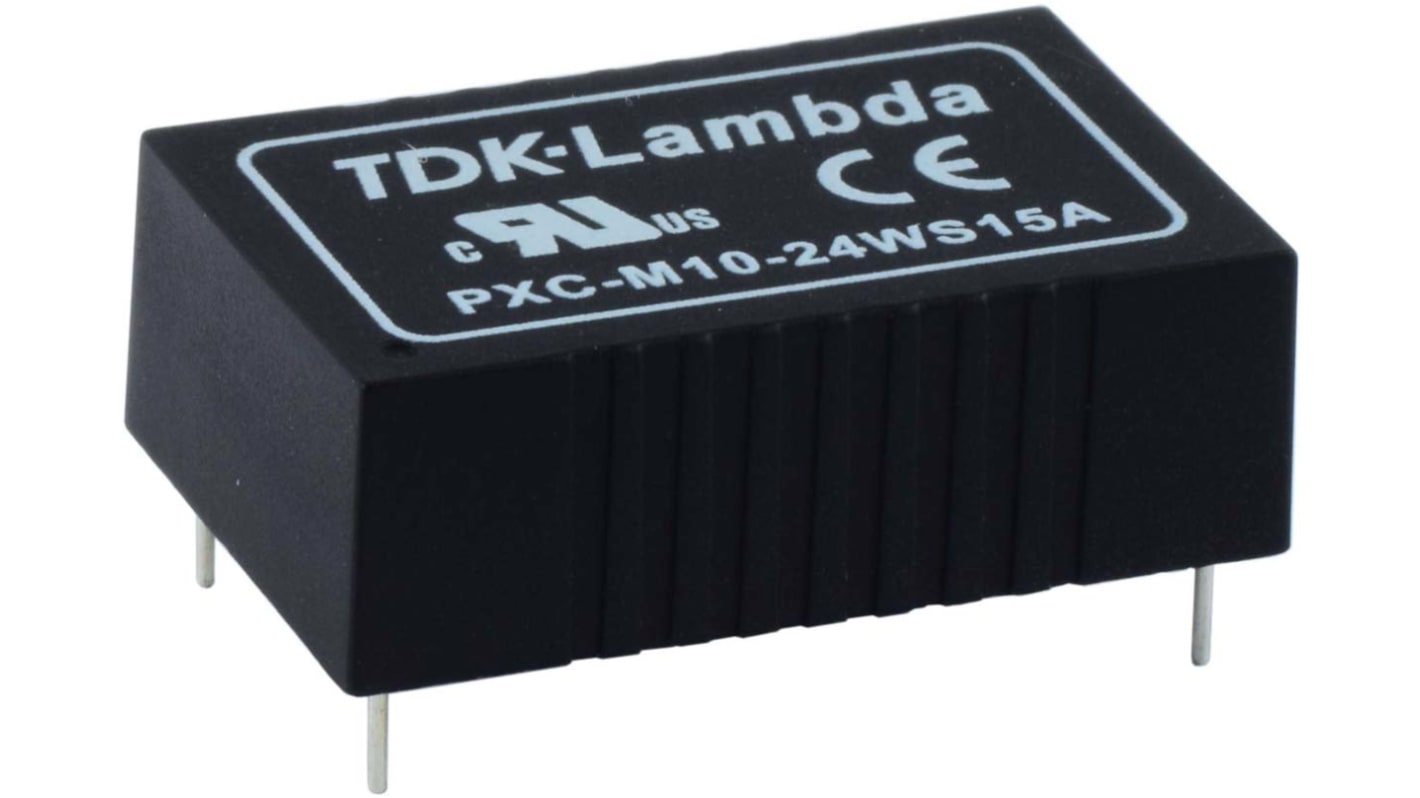

TDK-Lambda PXC-M10W DC-DC Converter, 12V dc/ 830mA Output, 9 → 36 V dc Input, 10W, PCB Mount, +77°C Max Temp
- RS Stock No.:
- 173-9148
- Mfr. Part No.:
- PXC-M10-24WS12
- Brand:
- TDK-Lambda
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 173-9148
- Mfr. Part No.:
- PXC-M10-24WS12
- Brand:
- TDK-Lambda
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TDK-Lambda | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 10W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 830mA | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | ±10% | |
| Isolation Voltage | 5kV ac | |
| Depth | 10.2mm | |
| Width | 20.3mm | |
| Length | 31.8mm | |
| Railway Approved | No | |
| Series | PXC-M10W | |
| Medical Approved | Yes | |
| Maximum Temperature | +77°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 89% | |
| Standards Met | 60601-1 Approval, ANSI/AAMI ES60601-1, CE Mark, Class A and FCC part 18, Easier System Approval, EN55011, EN55022, EN60601-1, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60601-1, MIL-STD-810F | |
Select all | ||
|---|---|---|
Brand TDK-Lambda | ||
Output Voltage 12V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 830mA | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range ±10% | ||
Isolation Voltage 5kV ac | ||
Depth 10.2mm | ||
Width 20.3mm | ||
Length 31.8mm | ||
Railway Approved No | ||
Series PXC-M10W | ||
Medical Approved Yes | ||
Maximum Temperature +77°C | ||
Minimum Temperature -40°C | ||
Efficiency 89% | ||
Standards Met 60601-1 Approval, ANSI/AAMI ES60601-1, CE Mark, Class A and FCC part 18, Easier System Approval, EN55011, EN55022, EN60601-1, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, IEC60601-1, MIL-STD-810F | ||
