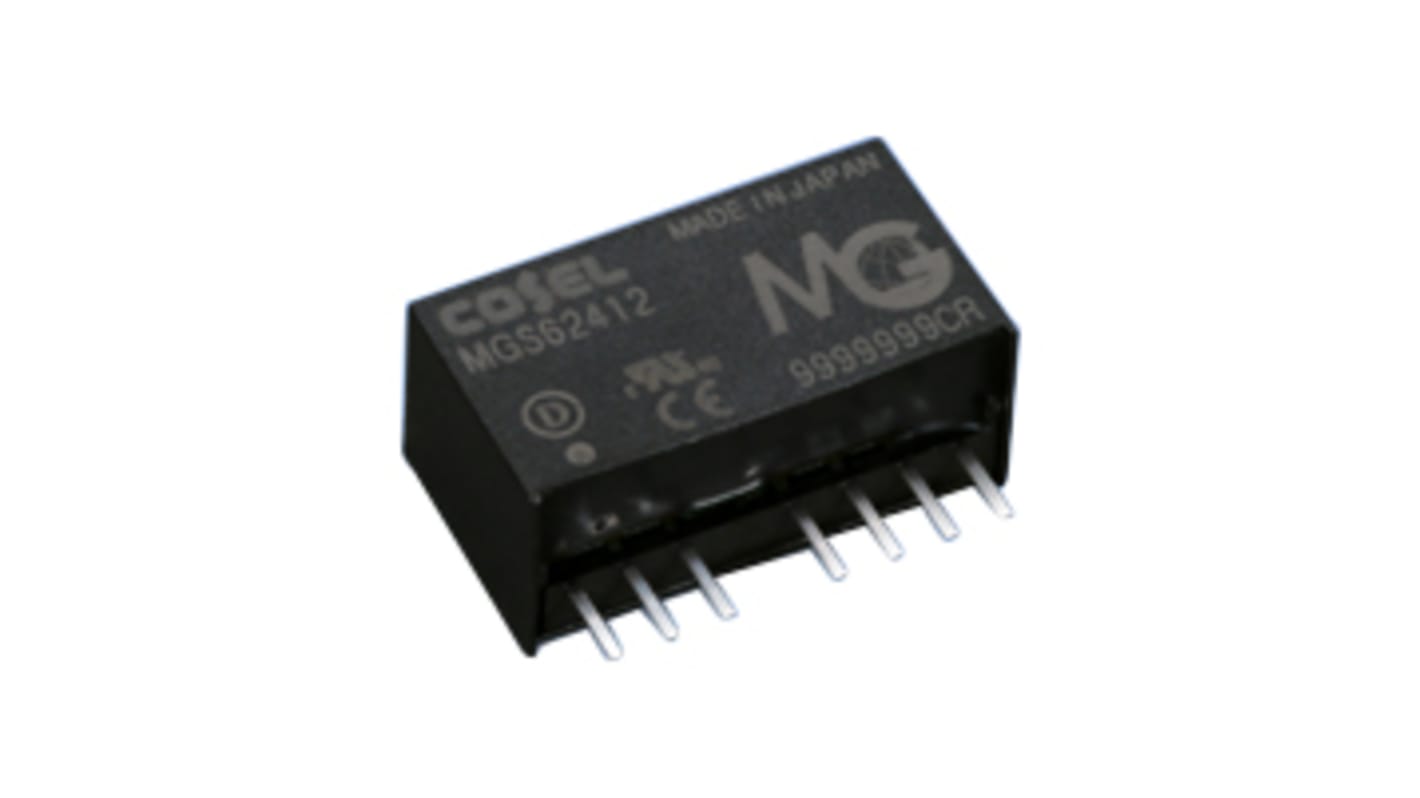

Cosel MGS DC/DC Converter, 5V dc/ 2 A, 5V dc Input, 4.5V Input 10 W, PCB, 85 °C Max Temp -40 °C Min Temp, 7-Pin SIP-8
- RS Stock No.:
- 171-5196
- Mfr. Part No.:
- MGS100505
- Brand:
- Cosel
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£24.24
(exc. VAT)
£29.09
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1 unit(s) ready to ship
- Plus 10 unit(s) shipping from 25 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.24 |
| 5 - 9 | £23.51 |
| 10 - 24 | £23.03 |
| 25 - 49 | £22.54 |
| 50 + | £22.06 |
*price indicative
- RS Stock No.:
- 171-5196
- Mfr. Part No.:
- MGS100505
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 4.5V | |
| Maximum Input Voltage | 5V dc | |
| Output Current 1 | 2A | |
| Output Current 2 | 0.2A | |
| Mount Type | PCB | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 4.90 to 5.21 V | |
| Ripple and Noise | 300mV Pk-Pk | |
| Isolation Voltage | 1kV dc | |
| Number of Pins | 7 | |
| Package Type | SIP-8 | |
| Maximum Output Power | 10W | |
| Length | 22mm | |
| Series | MGS | |
| Weight | 7g | |
| Depth | 12mm | |
| Standards/Approvals | cUL, UL62368-1, EN 62368-1, RoHS, C-UL, UL60950-1, CSA, CE, UKCA, EN62368-1 | |
| Width | 9.5mm | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 87% | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 4.5V | ||
Maximum Input Voltage 5V dc | ||
Output Current 1 2A | ||
Output Current 2 0.2A | ||
Mount Type PCB | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 4.90 to 5.21 V | ||
Ripple and Noise 300mV Pk-Pk | ||
Isolation Voltage 1kV dc | ||
Number of Pins 7 | ||
Package Type SIP-8 | ||
Maximum Output Power 10W | ||
Length 22mm | ||
Series MGS | ||
Weight 7g | ||
Depth 12mm | ||
Standards/Approvals cUL, UL62368-1, EN 62368-1, RoHS, C-UL, UL60950-1, CSA, CE, UKCA, EN62368-1 | ||
Width 9.5mm | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 87% | ||
- COO (Country of Origin):
- JP
The Cosel PCB mount DC-DC converter offering a low-profile, isolated power solution Ideal for industrial applications. Its Compact design ensures compatibility with standard PCB footprints.
Remote ON/OFF feature enhances control over power management
Integrated overcurrent protection ensures reliability and safety under load
