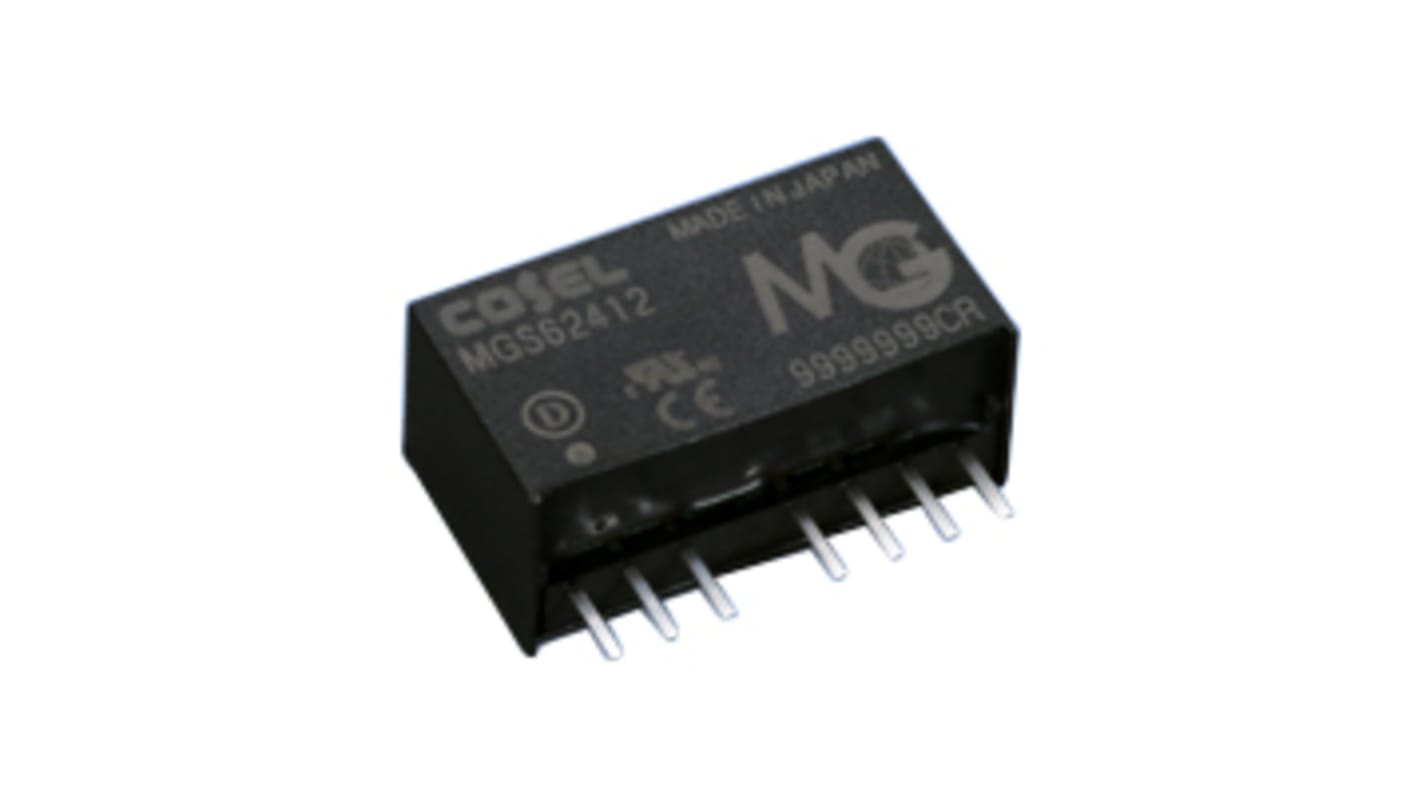

Cosel MGS DC-DC Converter, 15V dc/ 700mA Output, 36 → 76 V dc Input, 10.5W, PCB Mount, +85°C Max Temp -40°C Min
- RS Stock No.:
- 171-5042
- Mfr. Part No.:
- MGS104815
- Brand:
- Cosel
Bulk discount available
Subtotal (1 unit)*
£24.70
(exc. VAT)
£29.64
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £24.70 |
| 5 - 9 | £23.95 |
| 10 - 24 | £23.46 |
| 25 - 49 | £22.96 |
| 50 + | £22.47 |
*price indicative
- RS Stock No.:
- 171-5042
- Mfr. Part No.:
- MGS104815
- Brand:
- Cosel
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 36 → 76 V dc | |
| Power Rating | 10.5W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 700mA | |
| Mounting Type | PCB Mount | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 8 | |
| Isolation Voltage | 1kV dc | |
| Width | 9.5mm | |
| Depth | 12mm | |
| Length | 22mm | |
| Series | MGS | |
| Load Regulation | 60mV | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Efficiency | 90% | |
Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 15V dc | ||
Input Voltage Range 36 → 76 V dc | ||
Power Rating 10.5W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 700mA | ||
Mounting Type PCB Mount | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 8 | ||
Isolation Voltage 1kV dc | ||
Width 9.5mm | ||
Depth 12mm | ||
Length 22mm | ||
Series MGS | ||
Load Regulation 60mV | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Efficiency 90% | ||
