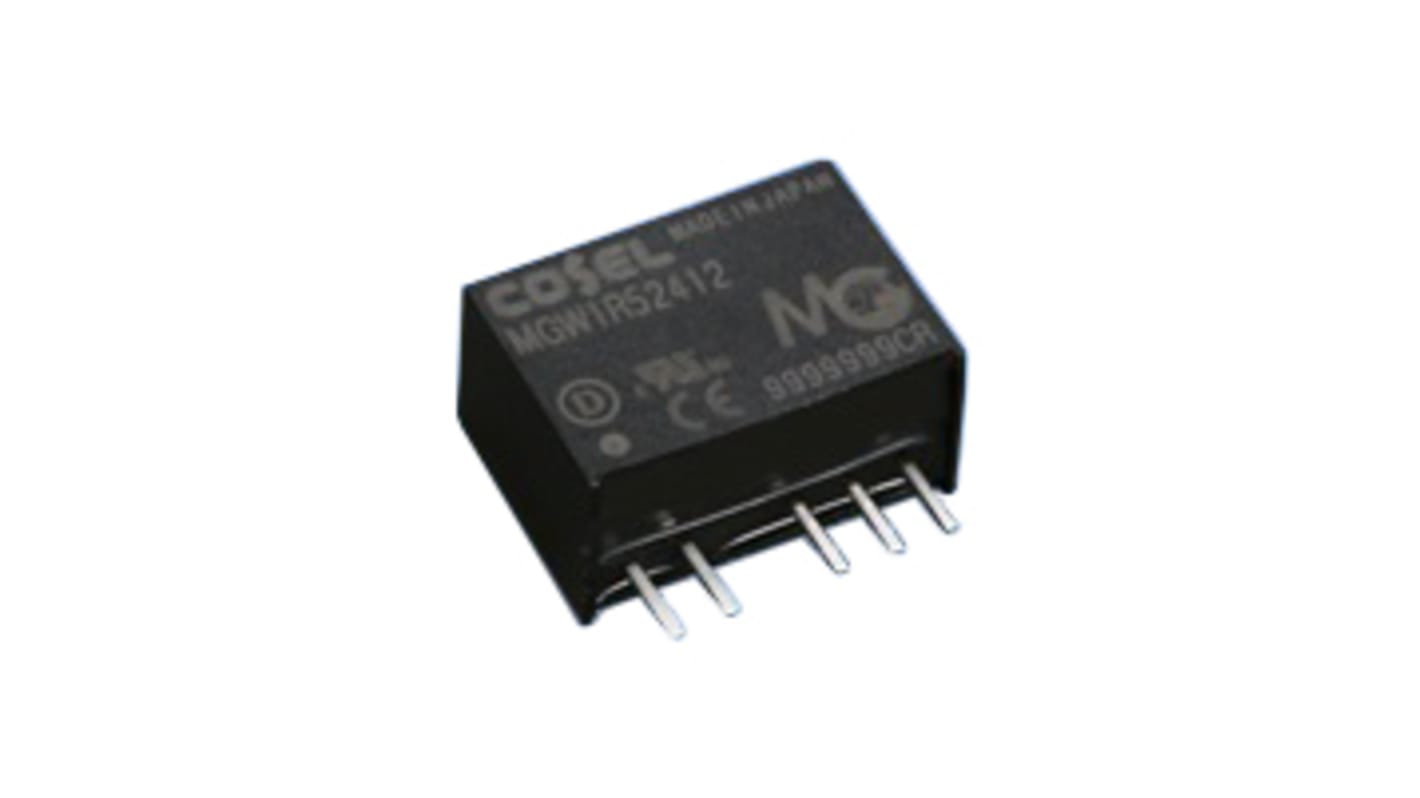

Cosel MGF DC/DC Converter, 12V dc, -12 V dc/ 65 mA, 24V dc Input, 9V Input 1.56 W, PCB, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 171-4836
- Mfr. Part No.:
- MGFW1R52412
- Brand:
- Cosel
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
- RS Stock No.:
- 171-4836
- Mfr. Part No.:
- MGFW1R52412
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 12, -12V dc | |
| Minimum Input Voltage | 9V | |
| Maximum Input Voltage | 24V dc | |
| Output Current 1 | 65mA | |
| Output Current 2 | 0.05A | |
| Output Voltage 2 | 15V | |
| Mount Type | PCB | |
| Number of Outputs | 2 | |
| Output Voltage Adjustment Range | 11.64 to 12.36 V | |
| Ripple and Noise | 200mV Pk-Pk | |
| Number of Pins | 7 | |
| Isolation Voltage | 1kV dc | |
| Package Type | SIP-6 | |
| Maximum Output Power | 1.56W | |
| Depth | 12mm | |
| Weight | 4g | |
| Standards/Approvals | CE, UL60950-1, EN 62368-1, EN62368-1, UKCA, cUL, C-UL, CSA, UL62368-1, RoHS | |
| Length | 17mm | |
| Series | MGF | |
| Width | 8.5mm | |
| Efficiency | 81% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type DC/DC Converter | ||
Output Voltage 1 12, -12V dc | ||
Minimum Input Voltage 9V | ||
Maximum Input Voltage 24V dc | ||
Output Current 1 65mA | ||
Output Current 2 0.05A | ||
Output Voltage 2 15V | ||
Mount Type PCB | ||
Number of Outputs 2 | ||
Output Voltage Adjustment Range 11.64 to 12.36 V | ||
Ripple and Noise 200mV Pk-Pk | ||
Number of Pins 7 | ||
Isolation Voltage 1kV dc | ||
Package Type SIP-6 | ||
Maximum Output Power 1.56W | ||
Depth 12mm | ||
Weight 4g | ||
Standards/Approvals CE, UL60950-1, EN 62368-1, EN62368-1, UKCA, cUL, C-UL, CSA, UL62368-1, RoHS | ||
Length 17mm | ||
Series MGF | ||
Width 8.5mm | ||
Efficiency 81% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- JP
The Cosel DC-DC converter is designed for PCB mount applications, providing reliable voltage regulation with an isolation voltage of DC1,500V. Its low profile and Compact design suit various technical requirements.
Wide input voltage range of DC18 to 36V with surge capability
High efficiency rating of 82% typical at full load
Built-in overcurrent protection supports reliable operation
Compact case size of 17.0 x 12.0 x 8.5mm optimises space
