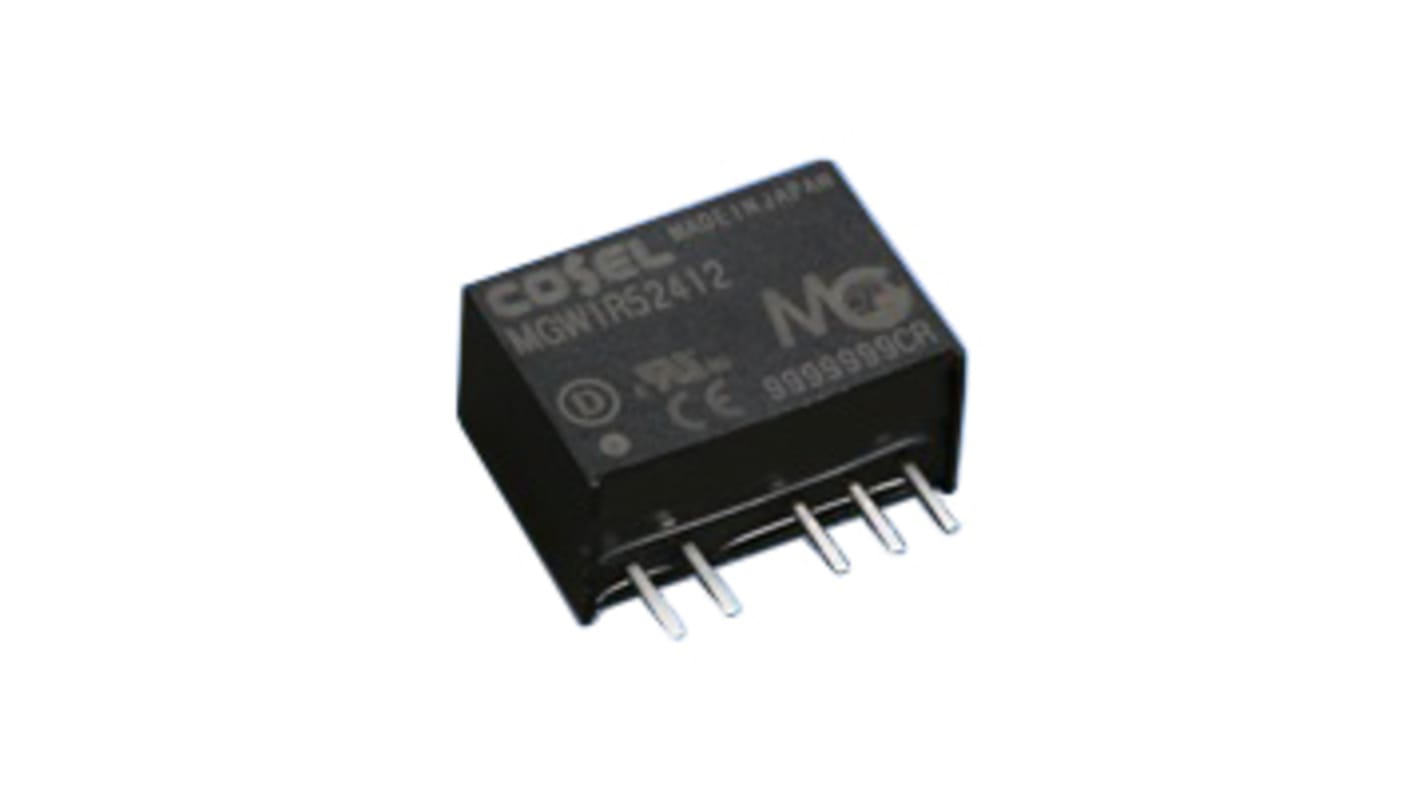

Cosel MGW DC/DC Converter, 15V dc/, 76V dc Input, 36V Input 3 W, PCB, 85 °C Max Temp 85 °C Min Temp SIP-6
- RS Stock No.:
- 171-4769
- Mfr. Part No.:
- MGW34815
- Brand:
- Cosel
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 10 units)*
£130.32
(exc. VAT)
£156.38
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £130.32 | £13.032 |
| 5 - 9 | £126.41 | £12.641 |
| 10 - 24 | £123.81 | £12.381 |
| 25 - 49 | £121.20 | £12.12 |
| 50 + | £118.59 | £11.859 |
*price indicative
- RS Stock No.:
- 171-4769
- Mfr. Part No.:
- MGW34815
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Output Voltage 1 | 15V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 36V | |
| Maximum Input Voltage | 76V dc | |
| Mount Type | PCB | |
| Number of Outputs | 2 | |
| Isolation Voltage | 1kV dc | |
| Package Type | SIP-6 | |
| Maximum Output Power | 3W | |
| Weight | 4g | |
| Depth | 12mm | |
| Standards/Approvals | UL 60950-1, cUL, EN 62368-1, RoHS | |
| Series | MGW | |
| Width | 8.5mm | |
| Length | 17mm | |
| Minimum Operating Temperature | 85°C | |
| Efficiency | 82% | |
| Maximum Operating Temperature | 85°C | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Output Voltage 1 15V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 36V | ||
Maximum Input Voltage 76V dc | ||
Mount Type PCB | ||
Number of Outputs 2 | ||
Isolation Voltage 1kV dc | ||
Package Type SIP-6 | ||
Maximum Output Power 3W | ||
Weight 4g | ||
Depth 12mm | ||
Standards/Approvals UL 60950-1, cUL, EN 62368-1, RoHS | ||
Series MGW | ||
Width 8.5mm | ||
Length 17mm | ||
Minimum Operating Temperature 85°C | ||
Efficiency 82% | ||
Maximum Operating Temperature 85°C | ||
- COO (Country of Origin):
- JP
Industry Standard
1"X1" (MGS15) , 1"X2" (MGS30)
High efficiency by synchronized rectification circuit (MGS10/MGS15/MGS30)
6 sided shield (MGS15/MGS30)
I/O isolation voltage DC1,500V (1 minute)
Built-in overcurrent protection circuits (recovers automatically)
Built-in overvoltage protection circuits (MGS30)
Built-in remote ON/OFF (MGS6/MGS10/MGS15/MGS30)
Output voltage adjustability by external variable resistor (MGS15/MGS30)
High reliability : not built-in aluminium and tantalum electrolytic capacitor
Industry Standard
I/O isolation voltage DC1,500V (1 minute)
Built-in overcurrent protection circuits (recovers automatically)
High reliability : not built-in aluminium and tantalum electrolytic capacitor
