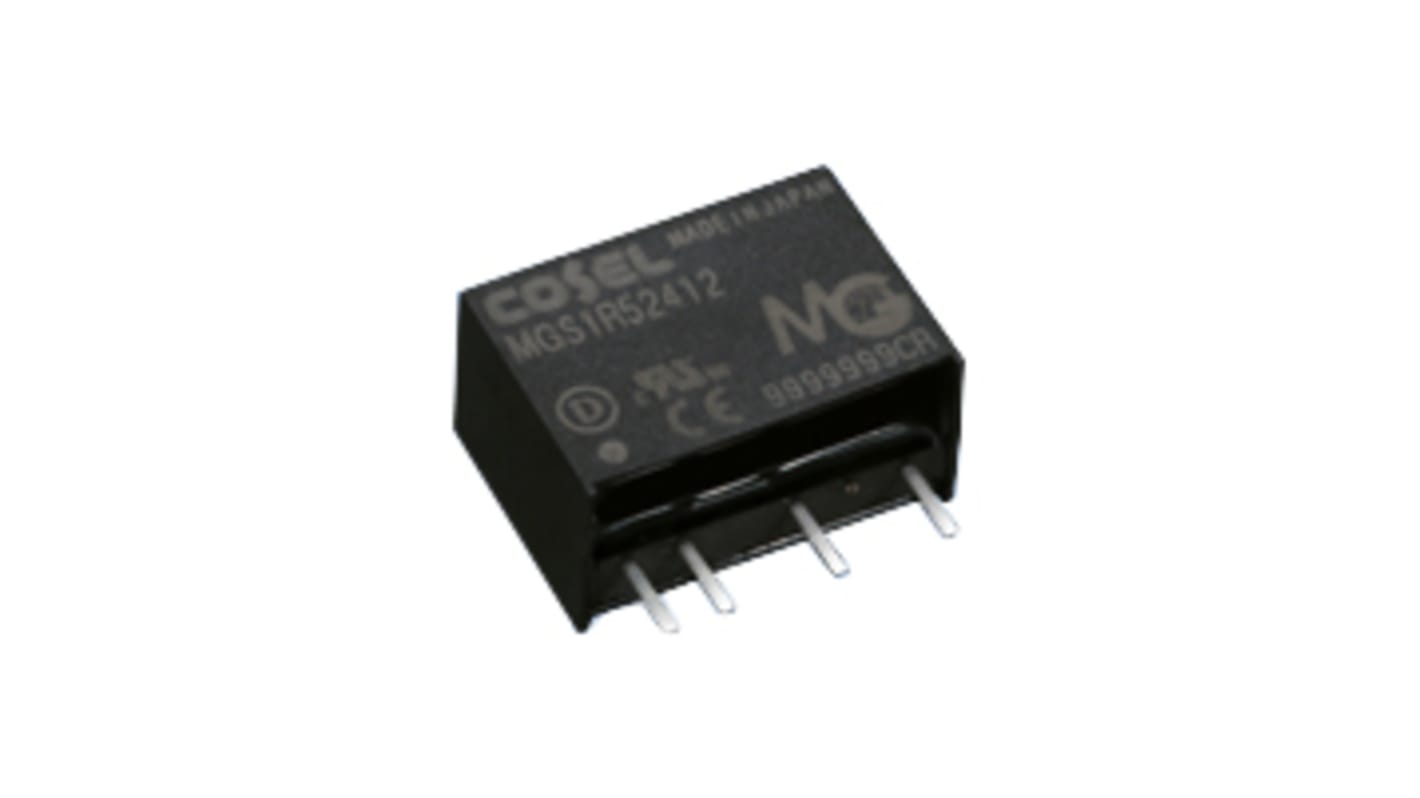

Cosel MGS DC/DC Converter, 5V dc/ 300 mA, 5V dc Input, 4.5V Input 1.5 W, PCB, 85 °C Max Temp -40 °C Min Temp, 4-Pin
- RS Stock No.:
- 171-4663
- Mfr. Part No.:
- MGS1R50505
- Brand:
- Cosel
Bulk discount available
Subtotal (1 tube of 10 units)*
£78.54
(exc. VAT)
£94.25
(inc. VAT)
Stock information currently inaccessible - Please check back later
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £78.54 | £7.854 |
| 5 - 9 | £76.19 | £7.619 |
| 10 - 24 | £74.62 | £7.462 |
| 25 - 49 | £73.04 | £7.304 |
| 50 + | £71.48 | £7.148 |
*price indicative
- RS Stock No.:
- 171-4663
- Mfr. Part No.:
- MGS1R50505
- Brand:
- Cosel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Cosel | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Maximum Input Voltage | 5V dc | |
| Minimum Input Voltage | 4.5V | |
| Output Current 1 | 300mA | |
| Output Current 2 | 0.3A | |
| Mount Type | PCB | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 4.90 to 5.21 V | |
| Ripple and Noise | 200mV Pk-Pk | |
| Isolation Voltage | 1kV dc | |
| Number of Pins | 4 | |
| Maximum Output Power | 1.5W | |
| Package Type | SIP-6 | |
| Weight | 4g | |
| Length | 17mm | |
| Depth | 12mm | |
| Standards/Approvals | UL60950-1, cUL, C-UL, CSA, RoHS, UL62368-1, UKCA, EN62368-1, EN 62368-1, CE | |
| Series | MGS | |
| Width | 8.5mm | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 82% | |
| Select all | ||
|---|---|---|
Brand Cosel | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Maximum Input Voltage 5V dc | ||
Minimum Input Voltage 4.5V | ||
Output Current 1 300mA | ||
Output Current 2 0.3A | ||
Mount Type PCB | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 4.90 to 5.21 V | ||
Ripple and Noise 200mV Pk-Pk | ||
Isolation Voltage 1kV dc | ||
Number of Pins 4 | ||
Maximum Output Power 1.5W | ||
Package Type SIP-6 | ||
Weight 4g | ||
Length 17mm | ||
Depth 12mm | ||
Standards/Approvals UL60950-1, cUL, C-UL, CSA, RoHS, UL62368-1, UKCA, EN62368-1, EN 62368-1, CE | ||
Series MGS | ||
Width 8.5mm | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Efficiency 82% | ||
Industry Standard
1"X1" (MGS15) , 1"X2" (MGS30)
High efficiency by synchronized rectification circuit (MGS10/MGS15/MGS30)
6 sided shield (MGS15/MGS30)
I/O isolation voltage DC1,500V (1 minute)
Built-in overcurrent protection circuits (recovers automatically)
Built-in overvoltage protection circuits (MGS30)
Built-in remote ON/OFF (MGS6/MGS10/MGS15/MGS30)
Output voltage adjustability by external variable resistor (MGS15/MGS30)
High reliability : not built-in aluminium and tantalum electrolytic capacitor
Industry Standard
I/O isolation voltage DC1,500V (1 minute)
Built-in overcurrent protection circuits (recovers automatically)
High reliability : not built-in aluminium and tantalum electrolytic capacitor
