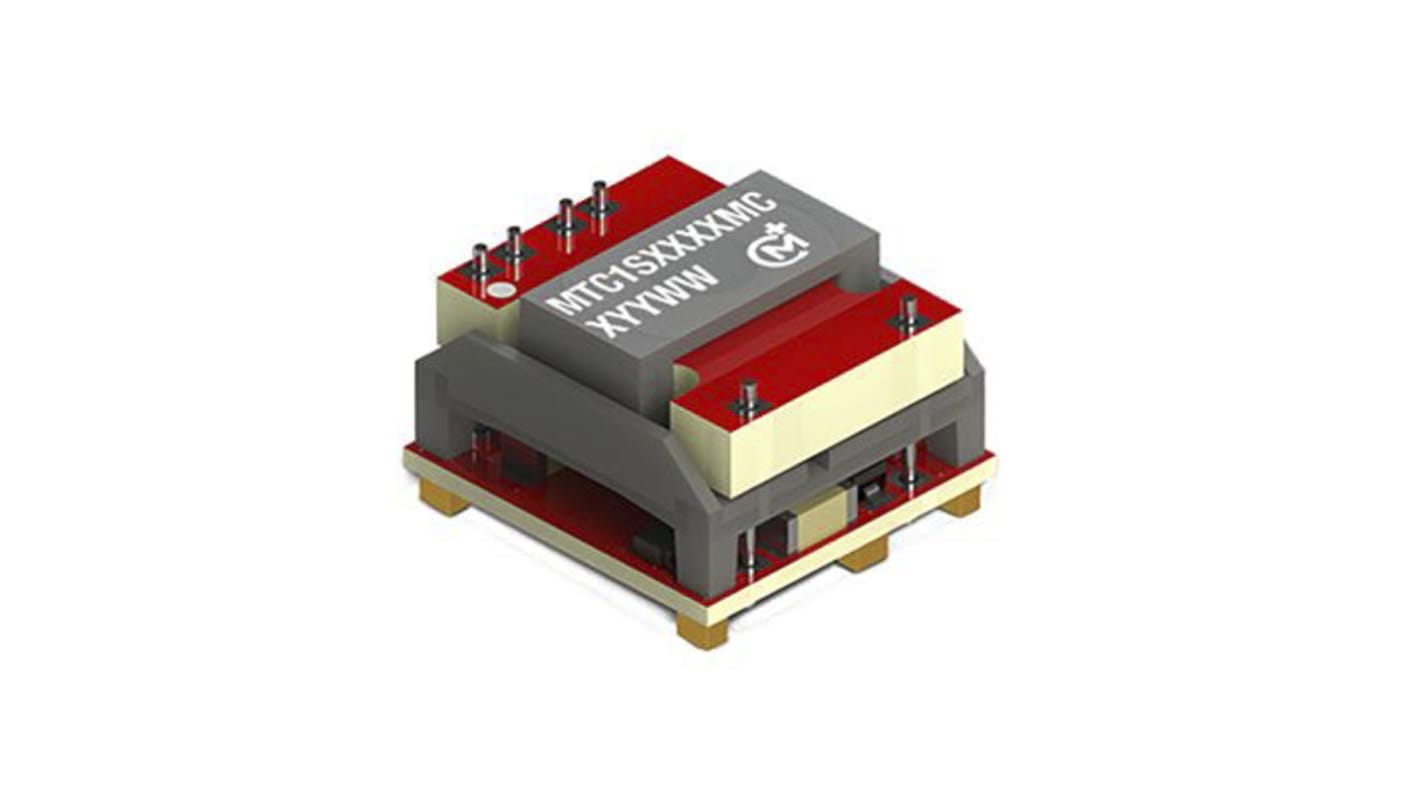

Murata Power Solutions MTC1 DC-DC Converter, 5V dc/ 200mA Output, 9 → 18 V dc Input, 1W, Surface Mount, +100°C

View all DC-DC Converters
Bulk discount available

Subtotal (1 reel of 30 units)*

£220.95

(exc. VAT)

£265.14

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 21 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per unit*
1 - 4£220.95£7.365
5 - 9£214.32£7.144
10 - 24£207.70£6.923
25 - 49£201.07£6.702
50 +£194.44£6.481

*price indicative

RS Stock No.:
167-6043
Mfr. Part No.:
MTC1S1205MC-R7
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Output Voltage

5V dc

Input Voltage Range

9 → 18 V dc

Power Rating

1W

Input Voltage Nominal

12 V dc

Output Current

200mA

Mounting Type

Surface Mount

Isolated

Yes

Number of Outputs

1

Isolation Voltage

3kV ac

Width

14.22mm

Length

14.99mm

Depth

11.23mm

Series

MTC1

Load Regulation

±0.5%

Efficiency

78.5%

Maximum Temperature

+100°C

Minimum Temperature

-40°C

Standards Met

ANSI/AAMI ES60601-1 Standard, RoHS Compliant, UL 60950

COO (Country of Origin):
GB

Murata Isolated 1W Single Output DC/DC Converter - MTC1 Series


The Murata MTC1 is a series of 1W, regulated, single output DC/DC converters, with nominal input voltages of 12 or 24 VDC, accommodating a 2:1 input range around the selected nominal voltage. These surface mount DC-DC converters comprises six single output models providing 3.3, 5 or 12 Vdc for both the 12 and 24 Vdc nominal inputs. No additional regulation components are required since the MTC1 output is fully regulated within +/- 0.5% of stated output. This series of isolated DC-DC converters features a voltage trim pin, which allows adjustment of the output voltage by +/- 10% to suit any special voltage requirements. A remote on/off pin provides the ability to disable the output for application power saving. The MTC1 isolated DC-DC converters are suitable for use in a wide range of medical and healthcare applications as well as industrial, telecommunications, battery powered systems, and process automation.

3kVac isolation test voltage
Output Voltage Trim
Remote on/off pin
No electrolytic capacitors
Operating temperature range -40°C to 105°C
2:1 Input Range

Approvals

UL 60950, ANSI/AAMI ES60601-1, 2 MOOPs pending
