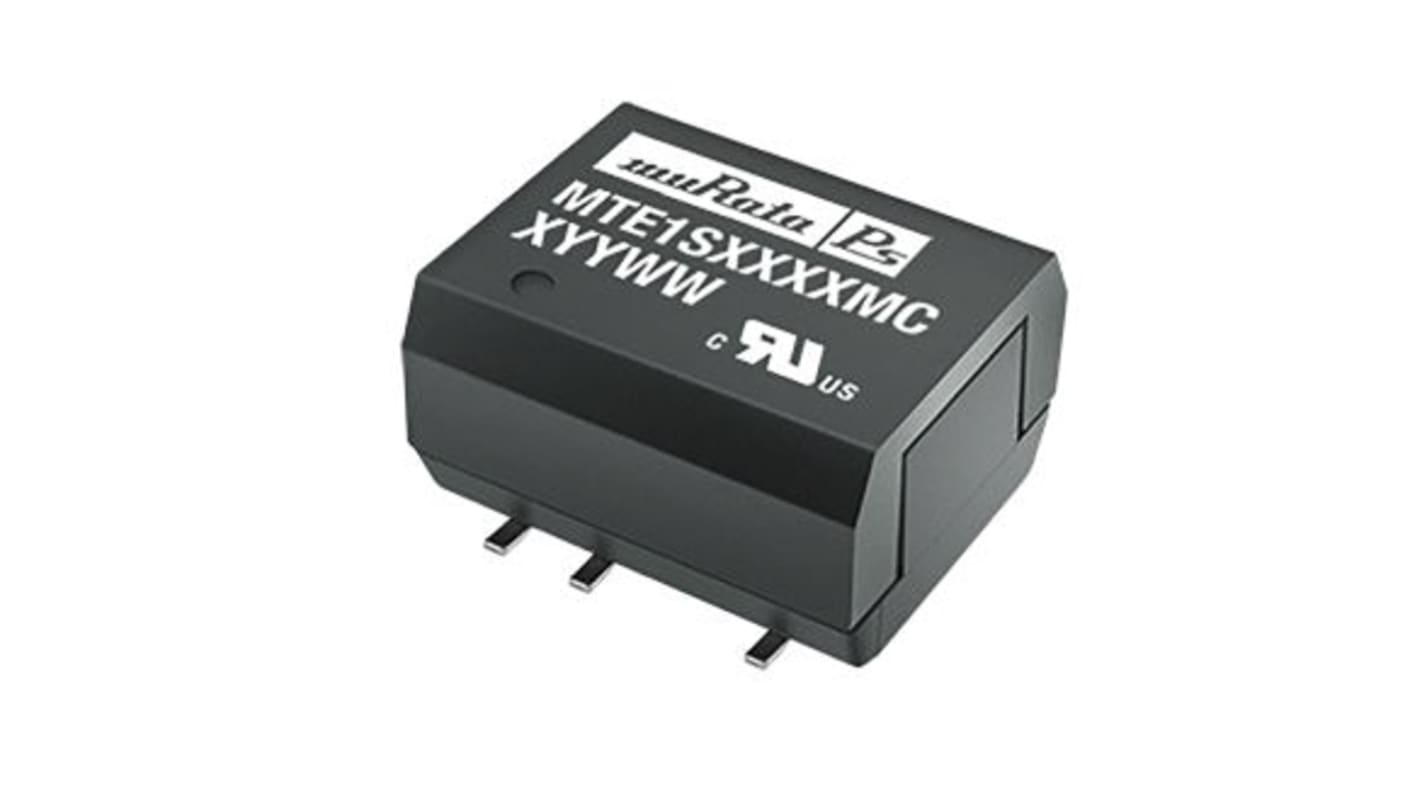

Murata Power Solutions DC/DC Converter, 13.5V dc, 16.5 V dc/, Surface Mount, -40 °C Max Temp SMD
- RS Stock No.:
- 167-6038
- Mfr. Part No.:
- MTE1S1509MC
- Brand:
- Murata Power Solutions
Bulk discount available
Subtotal (1 tube of 30 units)*
£168.47
(exc. VAT)
£202.16
(inc. VAT)
Stock information currently inaccessible - Please check back later
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £168.47 | £5.616 |
| 5 - 9 | £163.41 | £5.447 |
| 10 - 24 | £158.35 | £5.278 |
| 25 - 49 | £153.29 | £5.11 |
| 50 + | £148.25 | £4.942 |
*price indicative
- RS Stock No.:
- 167-6038
- Mfr. Part No.:
- MTE1S1509MC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage 1 | 13.5, 16.5V dc | |
| Product Type | DC/DC Converter | |
| Mount Type | Surface Mount | |
| Number of Outputs | 1 | |
| Isolation Voltage | 1kV dc | |
| Package Type | SMD | |
| Length | 12.7mm | |
| Depth | 7.05mm | |
| Efficiency | 86% | |
| Maximum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 1 13.5, 16.5V dc | ||
Product Type DC/DC Converter | ||
Mount Type Surface Mount | ||
Number of Outputs 1 | ||
Isolation Voltage 1kV dc | ||
Package Type SMD | ||
Length 12.7mm | ||
Depth 7.05mm | ||
Efficiency 86% | ||
Maximum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Murata 1W SMD Single Output Unregulated Isolated DC-DC Converter - SMD MTE1 Seri
The Murata Power Solutions MTE1 is a series of isolated, 1 Watt, single output, DC-DC converters. Suitable for a broad range of industrial and automation applications, the MTE1 offers 86% typical efficiency. These DC-DC converters consume less power and achieve higher reliability rates, contributing to better overall product and system reliability. This series of DC-DC converters also has a load regulation that is typically 5% better than similar models available in the industry. Input voltage options of the MTE1 series are the 5 most popular nominal input voltages of 3.3, 5, 12, 15, or 24 VDC input. Output voltages include 3.3, 5, 9, 12, or 15 VDC. Full load capability is provided across the full industrial temperature range of -40 degrees C to +85 degrees C.
The MTE1 series has the highest moisture sensitivity level rating, MSL 1, and is compatible with a peak reflow solder temperature of 245 degrees C as per J-STD-020D. Packaged to match an industry standard footprint, the MTE1 series can be used as a pin-compatible replacement for older designs without the need to re-engineer an application’s PCB layout.
Single isolated output
1kVDC Isolation
Typical efficiency 86%
Wide temperature performance at full 1 Watt load, –40°C to 85°C
3.3V, 5V, 12V, 15V & 24V Input
3.3V, 5V, 9V, 12V & 15V Output
Internal SMD construction
Toroidal magnetics
Approvals
UL 60950
