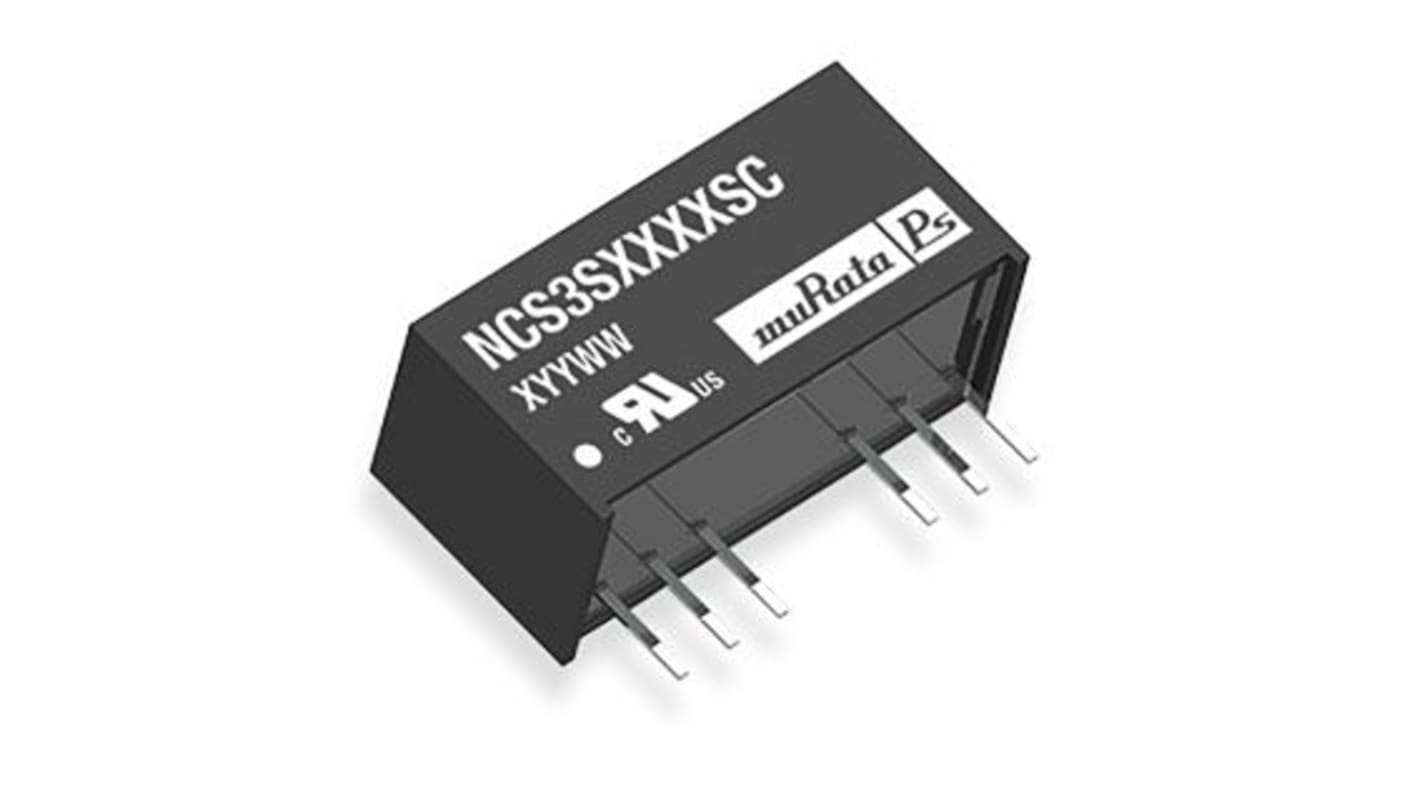

Murata Power Solutions NCS3 DC-DC Converter, 5V dc/ 600mA Output, 9 → 36 V dc Input, 3W, Through Hole, +85°C Max

RS Stock No.:: 167-6028
Mfr. Part No.:: NCS3S1205SC
Brand:: Murata Power Solutions

Murata Power Solutions NCS3 DC-DC Converter, 5V dc/ 600mA Output, 9 → 36 V dc Input, 3W, Through Hole, +85°C Max

1 In stock - FREE next working day delivery available

Price 1 Tube of 23

£229.45

(exc. VAT)

£275.34

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£229.45	£9.976
5 - 9	£222.57	£9.677
10 - 24	£215.68	£9.377
25 - 49	£208.80	£9.078
50 +	£201.92	£8.779

*price indicative

RS Stock No.:: 167-6028
Mfr. Part No.:: NCS3S1205SC
Brand:: Murata Power Solutions

Datasheet

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	9 → 36 V dc
Power Rating	3W
Input Voltage Nominal	12 V dc
Output Current	600mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Output Voltage Adjustment Range	±2%
Isolation Voltage	1.5kV dc
Length	21.95mm
Width	9.45mm
Depth	11.25mm
Series	NCS3
Load Regulation	±1%
Standards Met	cULus Certified, RoHS Compliant
Maximum Temperature	+85°C
Efficiency	82%
Minimum Temperature	-40°C

Murata Power Solutions NCS3 DC-DC Converter, 5V dc/ 600mA Output, 9 → 36 V dc Input, 3W, Through Hole, +85°C Max

Murata 3W SIP Single Output Regulated Isolated DC-DC Converter - NCS3 Series
