Murata Power Solutions NCS3 DC-DC Converter, 12V dc/ 250mA Output, 18 → 75 V dc Input, 3W, Through Hole, +85°C

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£11.44

(exc. VAT)

£13.73

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 37 unit(s) ready to ship
  • Plus 999,999,962 unit(s) shipping from 20 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£11.44
5 - 9£11.10
10 - 24£10.75
25 - 49£10.41
50 +£10.07

*price indicative

RS Stock No.:
876-2466
Mfr. Part No.:
NCS3S4812SC
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Output Voltage

12V dc

Input Voltage Range

18 → 75 V dc

Power Rating

3W

Input Voltage Nominal

48 V dc

Output Current

250mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

1

Output Voltage Adjustment Range

±1.5%

Isolation Voltage

1.5kV dc

Length

21.95mm

Width

9.45mm

Depth

11.25mm

Series

NCS3

Load Regulation

±1%

Minimum Temperature

-40°C

Efficiency

81%

Standards Met

cULus Certified, RoHS Compliant

Maximum Temperature

+85°C

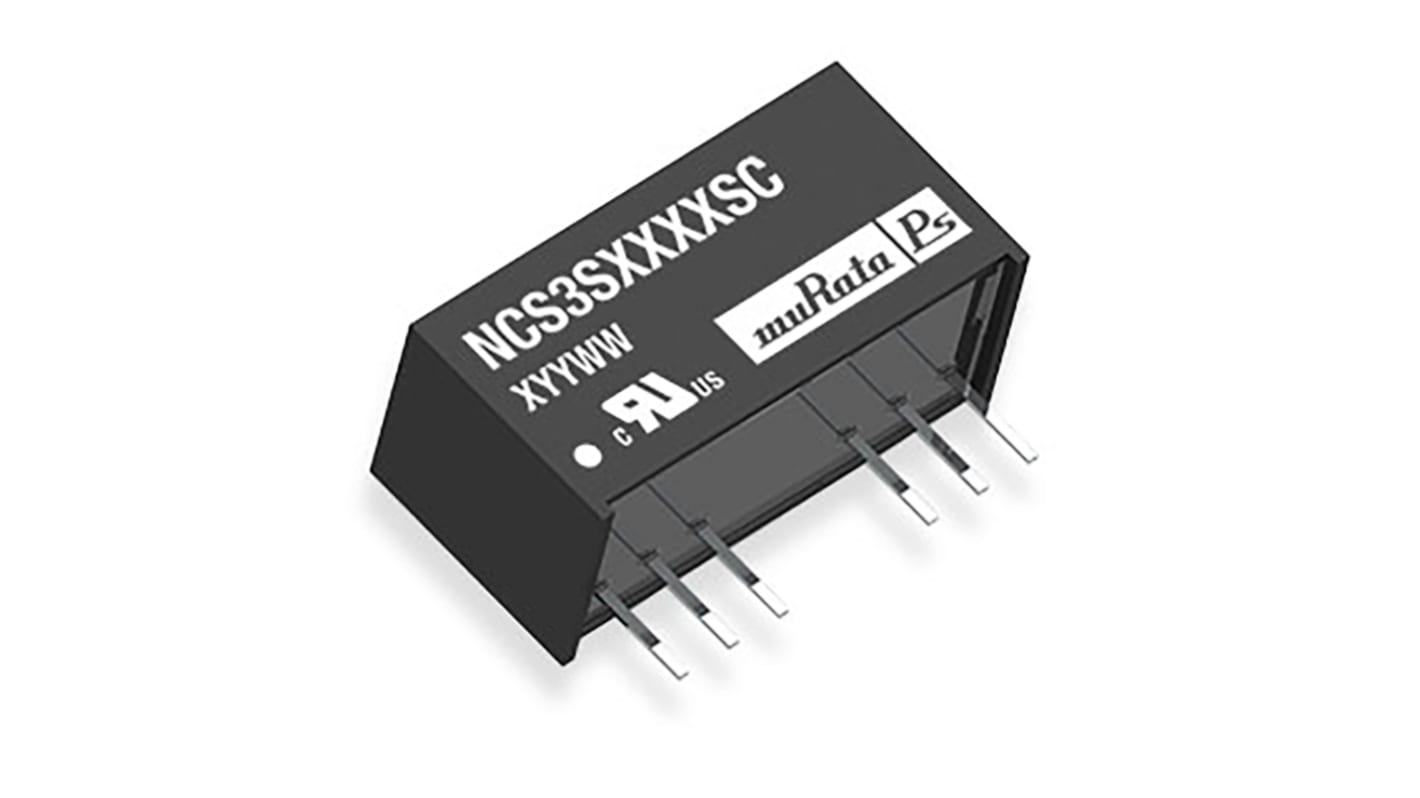

Murata 3W SIP Single Output Regulated Isolated DC-DC Converter - NCS3 Series


The Murata PS NCS3 series of DC/DC converters offers single output voltage from input voltage ranges of 9-36V and 18-75V. This power converter is housed in an industry standard package with a standard pinout. The DC/DC converter is encapsulated for superior thermal performance. Applications of the NCS3 isolated DC-DC power supplies include telecommunications, battery powered systems, process control and distributed power systems.

4:1 Wide range voltage input
Operating temperature range -40°C to 85°C with derating
1.5 k Vdc Isolation
3.3V, 5V, 12 and 15V outputs
No electrolytic capacitors
Continuous short circuit protection

Approvals

UL60950


Murata Power Solutions - SIP
