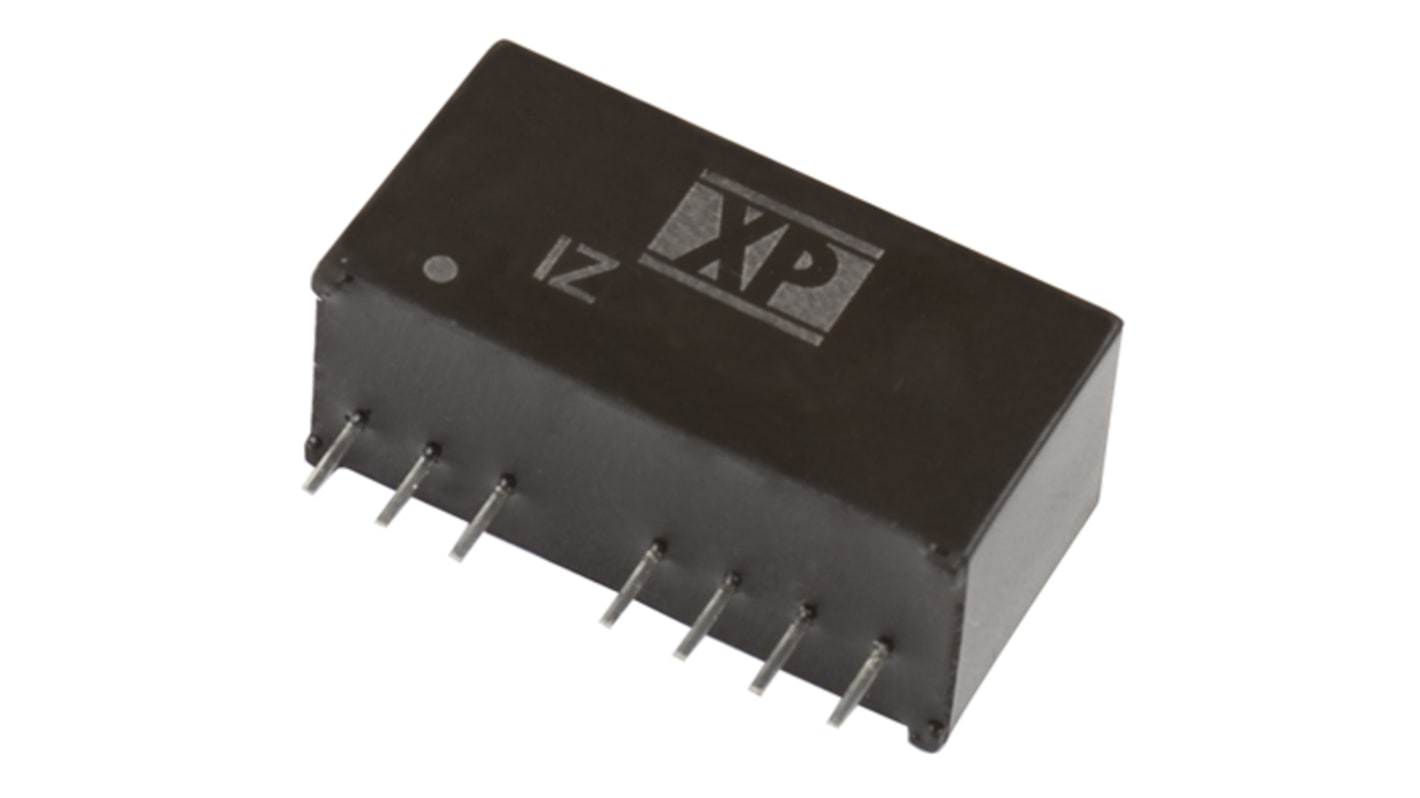

XP Power IZ DC/DC Converter, 3.3V dc/ 700 mA, 72V dc Input, 36V Input 3 W, Through Hole, 100 °C Max Temp -40 °C Min Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 20 units)*

£222.72

(exc. VAT)

£267.26

(inc. VAT)

Add to Basket
Select or type quantity
Last RS stock
  • Final 1 unit(s), ready to ship

Tube(s)
Per Tube
Per unit*
1 - 4£222.72£11.136
5 - 9£216.03£10.802
10 - 24£209.35£10.468
25 - 49£202.67£10.134
50 +£195.99£9.80

*price indicative

RS Stock No.:
167-3137
Mfr. Part No.:
IZ4803SA
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage 1

3.3V dc

Product Type

DC/DC Converter

Maximum Input Voltage

72V dc

Minimum Input Voltage

36V

Output Current 1

700mA

Mount Type

Through Hole

Number of Outputs

1

MTBF

1340000h

Isolation Voltage

1.6kV dc

Maximum Output Power

3W

Package Type

SIP

Length

21.85mm

Standards/Approvals

No

Depth

11.1mm

Width

9.2mm

Series

IZ

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

100°C

Efficiency

75%

COO (Country of Origin):
TW

XP Power - IZ Series of Isolated DC-DC Converters


The IZ series from XP Power offers a highly reliable range of regulated single and dual output, 3 W, isolated DC-DC converters. The series features 1600 VDC in isolation and has been designed in an industry standard SIP package. These compact DC-DC converters also attribute a 2:1 input range, continuous short circuit protection and a wide -40 °C to +100 °C operating temperature range, making them the perfect choice for a host of commercial and industrial applications.

3 W, Isolated DC-DC converters

1600 VDC in isolation

Regulated single and dual output

2:1 Input range

SIP package

Remote on/off

Wide -40 °C to +100 °C operating temperature range

Continuous short circuit protection

XP Power Isolated DC-DC Converters
