XP Power JCE DC/DC Converter, 3.3V dc/ 0.9 A, 75V dc Input, 36V Input 6 W, Through Hole, 100 °C Max Temp -40 °C Min

View all DC-DC Converters
Unavailable
RS will no longer stock this product.
RS Stock No.:
167-2995
Mfr. Part No.:
JCE0648D03
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Product Type

DC/DC Converter

Output Voltage 1

3.3V dc

Maximum Input Voltage

75V dc

Minimum Input Voltage

36V

Output Current 1

0.9A

Mount Type

Through Hole

Input Ratio

2:1

MTBF

800000h

Number of Outputs

2

Output Voltage Adjustment Range

±3.366 V dc

Isolation Voltage

1.5kV dc

Number of Pins

24

Maximum Output Power

6W

Package Type

DIP

Series

JCE

Standards/Approvals

RoHS

Length

31.75mm

Depth

10.4mm

Width

20.32mm

Maximum Operating Temperature

100°C

Minimum Operating Temperature

-40°C

Efficiency

78%

COO (Country of Origin):
TW

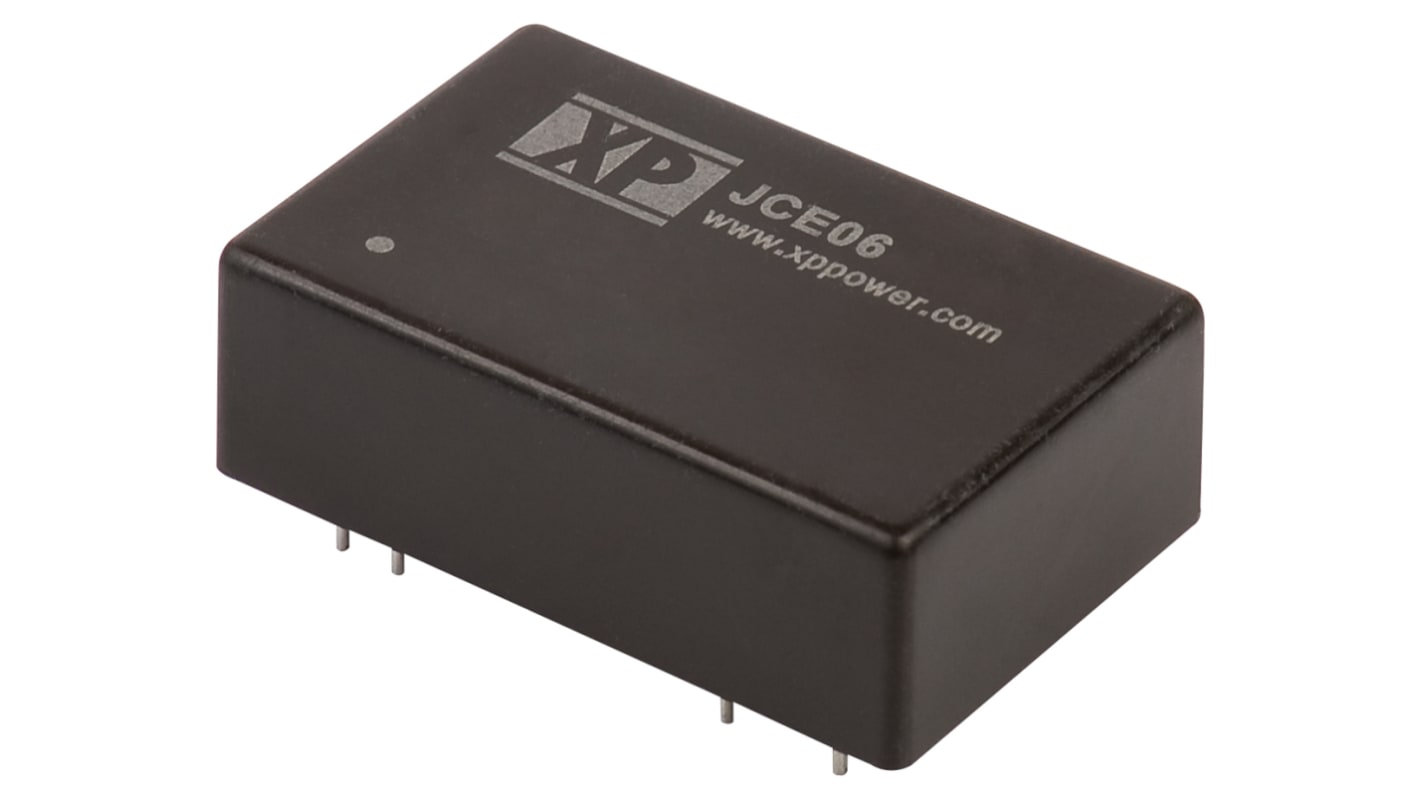

XP Power - JCE Series of 6 W Isolated DC-DC Converters


The JCE series from XP Power offers a highly reliable range of single and dual output, 6 W, isolated DC-DC converters. The range attributes 1500 VDC in isolation, a 2:1 input range and a high efficiency of up to 84%. The series is available in an industry standard DIP-24 plastic package and is completely convection-cooled.

6 W, isolated DC-DC converters

DIP-24 plastic package

2:1 input range

1500 VDC in isolation, 3000 VDC option available

Single and dual output

High efficiency up to 84%

Convection-cooled

Optional metal case

Board mount

-40 °C to +100 °C Operating temperature

XP Power - Isolated DC-DC Converters
