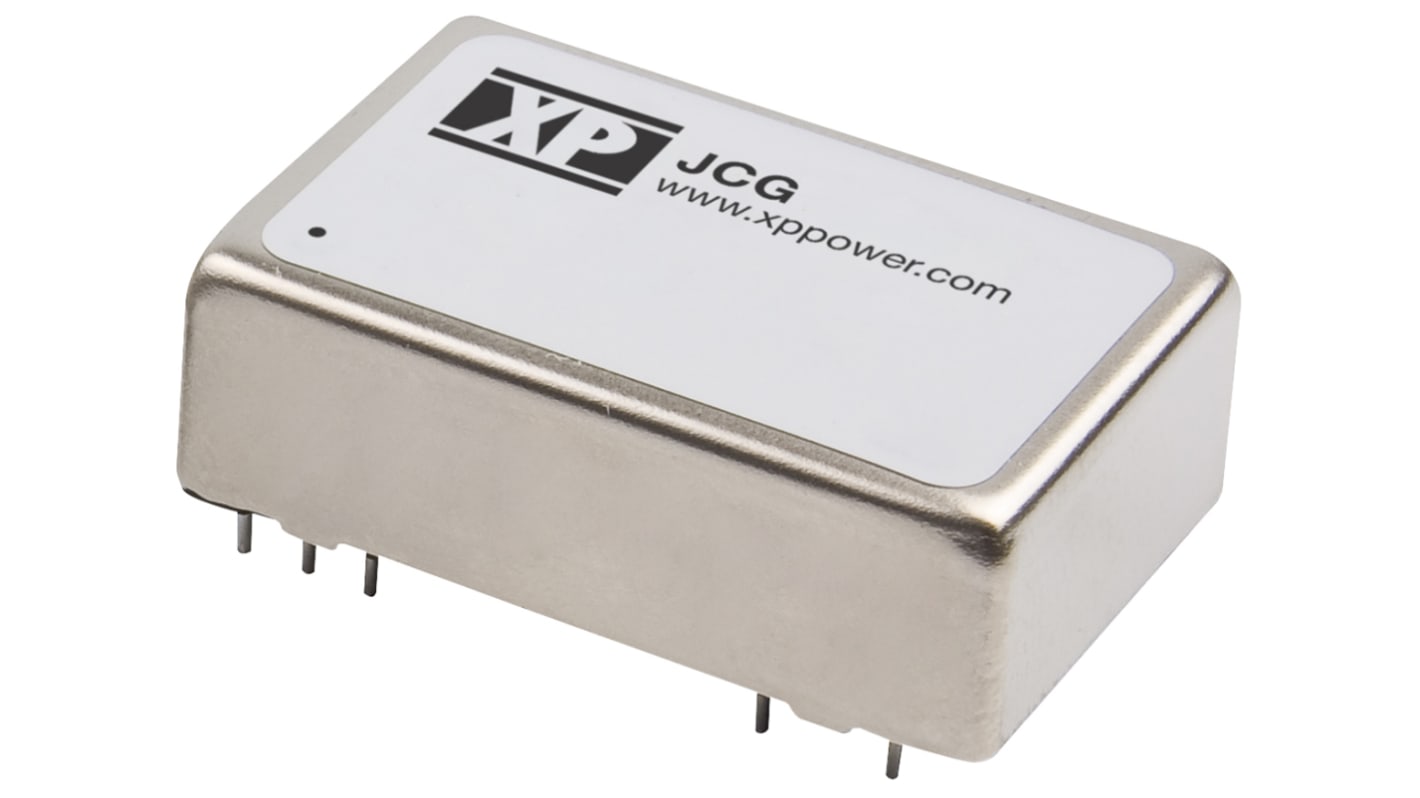

XP Power JCG DC-DC Converter, 5V dc/ 3A Output, 18 → 36 V dc Input, 15W, Through Hole, +100°C Max Temp -40°C Min
- RS Stock No.:
- 167-2850
- Mfr. Part No.:
- JCG1524S05
- Brand:
- XP Power
Available to back order for despatch 08/10/2024
Price 1 Tube of 10
£301.35
(exc. VAT)
£361.62
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £301.35 | £30.135 |
5 - 9 | £292.31 | £29.231 |
10 - 24 | £283.27 | £28.327 |
25 - 49 | £274.23 | £27.423 |
50 + | £265.19 | £26.519 |
*price indicative
- RS Stock No.:
- 167-2850
- Mfr. Part No.:
- JCG1524S05
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - JCG Series of 12/15 W Isolated DC-DC Converters
The JCG series from XP Power offers a highly reliable range of single and dual output, 12/15 W, isolated DC-DC converters. This compact range attributes 1600 VDC in isolation, a 2:1 input range and high power density. The series is available in an industry standard package, features remote on/off settings and has a high efficiency of up to 91%.
12/15 W, isolated DC-DC converters
Compact, industry standard package
2:1 input range
1600 VDC in isolation
Single and dual output
High efficiency up to 91%
Board mount
-40 °C to +100 °C Operating temperature
Compact, industry standard package
2:1 input range
1600 VDC in isolation
Single and dual output
High efficiency up to 91%
Board mount
-40 °C to +100 °C Operating temperature
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 18 → 36 V dc |
Power Rating | 15W |
Input Voltage Nominal | 24 V dc |
Output Current | 3A |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | DIP 24 |
Isolation Voltage | 1.6kV dc |
Width | 20.32mm |
Length | 31.75mm |
Depth | 10.16mm |
Series | JCG |
Load Regulation | ±0.5% |
Standards Met | EN 61000-4-2, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, MIL-HDBK-217F |
Minimum Temperature | -40°C |
Maximum Temperature | +100°C |
