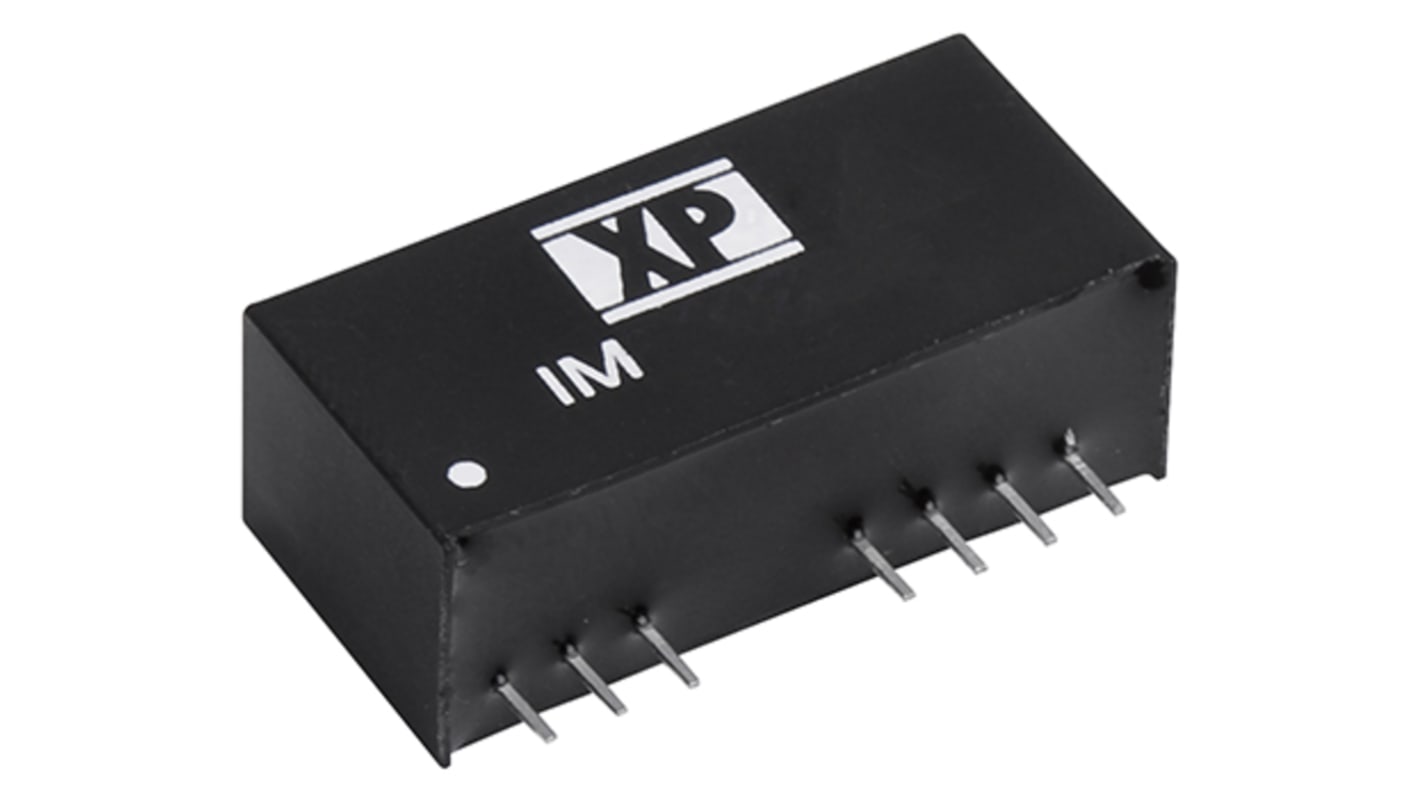

XP Power IM DC-DC Converter, ±15V dc/ ±65mA Output, 9 → 36 V dc Input, 2W, Through Hole, +100°C Max Temp -40°C
- RS Stock No.:
- 167-2467
- Mfr. Part No.:
- IM2415S
- Brand:
- XP Power
Bulk discount available
Subtotal (1 tube of 10 units)*
£116.10
(exc. VAT)
£139.32
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £116.10 | £11.61 |
5 - 9 | £112.61 | £11.261 |
10 - 24 | £109.14 | £10.914 |
25 - 49 | £105.65 | £10.565 |
50 + | £102.17 | £10.217 |
*price indicative
- RS Stock No.:
- 167-2467
- Mfr. Part No.:
- IM2415S
- Brand:
- XP Power
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | XP Power | |
Output Voltage | ±15V dc | |
Input Voltage Range | 9 → 36 V dc | |
Power Rating | 2W | |
Input Voltage Nominal | 24 V dc | |
Output Current | ±65mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 2 | |
Package | SIP | |
Isolation Voltage | 1.5kV dc | |
Width | 9.2mm | |
Depth | 12.5mm | |
Length | 26mm | |
Series | IM | |
Load Regulation | ±0.5% | |
Efficiency | 82% | |
Minimum Temperature | -40°C | |
Maximum Temperature | +100°C | |
Select all | ||
---|---|---|
Brand XP Power | ||
Output Voltage ±15V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 24 V dc | ||
Output Current ±65mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 2 | ||
Package SIP | ||
Isolation Voltage 1.5kV dc | ||
Width 9.2mm | ||
Depth 12.5mm | ||
Length 26mm | ||
Series IM | ||
Load Regulation ±0.5% | ||
Efficiency 82% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +100°C | ||
