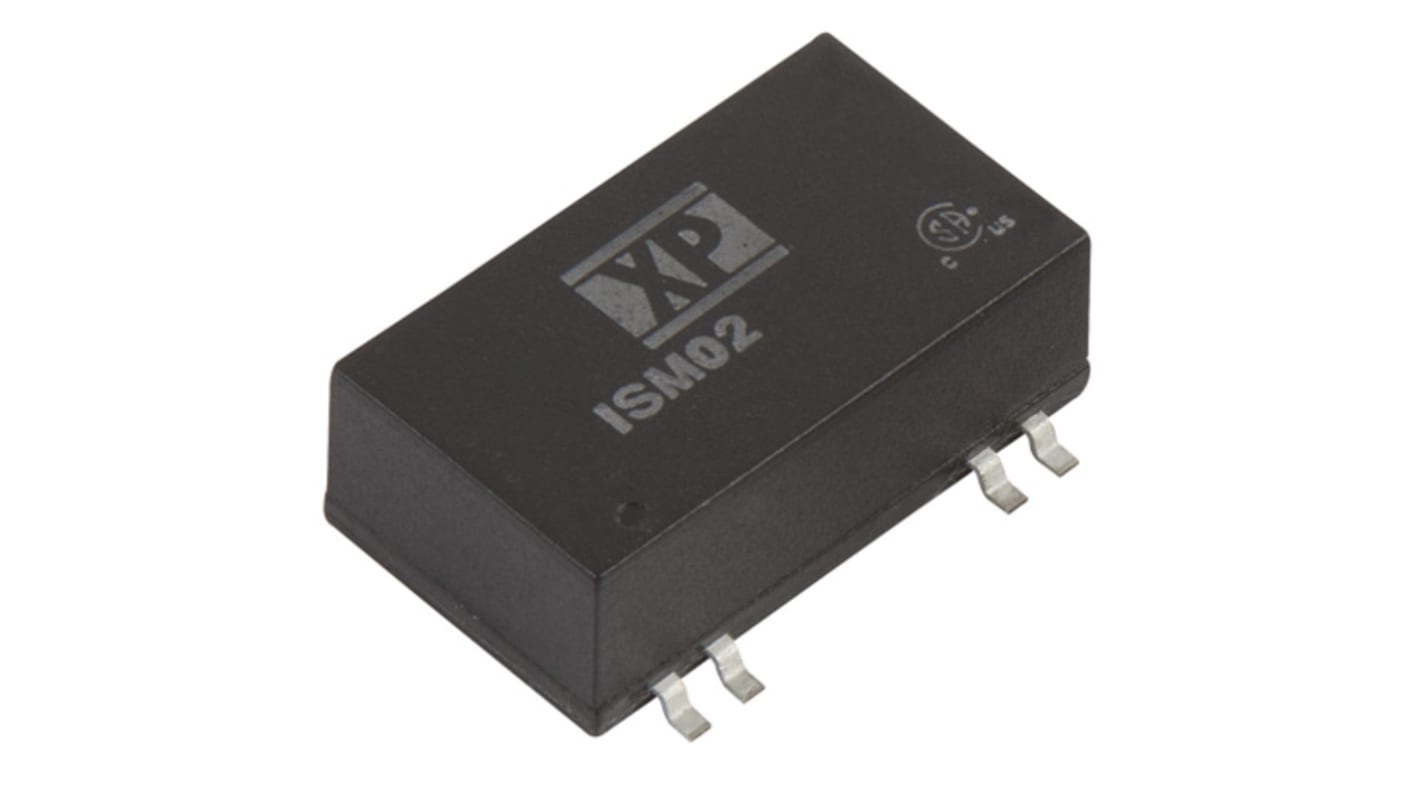

XP Power ISM02 DC-DC Converter, 12V dc/ 165mA Output, 10.8 → 13.2 V dc Input, 2W, Surface Mount, +105°C Max Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£220.23

(exc. VAT)

£264.28

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 999,999,999 unit(s) shipping from 21 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 - 4£220.23£22.023
5 - 9£213.62£21.362
10 - 24£207.02£20.702
25 - 49£200.42£20.042
50 +£193.79£19.379

*price indicative

RS Stock No.:
167-2081
Mfr. Part No.:
ISM0212S12
Brand:
XP Power
Find similar products by selecting one or more attributes.
Select all

Brand

XP Power

Output Voltage

12V dc

Input Voltage Range

10.8 → 13.2 V dc

Power Rating

2W

Input Voltage Nominal

12 V dc

Output Current

165mA

Mounting Type

Surface Mount

Isolated

Yes

Number of Outputs

1

Package

SMD

Isolation Voltage

4kV ac

Depth

8.75mm

Width

13.7mm

Length

24mm

Series

ISM02

Railway Approved

No

Load Regulation

Maximum of 10%

Efficiency

66%

Minimum Temperature

-25°C

Medical Approved

Yes

Standards Met

ANSI/AAMI ES60601-1, EN60601-1, IEC60601-1, IEC60950-1, MIL-HDBK-217F, UL 94 V-0, UL/cUL 60950-1

Maximum Temperature

+105°C

COO (Country of Origin):
TW

XP Power - ISM Series of Isolated DC-DC Converter


XP Power ISM series of DC-DC Converters provide the user with a reliable & robust product suitable for use within a wide variety of applications. The ISM series is available as a single or dual output within a compact SMD packaged converter. The series has been designed to adhere to international medical safety approvals.


Features and Benefits

International medical safety approved.
Single & dual output variations available.
Compact SMD package.
1x MOPP @ 300 V ac.
Wide operating temperature range of -25°C to +105°C.
