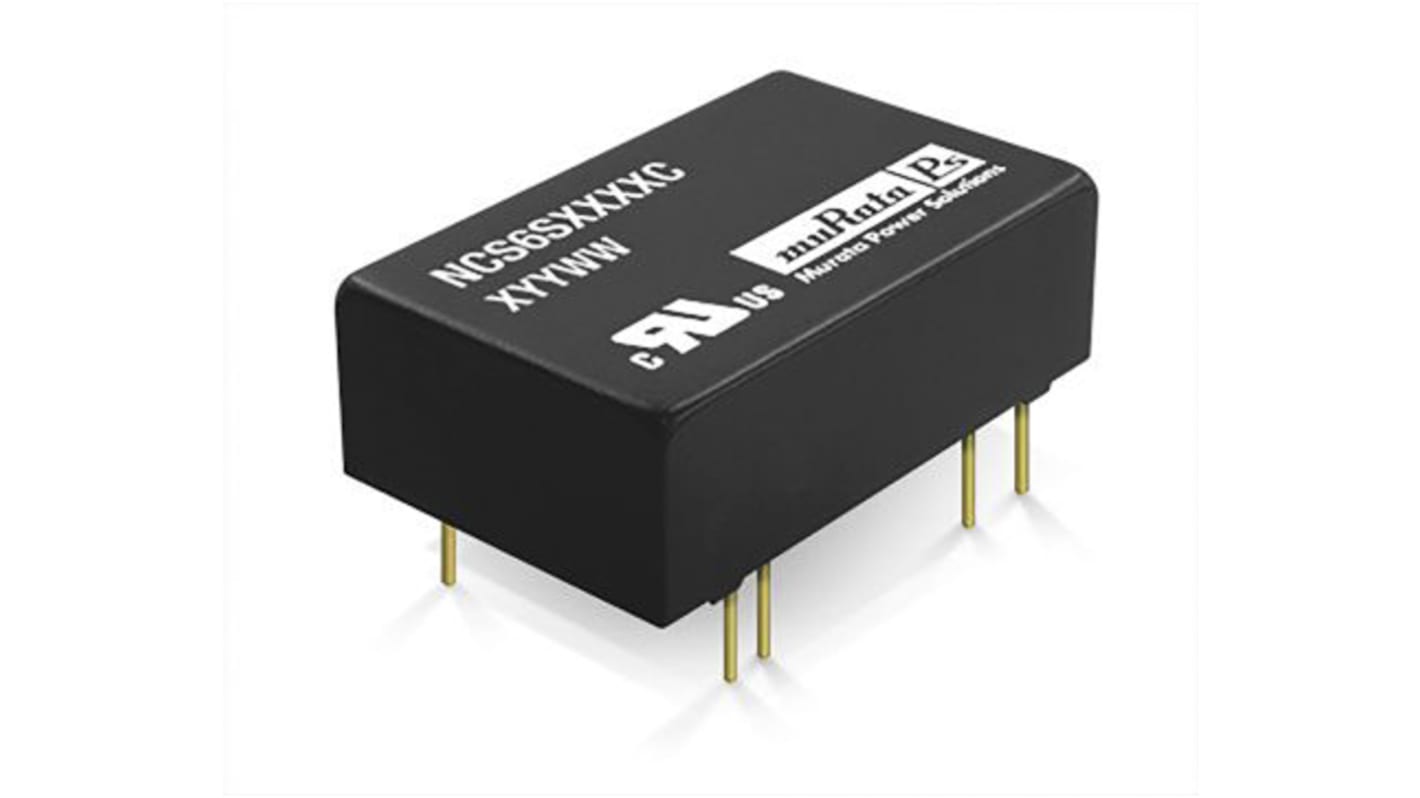

Murata Power Solutions NCS6 DC/DC Converter, 12V dc/ 500 mA, 36V dc Input, 9V Input 2 W, Through Hole, 85 °C Max Temp
- RS Stock No.:
- 167-0917
- Mfr. Part No.:
- NCS6S1212C
- Brand:
- Murata Power Solutions
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 15 units)*
£283.42
(exc. VAT)
£340.10
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 14 December 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £283.42 | £18.895 |
| 5 - 9 | £274.92 | £18.328 |
| 10 - 24 | £266.41 | £17.761 |
| 25 - 49 | £257.90 | £17.193 |
| 50 + | £249.40 | £16.627 |
*price indicative
- RS Stock No.:
- 167-0917
- Mfr. Part No.:
- NCS6S1212C
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 9V | |
| Output Current 1 | 500mA | |
| Output Current 2 | 0.5mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 435567h | |
| Output Voltage Adjustment Range | 9/36 V | |
| Ripple and Noise | 30mV Pk-Pk | |
| Isolation Voltage | 1.5kV dc | |
| Number of Pins | 4 | |
| Maximum Output Power | 2W | |
| Package Type | Encapsulated | |
| Length | 32mm | |
| Depth | 10.51mm | |
| Series | NCS6 | |
| Standards/Approvals | UR, RoHS | |
| Weight | 17g | |
| Width | 10.15mm | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 86% | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 9V | ||
Output Current 1 500mA | ||
Output Current 2 0.5mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 435567h | ||
Output Voltage Adjustment Range 9/36 V | ||
Ripple and Noise 30mV Pk-Pk | ||
Isolation Voltage 1.5kV dc | ||
Number of Pins 4 | ||
Maximum Output Power 2W | ||
Package Type Encapsulated | ||
Length 32mm | ||
Depth 10.51mm | ||
Series NCS6 | ||
Standards/Approvals UR, RoHS | ||
Weight 17g | ||
Width 10.15mm | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 86% | ||
- COO (Country of Origin):
- CN
Murata 6W DIP Single Output Regulated Isolated DC-DC Converter - NCS6 Series
Isolated DIP24 module
1.5kVdc isolation
Fully encapsulated
UL 94V-0 package material
4:1 Wide range voltage input
Under voltage lock out
Current fold back
Murata Power Solutions - DIP
