Murata Power Solutions NMH DC/DC Converter, 15V dc/ 67 mA, 26.4V dc Input, 21.6V Input 2 W, Through Hole, 85 °C Max Temp

Get a bulk buy discount

Add 5 more to save 2%

View bulk pricing options

Subtotal (1 tube of 25 units)*

£299.60

(exc. VAT)

£359.52

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • 1 unit(s) shipping from 19 March 2027
  • Plus 1 unit(s) shipping from 15 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
Saving
1 - 4£299.60£11.984-
5 - 9£290.62£11.6252%
10 - 24£281.62£11.2656%
25 - 49£272.63£10.9059%
50 +£263.64£10.54612%

*price indicative

RS Stock No.:
167-0756
Mfr. Part No.:
NMH2415SC
Brand:
Murata Power Solutions
Find similar products by selecting one or more attributes.
Select all

Brand

Murata Power Solutions

Product Type

DC/DC Converter

Output Voltage 1

15V dc

Maximum Input Voltage

26.4V dc

Minimum Input Voltage

21.6V

Output Current 1

67mA

Output Current 2

67mA

Mount Type

Through Hole

Output Voltage 2

-15V dc

Number of Outputs

2

MTBF

127000h

Ripple and Noise

150mV Pk-Pk

Number of Pins

7

Isolation Voltage

1kV dc

Maximum Output Power

2W

Package Type

SIP

Series

NMH

Depth

10mm

Weight

2.76g

Standards/Approvals

RoHS

Length

19.5mm

Width

19.5mm

Efficiency

86%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

COO (Country of Origin):
CN

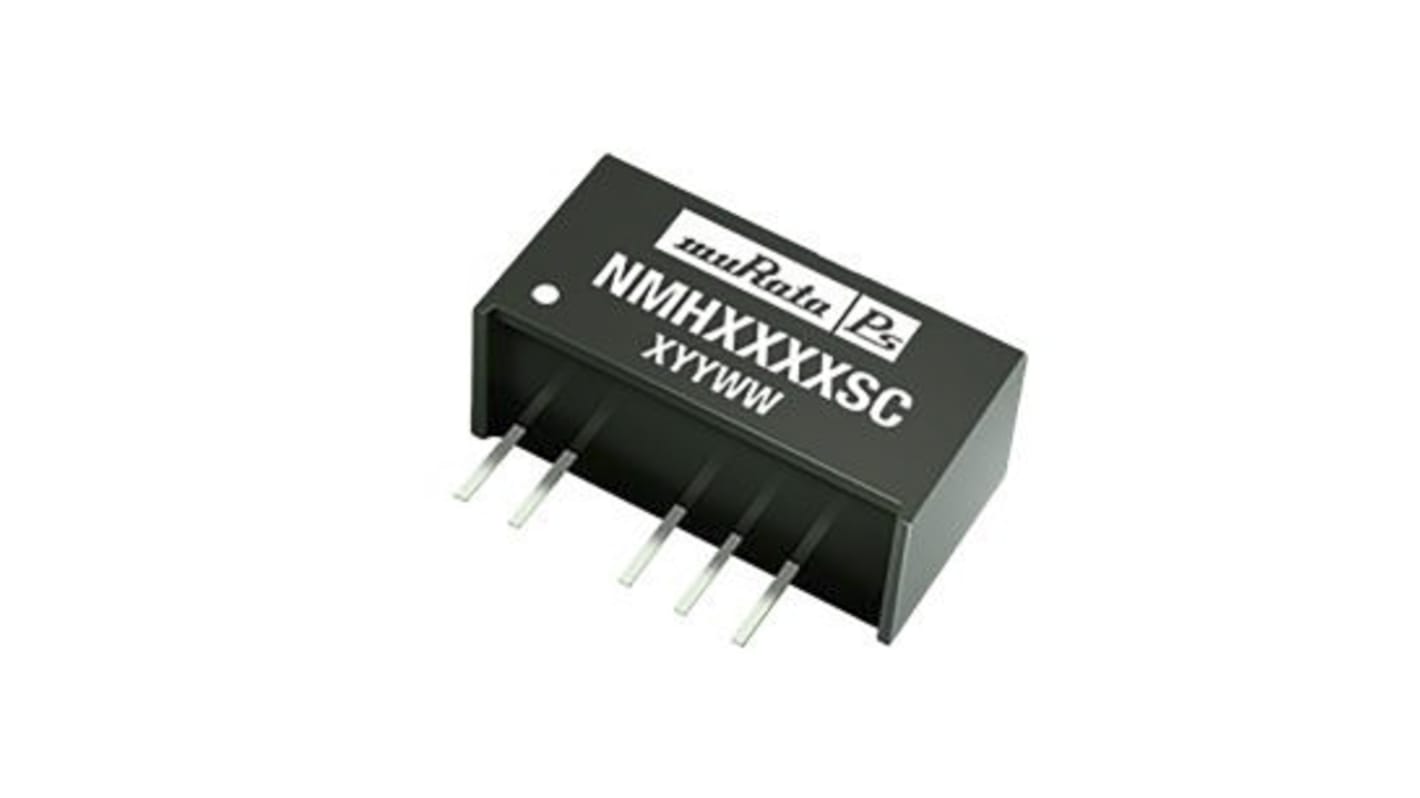

Murata 2W SIP Dual Output Unregulated Isolated DC-DC Converter - NMH Series


High efficiency

Unregulated output

No de-rating

1kV input/output isolation

No external components required

Internal SMD construction

UL 94V-0 package material

SIP7 plastic package

Murata Power Solutions - SIP


Note

MTBF to MIL-HDBK-217F (25°C).
