Murata Power Solutions NMA DC-DC Converter, ±9V dc/ ±55mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C
- RS Stock No.:
- 167-0733
- Mfr. Part No.:
- NMA0509SC
- Brand:
- Murata Power Solutions
Available to back order for despatch 29/01/2025
Added
Price 1 Tube of 25
£100.45
(exc. VAT)
£120.54
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 4 | £100.45 | £4.018 |
5 - 9 | £97.44 | £3.898 |
10 - 24 | £94.42 | £3.777 |
25 - 49 | £91.41 | £3.656 |
50 + | £88.40 | £3.536 |
*price indicative |
- RS Stock No.:
- 167-0733
- Mfr. Part No.:
- NMA0509SC
- Brand:
- Murata Power Solutions
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details

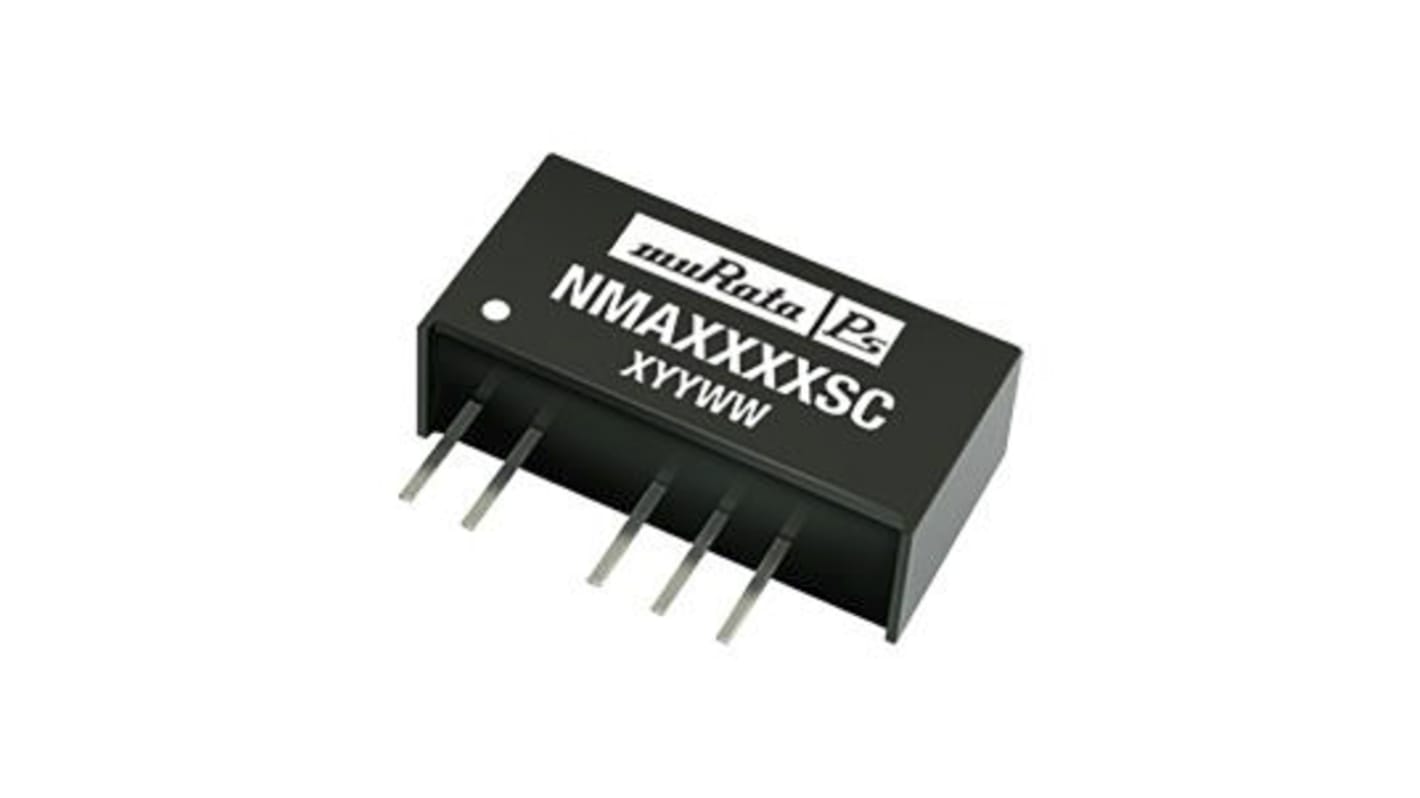

Murata 1W SIP Dual Output Unregulated Isolated DC-DC Converter - NMA Series
High efficiency
Unregulated output
No de-rating
1kV input/output isolation
No external components required
Internal SMD construction
UL 94V-0 package material
SIP7 plastic package
Unregulated output
No de-rating
1kV input/output isolation
No external components required
Internal SMD construction
UL 94V-0 package material
SIP7 plastic package
Note
MTBF to MIL-HDBK-217F (25°C).
Murata Power Solutions - SIP
Specifications
Attribute | Value |
---|---|
Output Voltage | ±9V dc |
Input Voltage Range | 4.5 → 5.5 V dc |
Power Rating | 1W |
Input Voltage Nominal | 5 V dc |
Output Current | ±55mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Package | SIP |
Isolation Voltage | 1kV dc |
Length | 19.5mm |
Depth | 10mm |
Series | NMA |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
