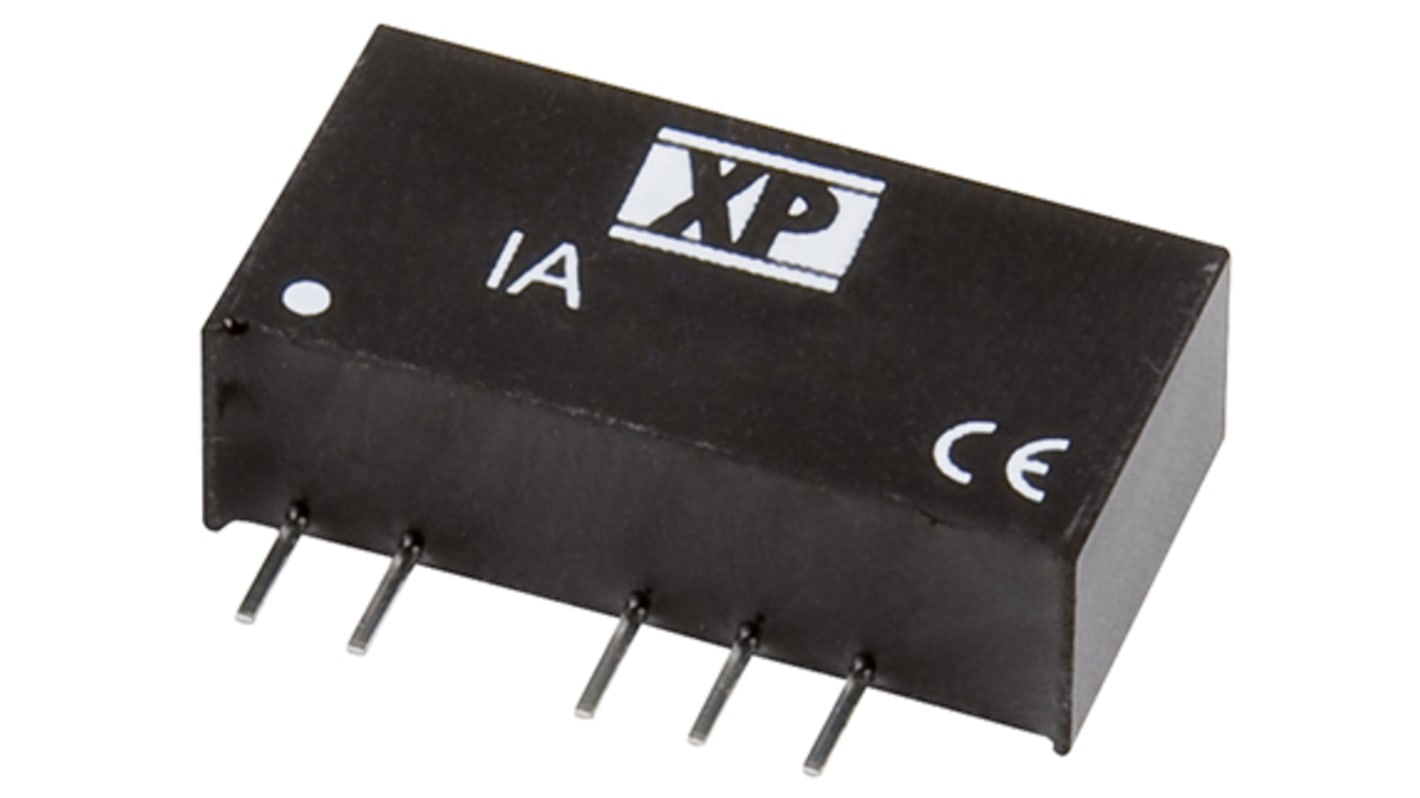

XP Power IA DC-DC Converter, ±9V dc/ ±55mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 161-9135
- Mfr. Part No.:
- IA0509S
- Brand:
- XP Power
Available to back order for despatch 11/09/2024
Added
Price 1 Tube of 20
£63.23
(exc. VAT)
£75.88
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 + | £63.23 | £3.162 |
*price indicative |
- RS Stock No.:
- 161-9135
- Mfr. Part No.:
- IA0509S
- Brand:
- XP Power
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
XP Power - IA Series of Isolated DC-DC Converters
The IA series from XP Power offers a highly reliable range of dual output, 1 W, isolated DC-DC converters. The series features 1000 VDC in isolation and is available in both an industry standard SIP and DIP package. These dual output, DC-DC converters feature an industry standard pinout and have a wide -40 °C to +85 °C operating temperature.
1 W, isolated DC-DC converters
1000 VDC in isolation
Dual output
-40 °C to +85 °C Operating temperature
Available in both a SIP and DIP package
Up to 80% efficiency
1000 VDC in isolation
Dual output
-40 °C to +85 °C Operating temperature
Available in both a SIP and DIP package
Up to 80% efficiency
XP Power - Isolated DC-DC Converters
Specifications
Attribute | Value |
---|---|
Output Voltage | ±9V dc |
Input Voltage Range | 4.5 → 5.5 V dc |
Power Rating | 1W |
Input Voltage Nominal | 5 V dc |
Output Current | ±55mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Package | SIP |
Isolation Voltage | 1kV dc |
Depth | 10.16mm |
Width | 6.09mm |
Length | 19.3mm |
Series | IA |
Load Regulation | Maximum of 10% |
Efficiency | 78% |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
