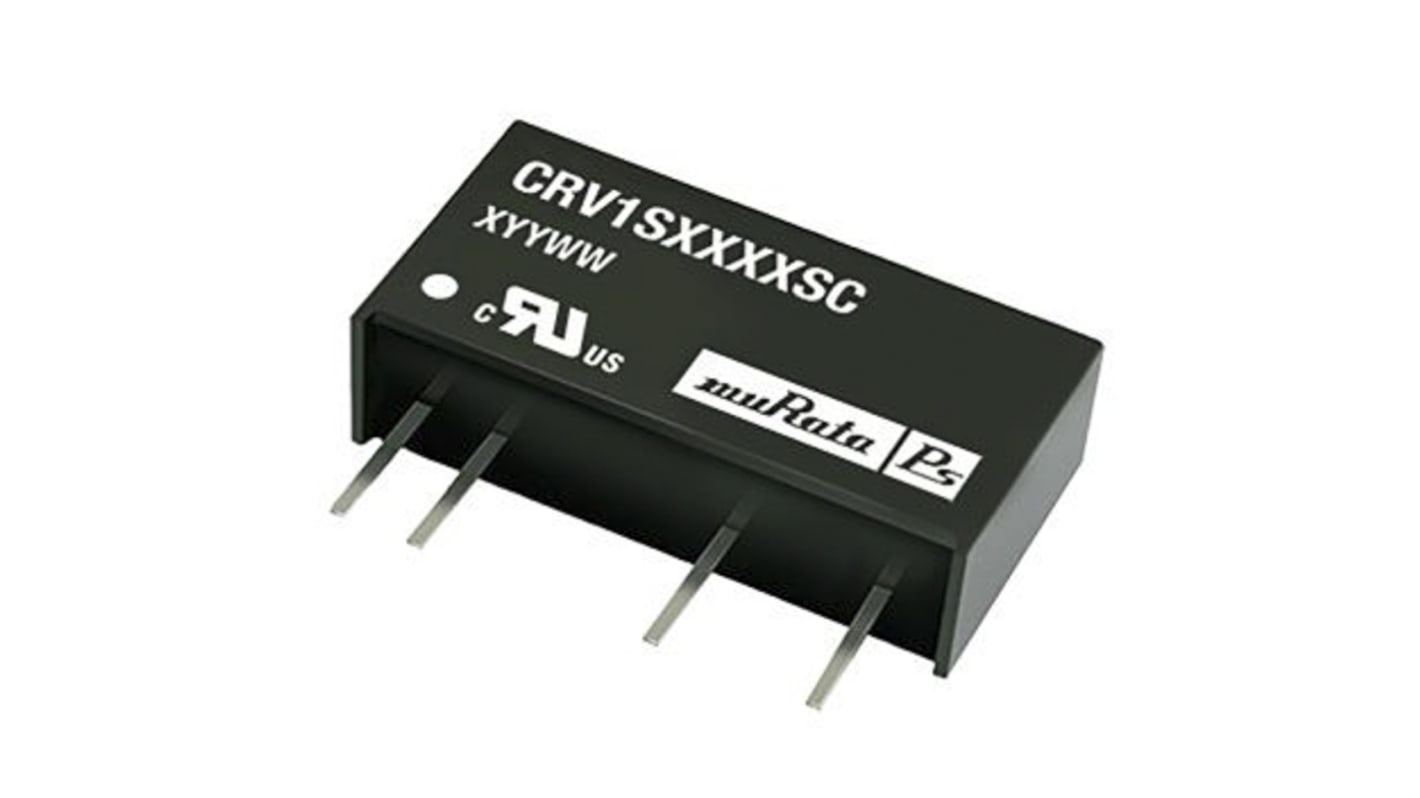

Murata Power Solutions CRV1 DC/DC Converter, 5V/ 200 mA, 5.5V dc Input, 4.5V Input 1 W, Through Hole, 85 °C Max Temp -40
- RS Stock No.:
- 167-0709
- Mfr. Part No.:
- CRV1S0505SC
- Brand:
- Murata Power Solutions
Subtotal (1 tube of 25 units)*
£51.63
(exc. VAT)
£61.96
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £51.63 | £2.065 |
*price indicative
- RS Stock No.:
- 167-0709
- Mfr. Part No.:
- CRV1S0505SC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage 1 | 5V | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 5.5V dc | |
| Minimum Input Voltage | 4.5V | |
| Output Current 1 | 200mA | |
| Output Current 2 | 294mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 4241000h | |
| Ripple and Noise | 23mV Pk-Pk | |
| Output Voltage Adjustment Range | 10.8/13.2 V | |
| Isolation Voltage | 3kV dc | |
| Number of Pins | 7 | |
| Maximum Output Power | 1W | |
| Package Type | SIP | |
| Depth | 10mm | |
| Length | 19.5mm | |
| Weight | 2.1g | |
| Standards/Approvals | UL, RoHS, CRE | |
| Width | 6mm | |
| Series | CRV1 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 70% | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 1 5V | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 5.5V dc | ||
Minimum Input Voltage 4.5V | ||
Output Current 1 200mA | ||
Output Current 2 294mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 4241000h | ||
Ripple and Noise 23mV Pk-Pk | ||
Output Voltage Adjustment Range 10.8/13.2 V | ||
Isolation Voltage 3kV dc | ||
Number of Pins 7 | ||
Maximum Output Power 1W | ||
Package Type SIP | ||
Depth 10mm | ||
Length 19.5mm | ||
Weight 2.1g | ||
Standards/Approvals UL, RoHS, CRE | ||
Width 6mm | ||
Series CRV1 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Efficiency 70% | ||
- COO (Country of Origin):
- CN
Murata CRV Series Isolated DC-DC Converter
Murata CRV series of industrial temperature range DC-DC converters are the industry standard for integrated power systems. The CRV series are primarily designed for use withhin local supplies on control systam boards, with the added benefit of 3kV dc galvanic isolation. The series are available available in both single & dual SIP package pinout.
Features and Benefits
Fully encapsulated with toroidal magnetics.
Industry standard pinout.
No external components required.
3kV dc isolation.
