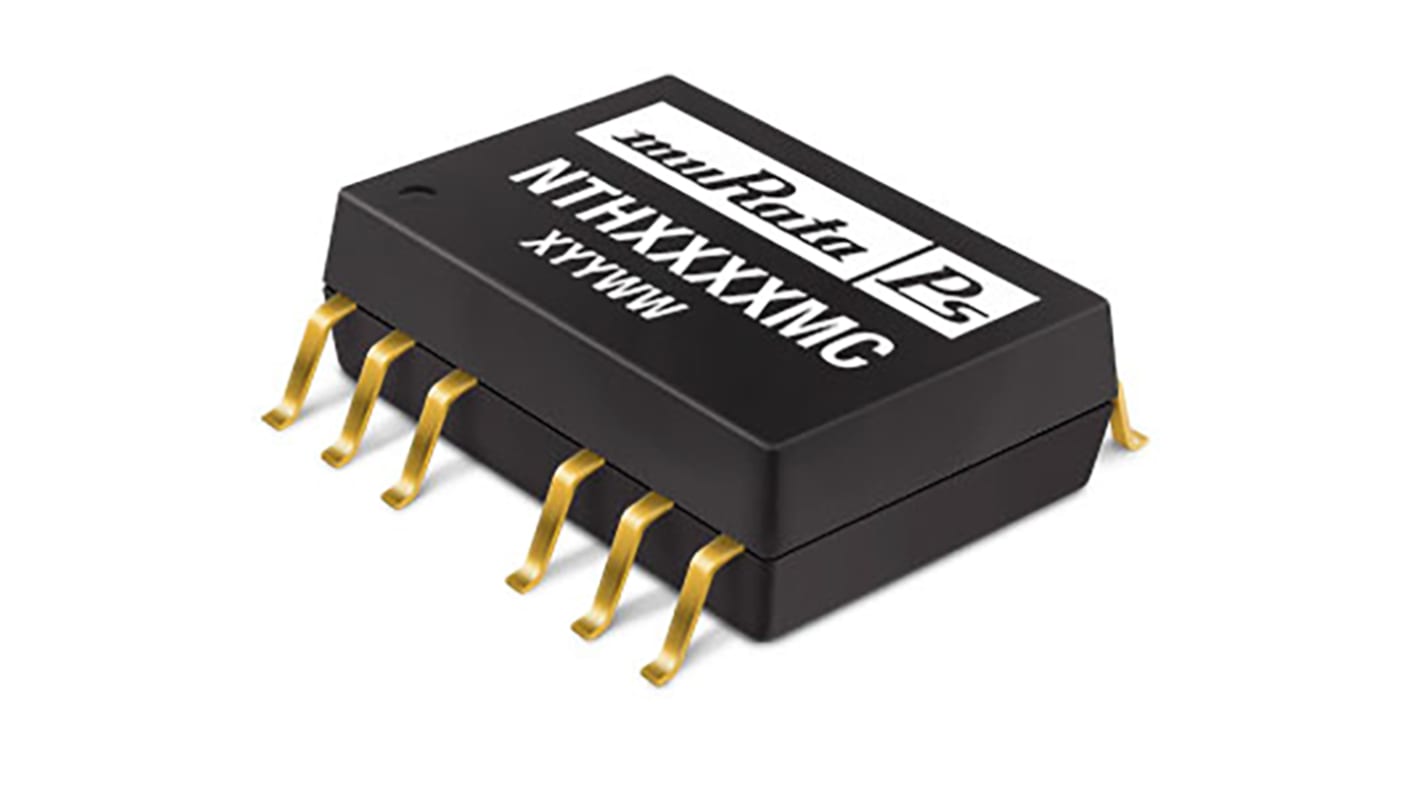

Murata Power Solutions NTH DC/DC Converter, 5V dc/ 200 mA, 5.5V dc Input, 4.5V Input 2 W, 85 °C Max Temp -40 °C Min
- RS Stock No.:
- 689-5539
- Mfr. Part No.:
- NTH0505MC
- Brand:
- Murata Power Solutions
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (Supplied in a Tube)
£11.62
(exc. VAT)
£13.94
(inc. VAT)
- RS Stock No.:
- 689-5539
- Mfr. Part No.:
- NTH0505MC
- Brand:
- Murata Power Solutions
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Murata Power Solutions | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 4.5V | |
| Maximum Input Voltage | 5.5V dc | |
| Output Current 1 | 200mA | |
| Output Current 2 | 200mA | |
| MTBF | 2.17mH | |
| Number of Outputs | 2 | |
| Ripple and Noise | 200mV Pk-Pk | |
| Isolation Voltage | 1kV dc | |
| Number of Pins | 12 | |
| Maximum Output Power | 2W | |
| Package Type | Surface Mount | |
| Series | NTH | |
| Width | 14.40mm | |
| Weight | 2.75g | |
| Depth | 7.7mm | |
| Length | 12.7mm | |
| Standards/Approvals | IEC, UL | |
| Efficiency | 80% | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Murata Power Solutions | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 4.5V | ||
Maximum Input Voltage 5.5V dc | ||
Output Current 1 200mA | ||
Output Current 2 200mA | ||
MTBF 2.17mH | ||
Number of Outputs 2 | ||
Ripple and Noise 200mV Pk-Pk | ||
Isolation Voltage 1kV dc | ||
Number of Pins 12 | ||
Maximum Output Power 2W | ||
Package Type Surface Mount | ||
Series NTH | ||
Width 14.40mm | ||
Weight 2.75g | ||
Depth 7.7mm | ||
Length 12.7mm | ||
Standards/Approvals IEC, UL | ||
Efficiency 80% | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- CN
Murata 2W SMD Dual Output Unregulated Isolated DC-DC Converter - NTH Series
Isolated SMT DIP16 plastic case
1kVdc isolation
Fully encapsulated
UL 94V-0 package material
