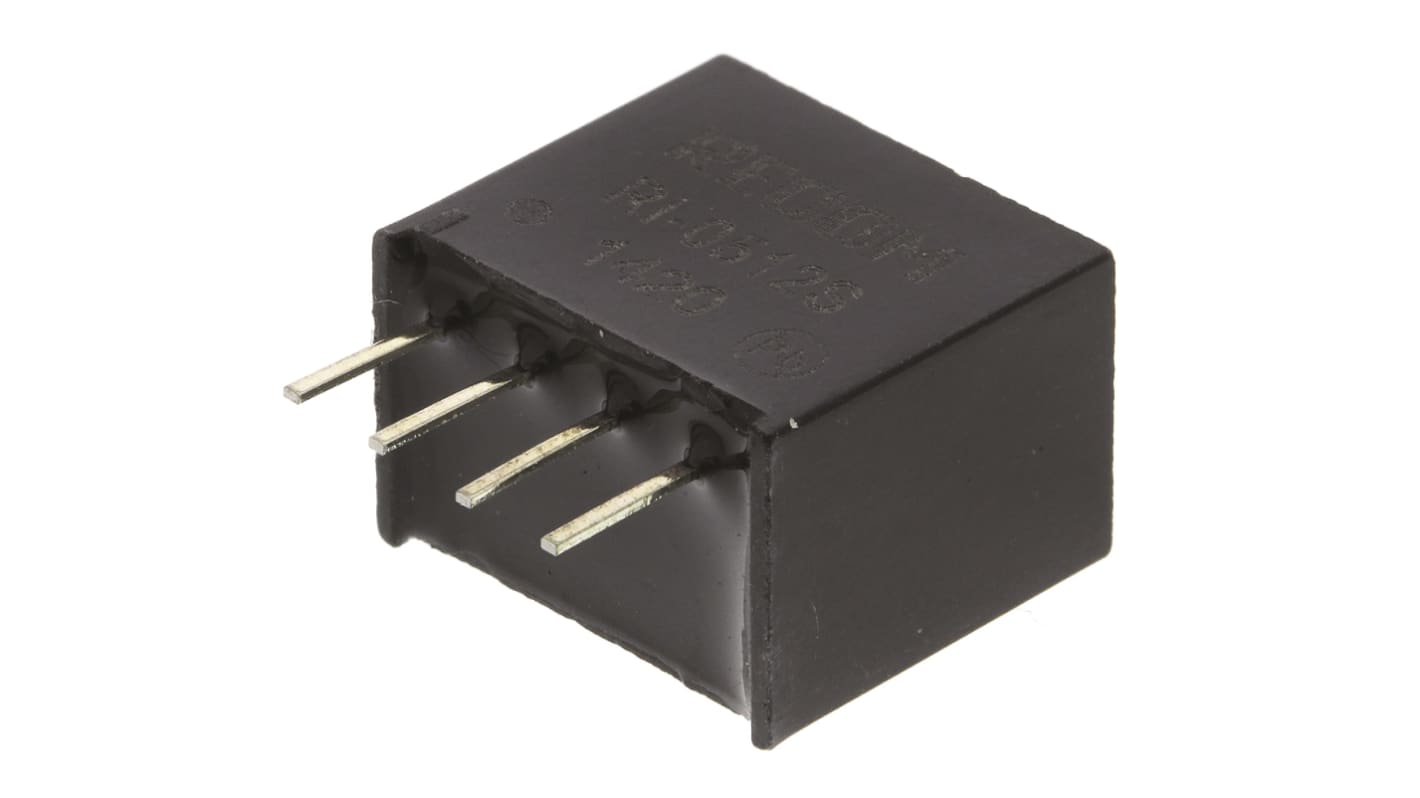

Recom RI DC-DC Converter, 12V dc/ 167mA Output, 4.5 → 5.5 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C Min
- RS Stock No.:
- 166-9048
- Mfr. Part No.:
- RI-0512S
- Brand:
- Recom
1 In stock - FREE next working day delivery available
Added
Price 1 Tube of 42
£280.71
(exc. VAT)
£336.85
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 4 | £280.71 | £6.684 |
5 - 9 | £272.29 | £6.483 |
10 - 24 | £263.87 | £6.283 |
25 - 49 | £255.45 | £6.082 |
50 + | £247.02 | £5.881 |
*price indicative |
- RS Stock No.:
- 166-9048
- Mfr. Part No.:
- RI-0512S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom 2W SIP Single Output Unregulated Isolated DC-DC Converter - RI Series
Industrial standard pin-out
No heatsink required
SIP4 package
High efficiency (80% typ)
Capacitor input filter
Isolation voltage 1kVdc (min)
Voltage; input ±10%, output ±5%
UL94V-0 package material
No heatsink required
SIP4 package
High efficiency (80% typ)
Capacitor input filter
Isolation voltage 1kVdc (min)
Voltage; input ±10%, output ±5%
UL94V-0 package material
Note
Operating temperature is without derating.
/P suffix denotes continuous short circuit protection.
/P suffix denotes continuous short circuit protection.
RECOM DC-DC Converter, ≤85% Efficiency, 1kV DC Isolation Voltage - RI Series - RI-0512S
When your portable devices need a safe source of power, this DC-DC converter from RECOM steps up. It takes an input of 5V DC (±10%) and raises it to a steady supply of 12V DC that's practical for charging battery-powered components. A 1kV DC isolation rating lets you breathe easy, as the unit's effective insulation means you and your equipment are shielded against even significant voltage surges. Thanks to a low ripple and noise value up to 200mVp-p, you can count on stable electrical characteristics, too, so the risk of EMI affecting signal quality is reduced.
Features & Benefits
• Efficiency up to 85% means little energy wasted as heat, so no need for a heatsink
• Mean time between failures up to 179,000 hours, so you know it's long-lasting
• Made of non-flammable materials to help minimise the spread of flames in a fire
• Compact size of 11.5 (L) x 7.6 (W) x 10.2mm (H) makes it a doddle to fit on your PCB
• Mean time between failures up to 179,000 hours, so you know it's long-lasting
• Made of non-flammable materials to help minimise the spread of flames in a fire
• Compact size of 11.5 (L) x 7.6 (W) x 10.2mm (H) makes it a doddle to fit on your PCB
Applications
• Consumer electronics
• Medical devices
• Electric vehicles
• Medical devices
• Electric vehicles
What's the benefit of this product's SIP4 package?
This converter's compact SIP4 package is an industry-standard size and pin-out configuration. This makes it easy to install onto your PCB using the secure through-hole mounting method.
Specifications
Attribute | Value |
---|---|
Output Voltage | 12V dc |
Input Voltage Range | 4.5 → 5.5 V dc |
Power Rating | 2W |
Input Voltage Nominal | 5 V dc |
Output Current | 167mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | SIP |
Isolation Voltage | 1kV dc |
Length | 11.5mm |
Depth | 10.2mm |
Series | RI |
Load Regulation | 0.15 |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
