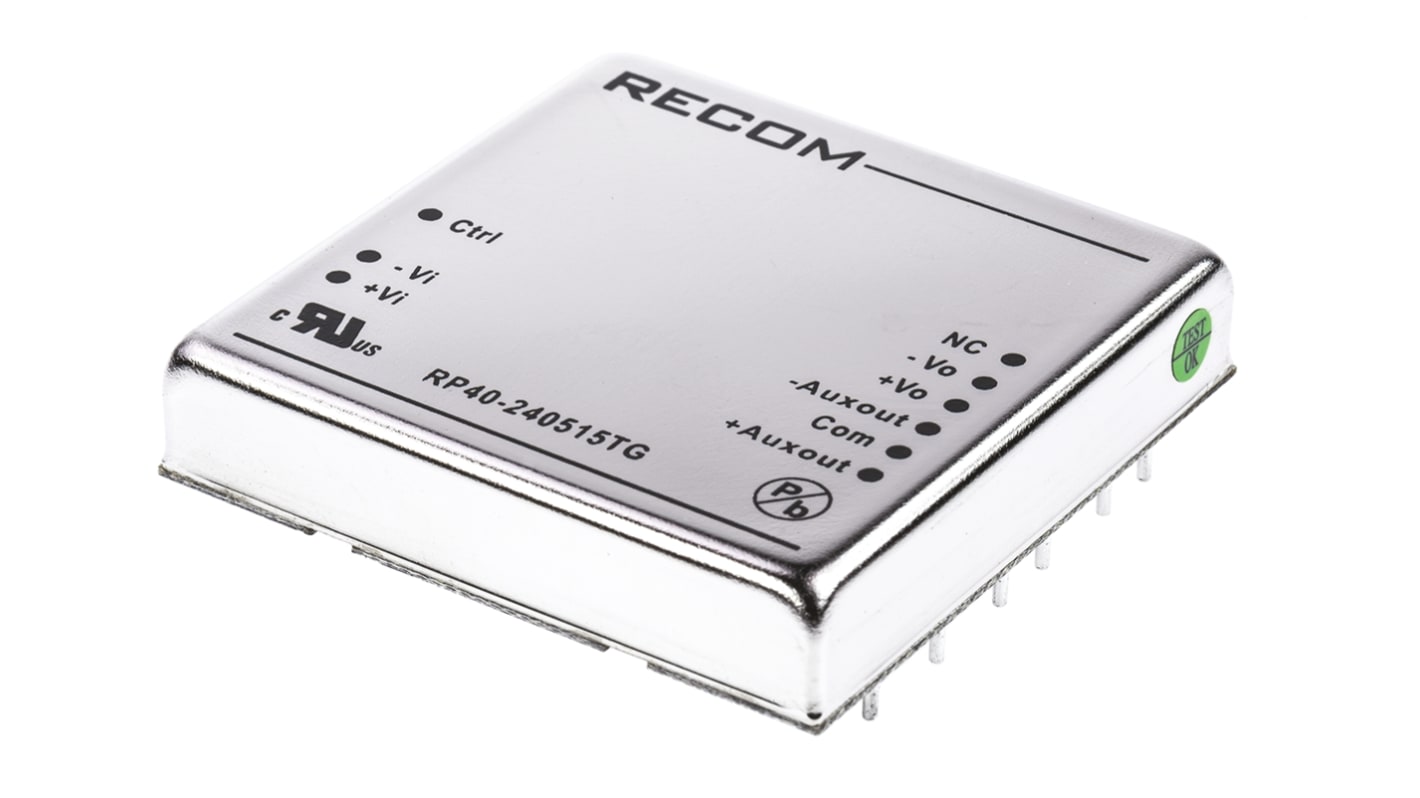

Recom RP40 G DC/DC Converter, 15V dc/ 300 mA, 36V dc Input, 18V Input 40 W, Through Hole, 66 °C Max Temp -40 °C Min
- RS Stock No.:
- 166-9041
- Mfr. Part No.:
- RP40-240515TG
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 4 units)*
£422.24
(exc. VAT)
£506.69
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 17 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £422.24 | £105.56 |
| 5 - 9 | £409.57 | £102.393 |
| 10 - 24 | £396.91 | £99.228 |
| 25 - 49 | £384.24 | £96.06 |
| 50 + | £371.57 | £92.893 |
*price indicative
- RS Stock No.:
- 166-9041
- Mfr. Part No.:
- RP40-240515TG
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 15V dc | |
| Maximum Input Voltage | 36V dc | |
| Minimum Input Voltage | 18V | |
| Output Current 1 | 300mA | |
| Output Current 2 | 300mA | |
| Output Voltage 2 | -15V dc | |
| Mount Type | Through Hole | |
| Input Ratio | 2:1 | |
| MTBF | 9224000h | |
| Number of Outputs | 3 | |
| Isolation Voltage | 1.6kV dc | |
| Number of Pins | 9 | |
| Package Type | 2 x 2 in | |
| Maximum Output Power | 40W | |
| Standards/Approvals | No | |
| Length | 50.8mm | |
| Depth | 10.2mm | |
| Series | RP40 G | |
| Maximum Operating Temperature | 66°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 85% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 15V dc | ||
Maximum Input Voltage 36V dc | ||
Minimum Input Voltage 18V | ||
Output Current 1 300mA | ||
Output Current 2 300mA | ||
Output Voltage 2 -15V dc | ||
Mount Type Through Hole | ||
Input Ratio 2:1 | ||
MTBF 9224000h | ||
Number of Outputs 3 | ||
Isolation Voltage 1.6kV dc | ||
Number of Pins 9 | ||
Package Type 2 x 2 in | ||
Maximum Output Power 40W | ||
Standards/Approvals No | ||
Length 50.8mm | ||
Depth 10.2mm | ||
Series RP40 G | ||
Maximum Operating Temperature 66°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 85% | ||
Recom 40W Single/Triple Output Regulated Isolated DC-DC Converter - RP40-G Series
2:1 input range
Regulated outputs
L-C input filters
1·6kV input/output isolation
Very high efficiency up to 89%
Control pin for remote ON/OFF
Hiccup automatic short circuit protection
Overvoltage protection
Shielded metal case with insulated base plate
Industry standard package
Note
Operational temperature is with derating.
Approvals
UL recognised
Standards
EN60950, UL1950
