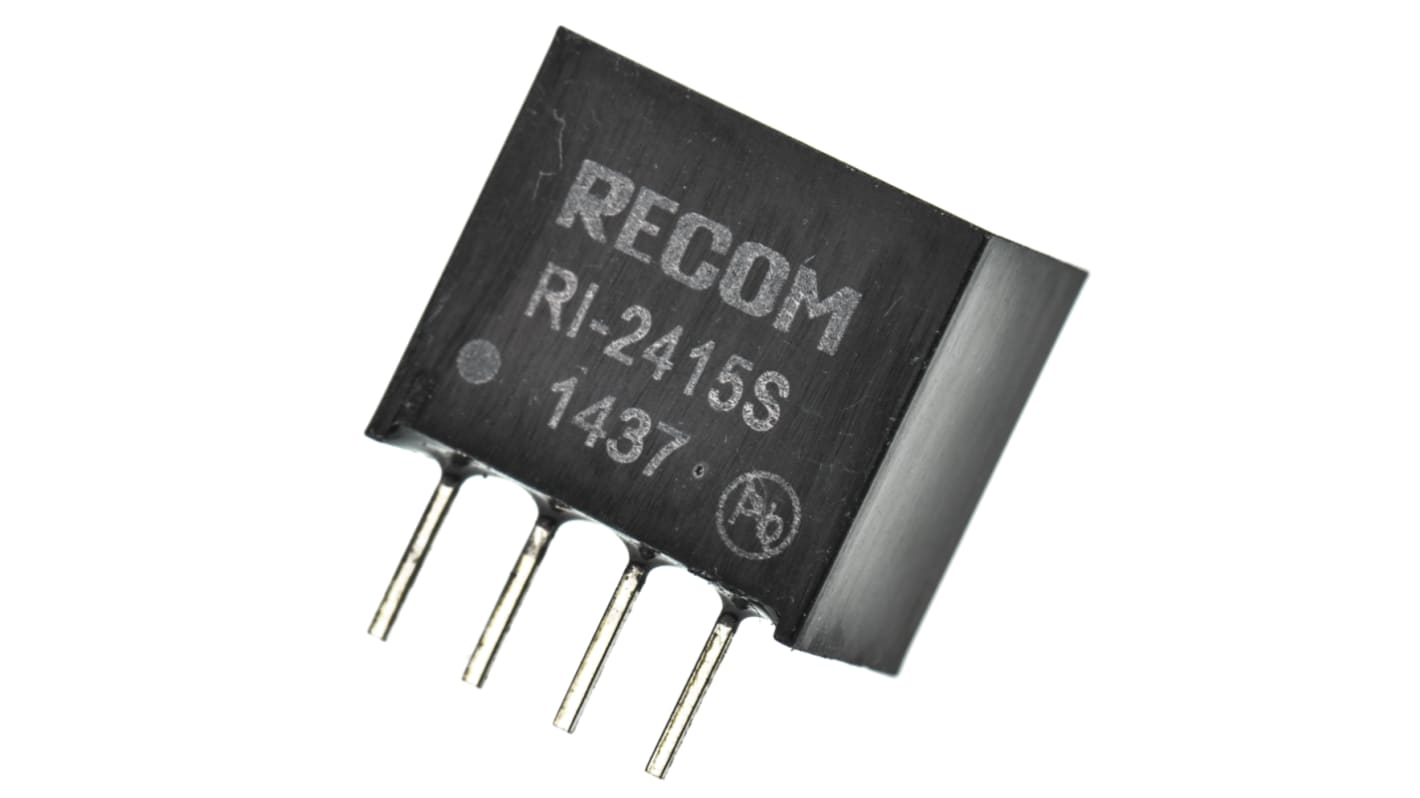

Recom RI DC/DC Converter, 15V dc/ 133 mA, 24V dc Input, 0V ac Input 2 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 166-9037
- Mfr. Part No.:
- RI-2415S
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 42 units)*
£288.11
(exc. VAT)
£345.73
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £288.11 | £6.86 |
| 5 - 9 | £279.47 | £6.654 |
| 10 - 24 | £270.83 | £6.448 |
| 25 - 49 | £262.18 | £6.242 |
| 50 + | £253.54 | £6.037 |
*price indicative
- RS Stock No.:
- 166-9037
- Mfr. Part No.:
- RI-2415S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 15V dc | |
| Maximum Input Voltage | 24V dc | |
| Minimum Input Voltage | 0V ac | |
| Output Current 1 | 133mA | |
| Output Current 2 | 183mA | |
| Mount Type | Through Hole | |
| MTBF | 160000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 200mV Pk-Pk | |
| Output Voltage Adjustment Range | 0/24 V | |
| Isolation Voltage | 500V ac | |
| Number of Pins | 4 | |
| Package Type | SIP-4 | |
| Maximum Output Power | 2W | |
| Length | 11.5mm | |
| Weight | 1.4g | |
| Standards/Approvals | EN 60950-1 | |
| Width | 7.55mm | |
| Series | RI | |
| Depth | 10.2mm | |
| Maximum Operating Temperature | 85°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 85% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 15V dc | ||
Maximum Input Voltage 24V dc | ||
Minimum Input Voltage 0V ac | ||
Output Current 1 133mA | ||
Output Current 2 183mA | ||
Mount Type Through Hole | ||
MTBF 160000h | ||
Number of Outputs 1 | ||
Ripple and Noise 200mV Pk-Pk | ||
Output Voltage Adjustment Range 0/24 V | ||
Isolation Voltage 500V ac | ||
Number of Pins 4 | ||
Package Type SIP-4 | ||
Maximum Output Power 2W | ||
Length 11.5mm | ||
Weight 1.4g | ||
Standards/Approvals EN 60950-1 | ||
Width 7.55mm | ||
Series RI | ||
Depth 10.2mm | ||
Maximum Operating Temperature 85°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 85% | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, 1kV DC Isolation Voltage, 680μF Maximum Capacitive Load - RI Series - RI-2415S
Be sure of safe power distribution to your PCB-linked parts with this DC-DC converter from RECOM. It steps down 24V DC inputs to deliver a 15V DC output, providing a glitch-free supply for components like battery chargers. Thanks to its non-conductive housing, this piece of kit resists wear and impact, making it suitable for use in harsh environments. You won't have any issues mounting it in a busy setup, thanks to its Compact dimensions of 10.2 (H) x 11.5 (L) x 7.55mm (W).
Features & Benefits
• Functions reliably in a wide operating temperature range between -40°C and +85°C
• Through-hole mounting ensures a firm hold on your circuit board that withstands vibrations
• Mean time between failures of 845,000 hours at +25°C assures you of long-term performance
• Isolation voltage of 1kV DC minimises the risk of damage from sudden power spikes
Applications
• Transportation industry
• Electrical workshops
• Computer networks
How efficient is this converter?
This unit is between 80 and 85% efficient, so you GET high productivity with very little power loss to heat.
