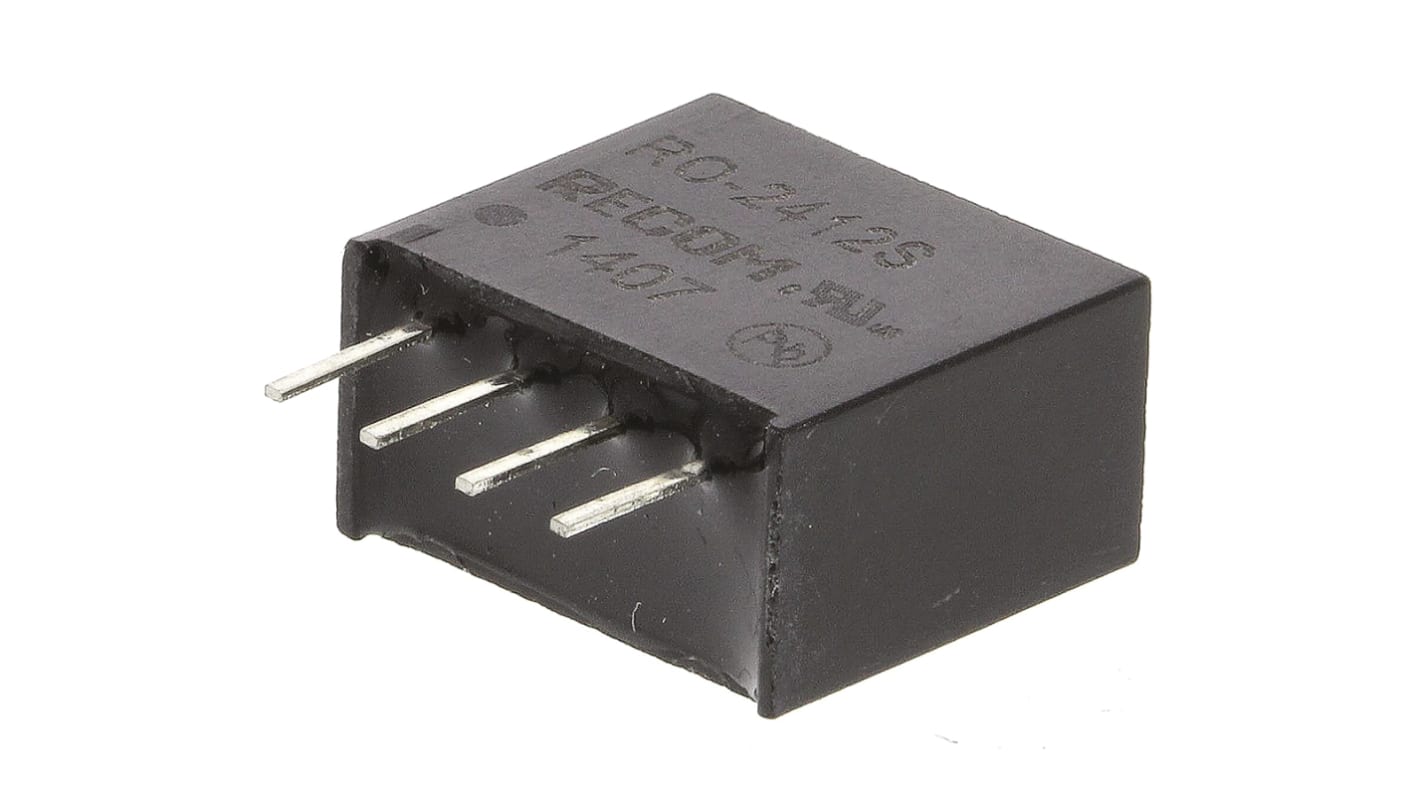

Recom RO DC-DC Converter, 12V dc/ 83mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 166-9031
- Mfr. Part No.:
- RO-2412S
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 42 units)*
£241.97
(exc. VAT)
£290.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £241.97 | £5.761 |
| 5 - 9 | £234.71 | £5.588 |
| 10 - 24 | £227.45 | £5.415 |
| 25 - 49 | £220.19 | £5.243 |
| 50 + | £212.93 | £5.07 |
*price indicative
- RS Stock No.:
- 166-9031
- Mfr. Part No.:
- RO-2412S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 21.6 → 26.4 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 83mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP | |
| Isolation Voltage | 1kV dc | |
| Length | 11.5mm | |
| Depth | 10mm | |
| Series | RO | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 12V dc | ||
Input Voltage Range 21.6 → 26.4 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 83mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP | ||
Isolation Voltage 1kV dc | ||
Length 11.5mm | ||
Depth 10mm | ||
Series RO | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter - RO Series
Unregulated outputs
1kVdc isolation
Efficiency at full load up to 85%
Short circuit protection
Fully encapsulated UL94V-0 package
SIP4 industry standard pinout
1kVdc isolation
Efficiency at full load up to 85%
Short circuit protection
Fully encapsulated UL94V-0 package
SIP4 industry standard pinout
Note
MTBF to MIL-HDBK 217F
Operating temperature is without derating.
Operating temperature is without derating.
Standards
EN-60950-1
RECOM DC-DC Converter, 11.5mm Length, 21.6 to 26.4V DC Voltage Range - RO Series - RO-2412S
Need a way to ensure a stable power supply for your electronic devices? Give this DC-DC converter from RECOM the job. It transforms an input voltage supply between 21.6 and 26.4V DC to a safe level of 12V DC. An efficiency rating between 80 and 84% means the unit wastes minimal energy as heat, so there's no need to clutter your setup with a heatsink. An impressive mean time between failures of 985,000 hours at +25°C means this unit goes the distance.
Features & Benefits
• Compact dimensions of 11.5 (L) x 10mm (D) to fit onto boards with limited space
• Integrated soldering pins for easy through-hole mounting
• Integral short-circuit protection prevents damage from electric hazards
• Integrated soldering pins for easy through-hole mounting
• Integral short-circuit protection prevents damage from electric hazards
Applications
• Video display units
• Robotics systems
• Aviation engineering
• Agricultural equipment
• Robotics systems
• Aviation engineering
• Agricultural equipment
What's the operating temperature range of this converter?
This converter has a broad operating temperature range between -40°C and +85°C, meaning you can safely use it in challenging environments.
How accurate is this DC-DC converter?
This DC-DC converter has an output voltage accuracy rating of ±5%, meaning you can count on it to consistently deliver the correct power supply to your machinery.
