Recom RM DC/DC Converter, 5V dc/ 50 mA, 5V dc Input, 4.5V Input 2 W, Through Hole, 85 °C Max Temp -40 °C Min Temp, 4-Pin
- RS Stock No.:
- 166-9005
- Mfr. Part No.:
- RM-0505S
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 42 units)*
£227.93
(exc. VAT)
£273.52
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 27 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £227.93 | £5.427 |
| 5 - 9 | £221.09 | £5.264 |
| 10 - 24 | £214.25 | £5.101 |
| 25 - 49 | £207.41 | £4.938 |
| 50 + | £200.58 | £4.776 |
*price indicative
- RS Stock No.:
- 166-9005
- Mfr. Part No.:
- RM-0505S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 5V dc | |
| Minimum Input Voltage | 4.5V | |
| Output Current 1 | 50mA | |
| Output Current 2 | 50mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 302000h | |
| Output Voltage Adjustment Range | 4.5/5.5 V | |
| Ripple and Noise | 50mV Pk-Pk | |
| Isolation Voltage | 1kV dc | |
| Number of Pins | 4 | |
| Maximum Output Power | 2W | |
| Package Type | SIP | |
| Depth | 10mm | |
| Series | RM | |
| Standards/Approvals | UL 60950-1, UL, IEC/EN 60950-1, IEC, EN 60950, CSA-C22.2 No. 60950-1 | |
| Length | 11.5mm | |
| Width | 10mm | |
| Weight | 1.8g | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 72% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 5V dc | ||
Minimum Input Voltage 4.5V | ||
Output Current 1 50mA | ||
Output Current 2 50mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 302000h | ||
Output Voltage Adjustment Range 4.5/5.5 V | ||
Ripple and Noise 50mV Pk-Pk | ||
Isolation Voltage 1kV dc | ||
Number of Pins 4 | ||
Maximum Output Power 2W | ||
Package Type SIP | ||
Depth 10mm | ||
Series RM | ||
Standards/Approvals UL 60950-1, UL, IEC/EN 60950-1, IEC, EN 60950, CSA-C22.2 No. 60950-1 | ||
Length 11.5mm | ||
Width 10mm | ||
Weight 1.8g | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Efficiency 72% | ||
- COO (Country of Origin):
- TW

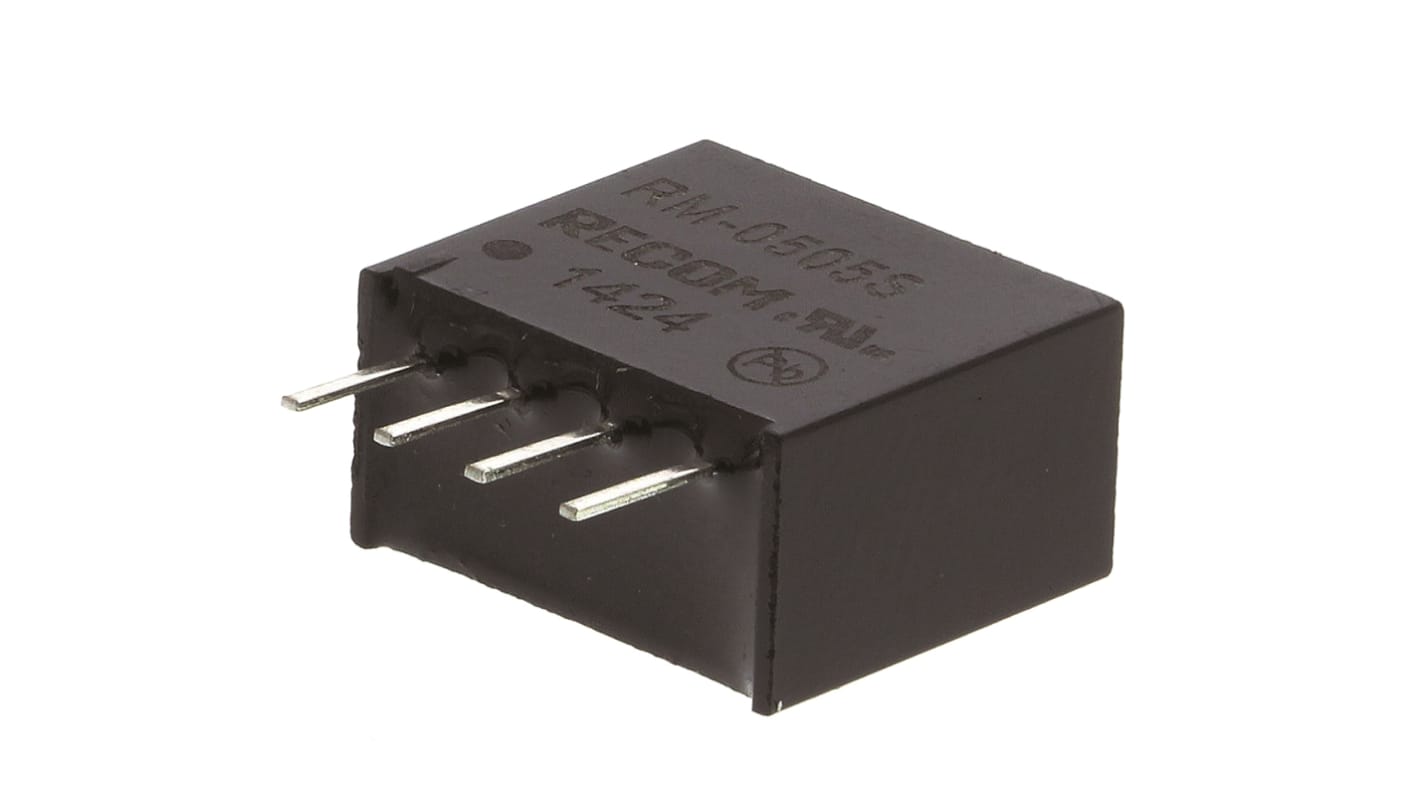

RECOM DC-DC Converter, Fully Encapsulated, ±5% Output Voltage Accuracy - RM Series - RM-0505S
Need a reliable workmate to regulate your electronic devices? Get this DC-DC converter from RECOM on your team. It tackles irregular input voltage supply between 4.5 and 5.5V DC, stepping it down to a safe level of 5V DC. As the unit has an output voltage accuracy rating of ±5%, you can count on reliable performance every time. It also keeps the input and output voltage supplies safely isolated to protect you and your equipment from damage caused by glitches.
Features & Benefits
• Fully encapsulated body offers insulation for safe handling
• Low ripple and noise of 50mVp-p for a clear signal output
• Wide operating temperature range between -40°C and +85°C to stand up to harsh industrial environments
Applications
• Medical technology
• Smartphones
• Computer peripherals
• IT equipment
How do I mount this DC-DC converter?
You can mount this DC-DC converter by soldering it to the through-holes on your PCB. It comes with built-in pins to make attaching it a cinch.
How long will this converter last?
Thanks to its impressive mean time between failures of 1,327,000 hours at +25°C, you can reliably use this DC-DC converter over long periods.
