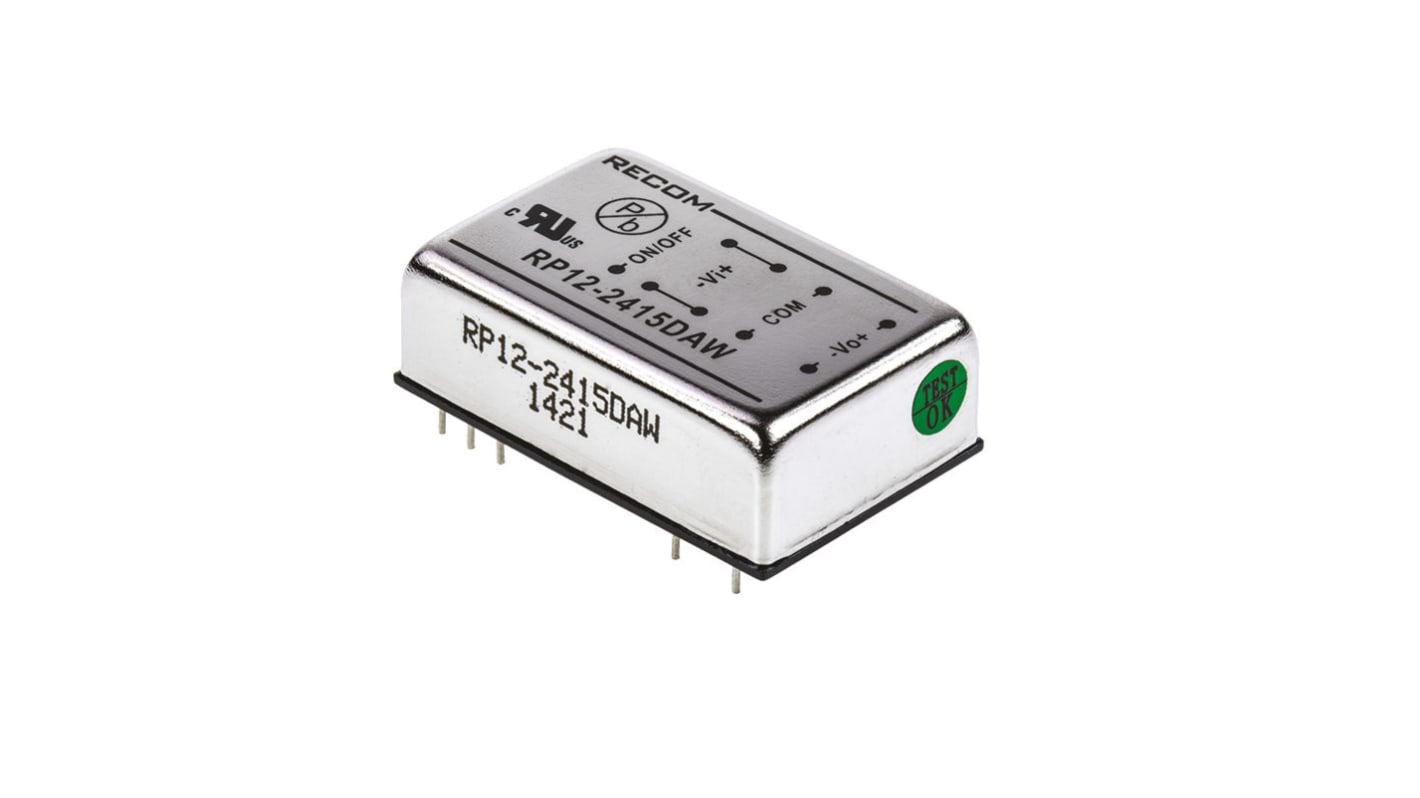

Recom RP12-AW DC-DC Converter, ±15V dc/ ±400mA Output, 9 → 36 V dc Input, 12W, Through Hole, +65°C Max Temp
- RS Stock No.:
- 166-8858
- Mfr. Part No.:
- RP12-2415DAW
- Brand:
- Recom
Available to back order for despatch 18/07/2024
Added
Price 1 Tube of 7
£338.95
(exc. VAT)
£406.74
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
1 - 4 | £338.95 | £48.421 |
5 - 9 | £328.78 | £46.969 |
10 - 24 | £318.61 | £45.516 |
25 - 49 | £308.44 | £44.063 |
50 + | £298.28 | £42.611 |
*price indicative |
- RS Stock No.:
- 166-8858
- Mfr. Part No.:
- RP12-2415DAW
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom 12W Single/Dual Output Regulated Isolated DC-DC Converter - RP12-AW Series
High power density
Ultra-wide 4:1 input voltage range
Regulated outputs
1.6kV input / output isolation
Pi input filter, meets EN 55022 Class A/B with external filter
Remote On/Off Control
Under voltage, over voltage (single), over load and short circuit protection
Shielded metal case with insulated baseplate
24-pin DIP with industry standard pin-out
Ultra-wide 4:1 input voltage range
Regulated outputs
1.6kV input / output isolation
Pi input filter, meets EN 55022 Class A/B with external filter
Remote On/Off Control
Under voltage, over voltage (single), over load and short circuit protection
Shielded metal case with insulated baseplate
24-pin DIP with industry standard pin-out
Note
Operating temperature is without de-rating.
Specifications
Attribute | Value |
---|---|
Output Voltage | ±15V dc |
Input Voltage Range | 9 → 36 V dc |
Power Rating | 12W |
Input Voltage Nominal | 24 V dc |
Output Current | ±400mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 2 |
Package | DIP |
Isolation Voltage | 1.6kV dc |
Length | 31.8mm |
Depth | 10.2mm |
Series | RP12-AW |
Minimum Temperature | -40°C |
Maximum Temperature | +65°C |
