Recom RP15 AW DC/DC Converter, 15V dc, -15 V dc/ 500 mA, 24V dc Input, 9V Input 15 W, Through Hole, 85 °C Max Temp -40

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 8 units)*

£388.00

(exc. VAT)

£465.60

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£388.00£48.50
5 - 9£376.36£47.045
10 - 24£364.72£45.59
25 - 49£353.08£44.135
50 +£341.44£42.68

*price indicative

RS Stock No.:
162-2726
Mfr. Part No.:
RP15-2415DAW
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

15, -15V dc

Product Type

DC/DC Converter

Minimum Input Voltage

9V

Maximum Input Voltage

24V dc

Output Current 1

500mA

Output Current 2

500mA

Mount Type

Through Hole

Input Ratio

4:1

Number of Outputs

2

MTBF

1330000h

Ripple and Noise

75mV Pk-Pk

Number of Pins

6

Isolation Voltage

1.6kV dc

Maximum Output Power

15W

Package Type

1 x 1 in

Depth

9.9mm

Series

RP15 AW

Width

9.9mm

Weight

15g

Standards/Approvals

REACH

Length

25.4mm

Efficiency

88%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

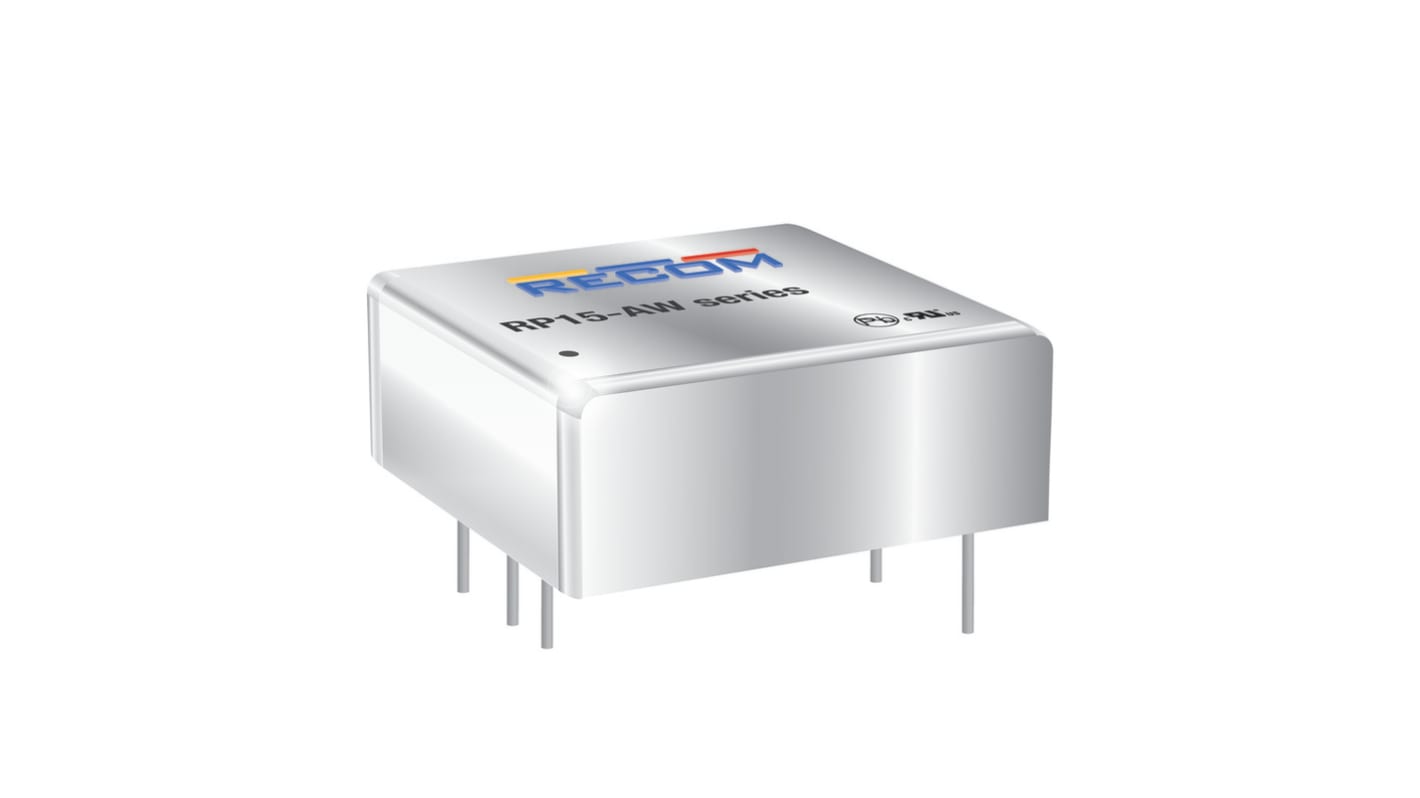

RECOM DC-DC Converter, +15V DC Output Voltage, 88% Efficiency - RP15-AW Series - RP15-2415DAW


Feed your devices the right voltage to ensure hiccup-free performance with this DC-DC converter from RECOM. It accepts input voltages of 9 to 36V DC and converts them into a ±15V DC output to power your low-voltage devices. An isolation voltage of 1.6kV DC means it withstands powerful spikes to boost safety. As it's contained in a small package with dimensions of only 25.4 (L) x 25.4 (W) x 9.9mm (D), you can rest assured this device doesn't clutter your PCB.

Features & Benefits


• Integrated protection against short circuits, overload and overvoltage to help prevent equipment damage

• Performs reliably in harsh environments, thanks to a broad operating temperature range of -40°C to +85°C

• Through-hole mounting for quick and secure installation

• Self-extinguishing epoxy potting for safety in the event of a fire

Applications


• Medical equipment

• Consumer electronics

• Aerospace systems

• Testing and measuring devices

What does the efficiency rating of a DC-DC converter mean?


An efficiency rating shows you how well a DC-DC converter scores in terms of electrical and thermal energy loss. This unit has an efficiency is 88%, which means it loses little energy as heat and keeps its cool as it goes about its work.
