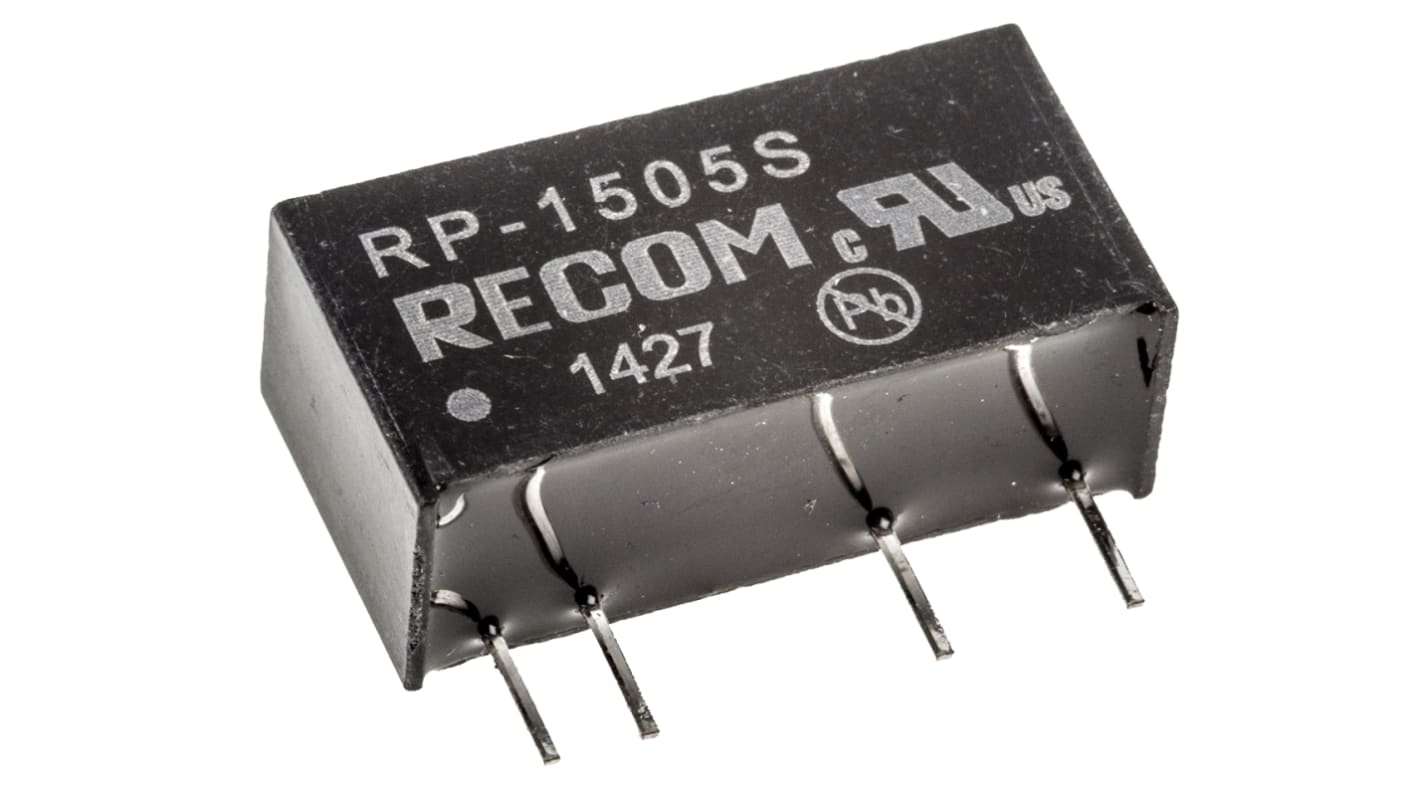

Recom RP DC/DC Converter, 5V dc/ 200 mA, 15V dc Input, 0V Input 1 W, Through Hole, 90 °C Max Temp -40 °C Min Temp, 7-Pin
- RS Stock No.:
- 166-8841
- Mfr. Part No.:
- RP-1505S
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 25 units)*
£312.73
(exc. VAT)
£375.28
(inc. VAT)
Stock information currently inaccessible - Please check back later
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £312.73 | £12.509 |
| 5 - 9 | £303.34 | £12.134 |
| 10 - 24 | £293.96 | £11.758 |
| 25 - 49 | £284.58 | £11.383 |
| 50 + | £275.20 | £11.008 |
*price indicative
- RS Stock No.:
- 166-8841
- Mfr. Part No.:
- RP-1505S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 0V | |
| Maximum Input Voltage | 15V dc | |
| Output Current 1 | 200mA | |
| Output Current 2 | 200mA | |
| Mount Type | Through Hole | |
| Number of Outputs | 1 | |
| MTBF | 150000h | |
| Ripple and Noise | 100mV Pk-Pk | |
| Output Voltage Adjustment Range | 0/15 V | |
| Isolation Voltage | 5.2kV dc | |
| Number of Pins | 7 | |
| Package Type | SIP-7 | |
| Maximum Output Power | 1W | |
| Length | 19.65mm | |
| Depth | 10.2mm | |
| Standards/Approvals | EN60950-1, UL60950-1, CSA60950-1 | |
| Weight | 2.4g | |
| Width | 7.05mm | |
| Series | RP | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 72% | |
| Maximum Operating Temperature | 90°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 0V | ||
Maximum Input Voltage 15V dc | ||
Output Current 1 200mA | ||
Output Current 2 200mA | ||
Mount Type Through Hole | ||
Number of Outputs 1 | ||
MTBF 150000h | ||
Ripple and Noise 100mV Pk-Pk | ||
Output Voltage Adjustment Range 0/15 V | ||
Isolation Voltage 5.2kV dc | ||
Number of Pins 7 | ||
Package Type SIP-7 | ||
Maximum Output Power 1W | ||
Length 19.65mm | ||
Depth 10.2mm | ||
Standards/Approvals EN60950-1, UL60950-1, CSA60950-1 | ||
Weight 2.4g | ||
Width 7.05mm | ||
Series RP | ||
Minimum Operating Temperature -40°C | ||
Efficiency 72% | ||
Maximum Operating Temperature 90°C | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, 10pF Maximum Isolation Capacitance, 1 Second Short-Circuit Protection - RP Series - RP-1505S
Don't let an erratic power supply trip up your PCB-linked components. Take control of your output with this DC-DC converter from RECOM. It steps down 15V inputs to deliver a balanced 5V voltage for parts like sensors and LEDs. To demonstrate that big things come in small packages, the unit measures just 10.2 (D) x 19.65 (L) x 7.05mm (W). You'll have no problem slotting it into a busy setup. It puts up an isolation barrier of up to 5.2kV DC between the supply and output to prevent damage to your appliances caused by power spikes.
Features & Benefits
• Pin-compatible with converters in the RH and RK series, making it a versatile choice
• Mean time between failures of 928,000 hours at +25°C assures you of long-term performance
• Can withstand short circuits of up to one second without suffering damage
Applications
• IGBT drivers
• Automotive equipment
• Medical monitors
• Measurement and instrumentation devices
How do I mount this converter?
This unit is designed to be soldered directly onto your PCB. It comes with pins for through-hole mounting to provide a firm, vibration-proof connection.
