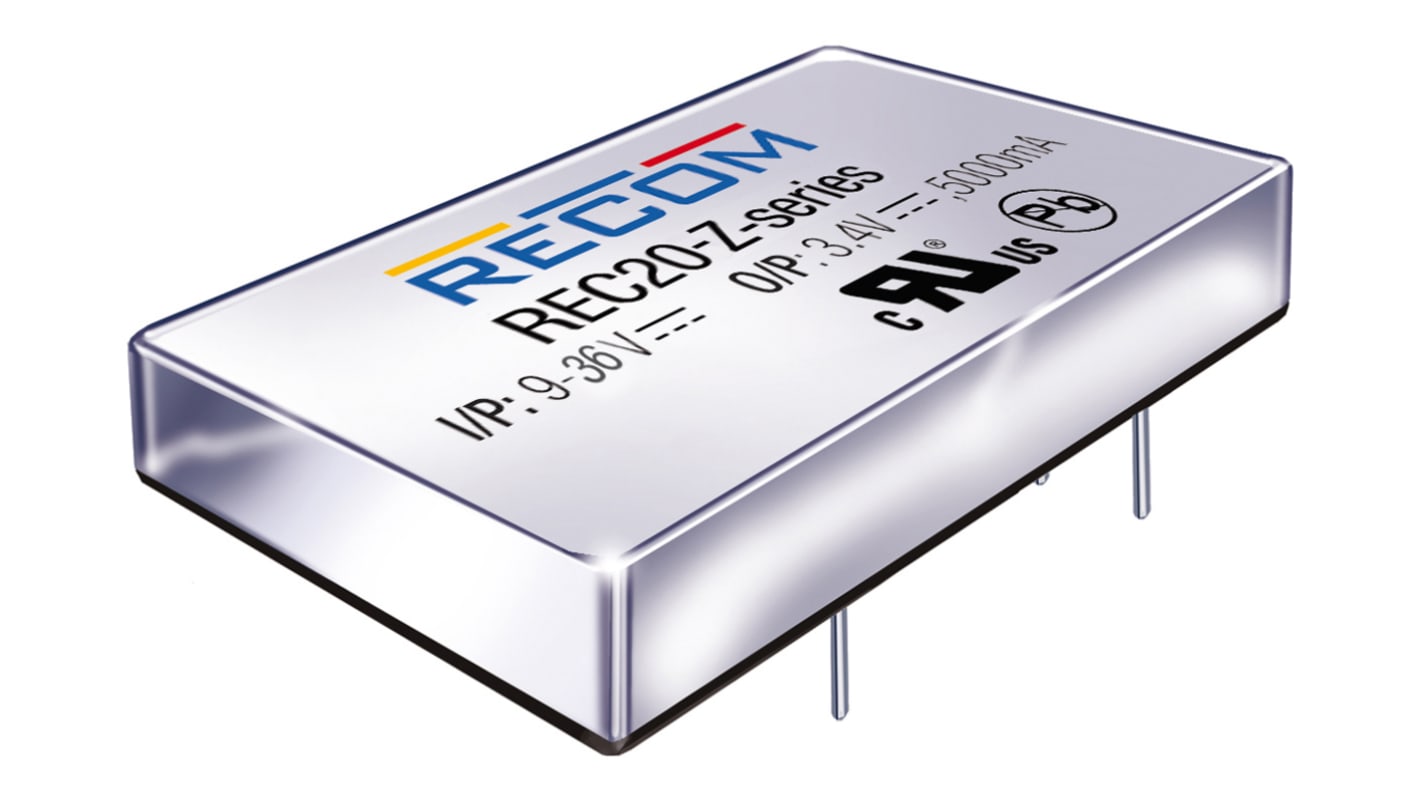

Recom REC20-Z DC-DC Converter, 12V dc/ 1.67A Output, 18 → 75 V dc Input, 20W, Through Hole, +100°C Max Temp
- RS Stock No.:
- 166-8805
- Mfr. Part No.:
- REC20-4812SZ
- Brand:
- Recom
Subtotal (1 tube of 18 units)*
£984.37
(exc. VAT)
£1,181.24
(inc. VAT)
FREE delivery for orders over £50.00
- 999,999,999 unit(s) shipping from 25 February 2026
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £984.37 | £54.687 |
5 - 9 | £954.85 | £53.047 |
10 - 24 | £925.31 | £51.406 |
25 - 49 | £895.78 | £49.766 |
50 + | £866.25 | £48.125 |
*price indicative
- RS Stock No.:
- 166-8805
- Mfr. Part No.:
- REC20-4812SZ
- Brand:
- Recom
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 12V dc | |
Input Voltage Range | 18 → 75 V dc | |
Power Rating | 20W | |
Input Voltage Nominal | 48 V dc | |
Output Current | 1.67A | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Output Voltage Adjustment Range | -10 → +10% | |
Isolation Voltage | 1.6kV dc | |
Length | 50.8mm | |
Width | 25.4mm | |
Depth | 10.2mm | |
Series | REC20-Z | |
Load Regulation | ±0.5% | |
Standards Met | CAN, CSA, cULus Recognised, EN, EN55022, EN60950, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC, IEC60950, IECEE CB SCHEME, REACH, UL, UL60950 | |
Efficiency | 89.5% | |
Minimum Temperature | -40°C | |
Maximum Temperature | +100°C | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 20W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 1.67A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range -10 → +10% | ||
Isolation Voltage 1.6kV dc | ||
Length 50.8mm | ||
Width 25.4mm | ||
Depth 10.2mm | ||
Series REC20-Z | ||
Load Regulation ±0.5% | ||
Standards Met CAN, CSA, cULus Recognised, EN, EN55022, EN60950, EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, IEC, IEC60950, IECEE CB SCHEME, REACH, UL, UL60950 | ||
Efficiency 89.5% | ||
Minimum Temperature -40°C | ||
Maximum Temperature +100°C | ||
- COO (Country of Origin):
- TW
Recom REC20 Series Isolated DC-DC Converter
The REC20 series also comes equipped with remote on/off control as standard to provide flexibility within applications. Another benefit of the REC20 series is track loss voltage compensation within the higher current output variants of the range.
Features and Benefits
•External ON / OFF control for application flexibility.
•Isolated to 1.6 k V dc.
•Continuous short circuit protection.
•6-side shielding.
Standards
