Recom REC20 DC/DC Converter, 3.4V dc/ 5 A, 48V dc Input, 36V Input 20 W, Through Hole, 100 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 166-8800
- Mfr. Part No.:
- REC20-483.4S
- Brand:
- Recom
Bulk discount available
Subtotal (1 tube of 18 units)*
£908.31
(exc. VAT)
£1,089.97
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 03 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £908.31 | £50.462 |
| 5 - 9 | £881.06 | £48.948 |
| 10 - 24 | £853.81 | £47.434 |
| 25 - 49 | £826.57 | £45.921 |
| 50 + | £799.32 | £44.407 |
*price indicative
- RS Stock No.:
- 166-8800
- Mfr. Part No.:
- REC20-483.4S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 3.4V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 36V | |
| Maximum Input Voltage | 48V dc | |
| Output Current 1 | 5A | |
| Mount Type | Through Hole | |
| Input Ratio | 2:1 | |
| MTBF | 607000h | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 10 % | |
| Ripple and Noise | 100mV Pk-Pk | |
| Number of Pins | 6 | |
| Isolation Voltage | 1.6kV dc | |
| Package Type | Tube | |
| Maximum Output Power | 20W | |
| Length | 50.8mm | |
| Standards/Approvals | UL60950, UL, REACH, IECEE CB Scheme, IEC60950, IEC, EN61000-4-8, CAN, EN61000-4-6, EN61000-4-5, EN61000-4-4, EN61000-4-3, EN61000-4-2, EN60950, EN55022, cULus, CSA | |
| Weight | 27g | |
| Width | 25.4mm | |
| Series | REC20 | |
| Depth | 10.2mm | |
| Efficiency | 86.5% | |
| Maximum Operating Temperature | 100°C | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 3.4V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 36V | ||
Maximum Input Voltage 48V dc | ||
Output Current 1 5A | ||
Mount Type Through Hole | ||
Input Ratio 2:1 | ||
MTBF 607000h | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 10 % | ||
Ripple and Noise 100mV Pk-Pk | ||
Number of Pins 6 | ||
Isolation Voltage 1.6kV dc | ||
Package Type Tube | ||
Maximum Output Power 20W | ||
Length 50.8mm | ||
Standards/Approvals UL60950, UL, REACH, IECEE CB Scheme, IEC60950, IEC, EN61000-4-8, CAN, EN61000-4-6, EN61000-4-5, EN61000-4-4, EN61000-4-3, EN61000-4-2, EN60950, EN55022, cULus, CSA | ||
Weight 27g | ||
Width 25.4mm | ||
Series REC20 | ||
Depth 10.2mm | ||
Efficiency 86.5% | ||
Maximum Operating Temperature 100°C | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- TW

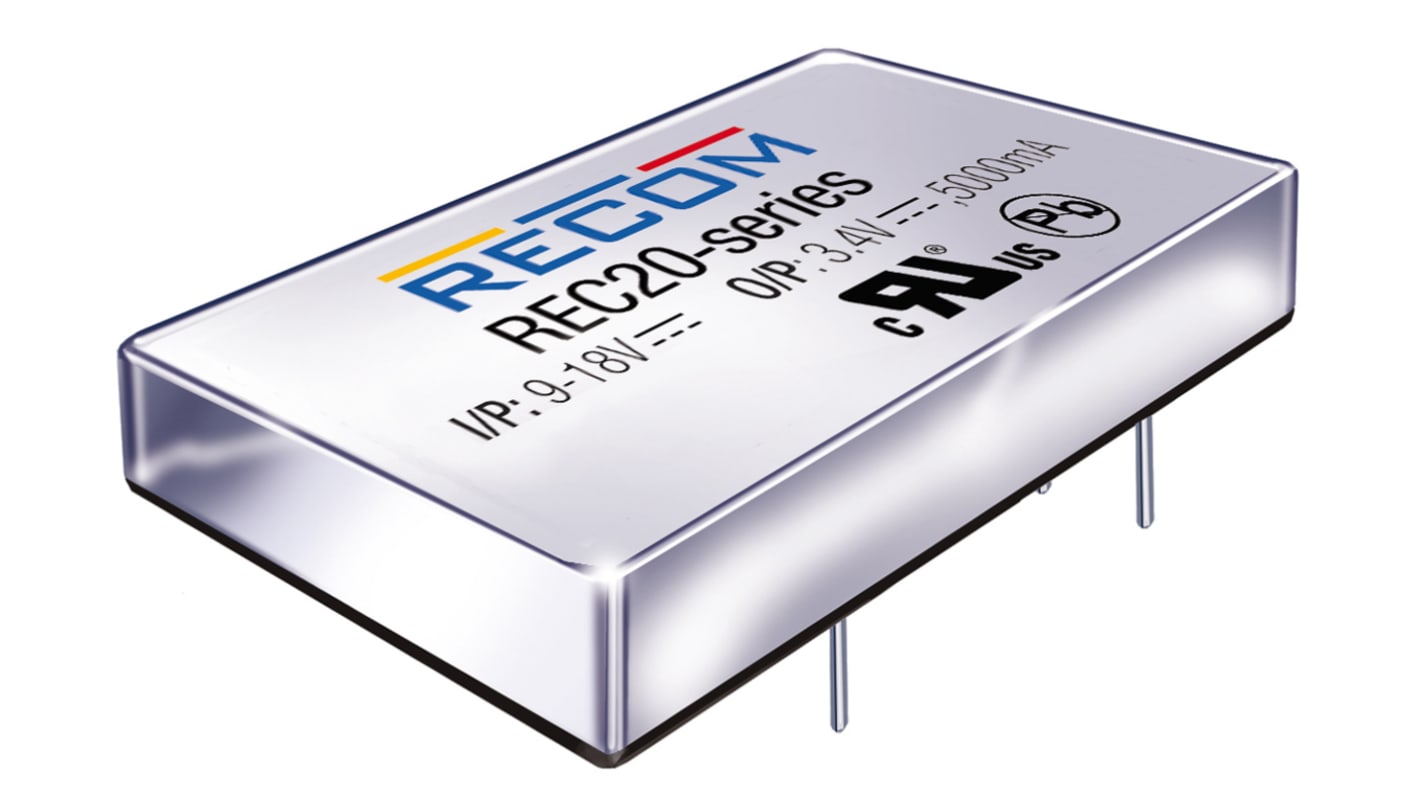

Recom REC20 Series Isolated DC-DC Converter
Recom REC20 series have been designed for use within higher power industrial applications. Boasting both single and dual regulated output functionality within a compact 2" x 1" package.
The REC20 series also comes equipped with remote on/off control as standard to provide flexibility within applications. Another benefit of the REC20 series is track loss voltage compensation within the higher current output variants of the range.
Features and Benefits
•Highly efficient range of DC-DC converters, boasting up to 90.5% efficiency.
•External ON / OFF control for application flexibility.
•Isolated to 1.6 k V dc.
•Continuous short circuit protection.
•6-side shielding.
Recom Isolated DC/DC Converter
Standards
IEC/EN60950-1, UL60950-1, CSA C22.2 No. 60950 & EN55022 Certified.
