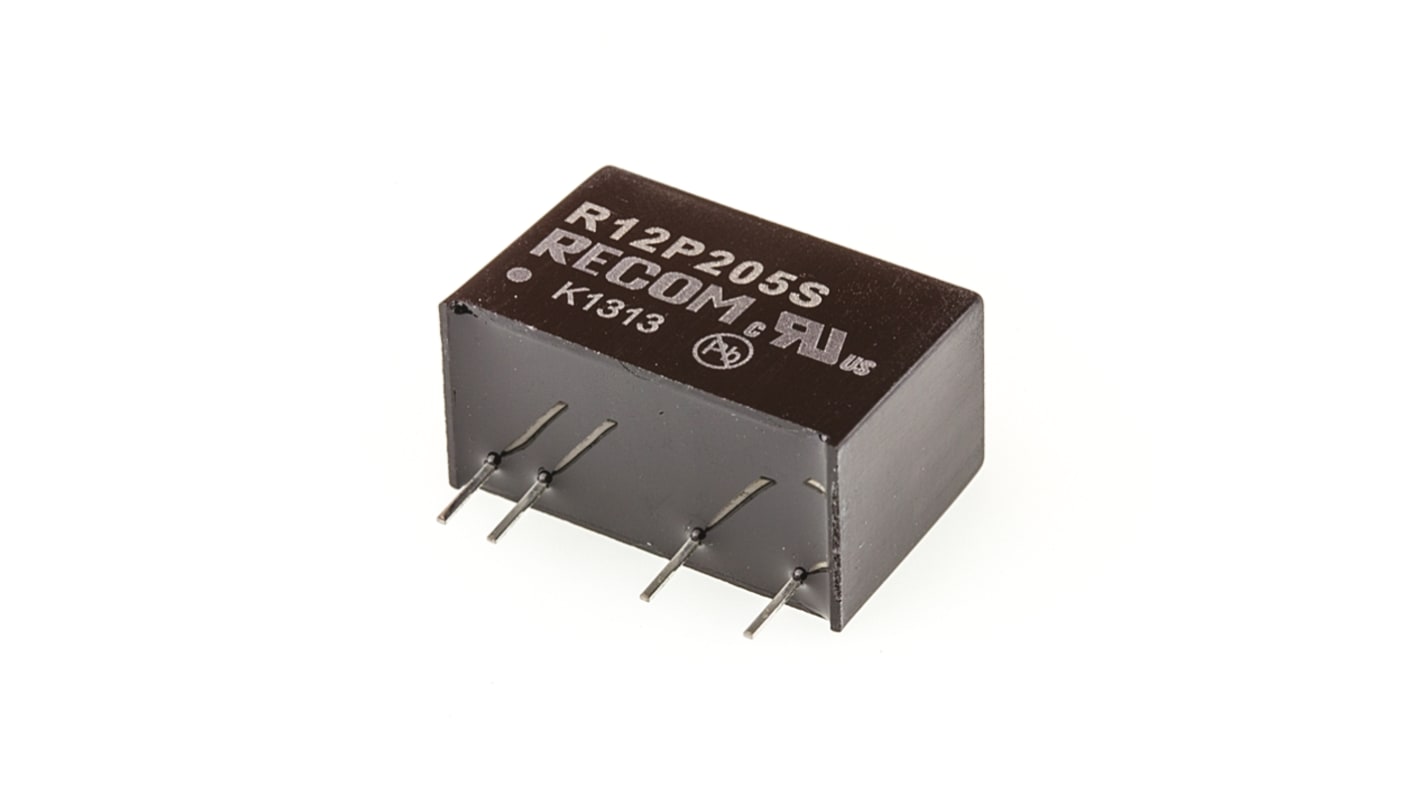

Recom R12P DC/DC Converter, 5V dc/ 400 mA, 12V dc Input, 0V Input 2 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 166-6548
- Mfr. Part No.:
- R12P205S
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 25 units)*
£301.06
(exc. VAT)
£361.27
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 12 April 2027
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £301.06 | £12.042 |
| 5 - 9 | £292.03 | £11.681 |
| 10 - 24 | £283.00 | £11.32 |
| 25 - 49 | £273.97 | £10.959 |
| 50 + | £264.93 | £10.597 |
*price indicative
- RS Stock No.:
- 166-6548
- Mfr. Part No.:
- R12P205S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Minimum Input Voltage | 0V | |
| Maximum Input Voltage | 12V dc | |
| Output Current 1 | 400mA | |
| Output Current 2 | 600mA | |
| Mount Type | Through Hole | |
| MTBF | 168000h | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 0/12 V | |
| Ripple and Noise | 200mV Pk-Pk | |
| Number of Pins | 7 | |
| Isolation Voltage | 2.6kV ac | |
| Package Type | SIP | |
| Maximum Output Power | 2W | |
| Length | 19.5mm | |
| Series | R12P | |
| Depth | 12.5mm | |
| Width | 12.5mm | |
| Standards/Approvals | CSA, IEC, UL | |
| Weight | 4.3g | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 78% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Minimum Input Voltage 0V | ||
Maximum Input Voltage 12V dc | ||
Output Current 1 400mA | ||
Output Current 2 600mA | ||
Mount Type Through Hole | ||
MTBF 168000h | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 0/12 V | ||
Ripple and Noise 200mV Pk-Pk | ||
Number of Pins 7 | ||
Isolation Voltage 2.6kV ac | ||
Package Type SIP | ||
Maximum Output Power 2W | ||
Length 19.5mm | ||
Series R12P | ||
Depth 12.5mm | ||
Width 12.5mm | ||
Standards/Approvals CSA, IEC, UL | ||
Weight 4.3g | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Efficiency 78% | ||
- COO (Country of Origin):
- TW
Recom 2W SIP Single/Dual Output Medical Approved Unregulated Isolated DC-DC Converter - RxxP2xx Series
UL/CSA and EN safety certified
Approved for Medical applications
Suitable for IGBT applications
Compact SIP7 package
Isolation 6.4K Vdc
Very low isolation capacitance
3 year warranty
Approvals
UL recognised
Standards
EN-60950-1, UL-60950-1, EN-60601-1
