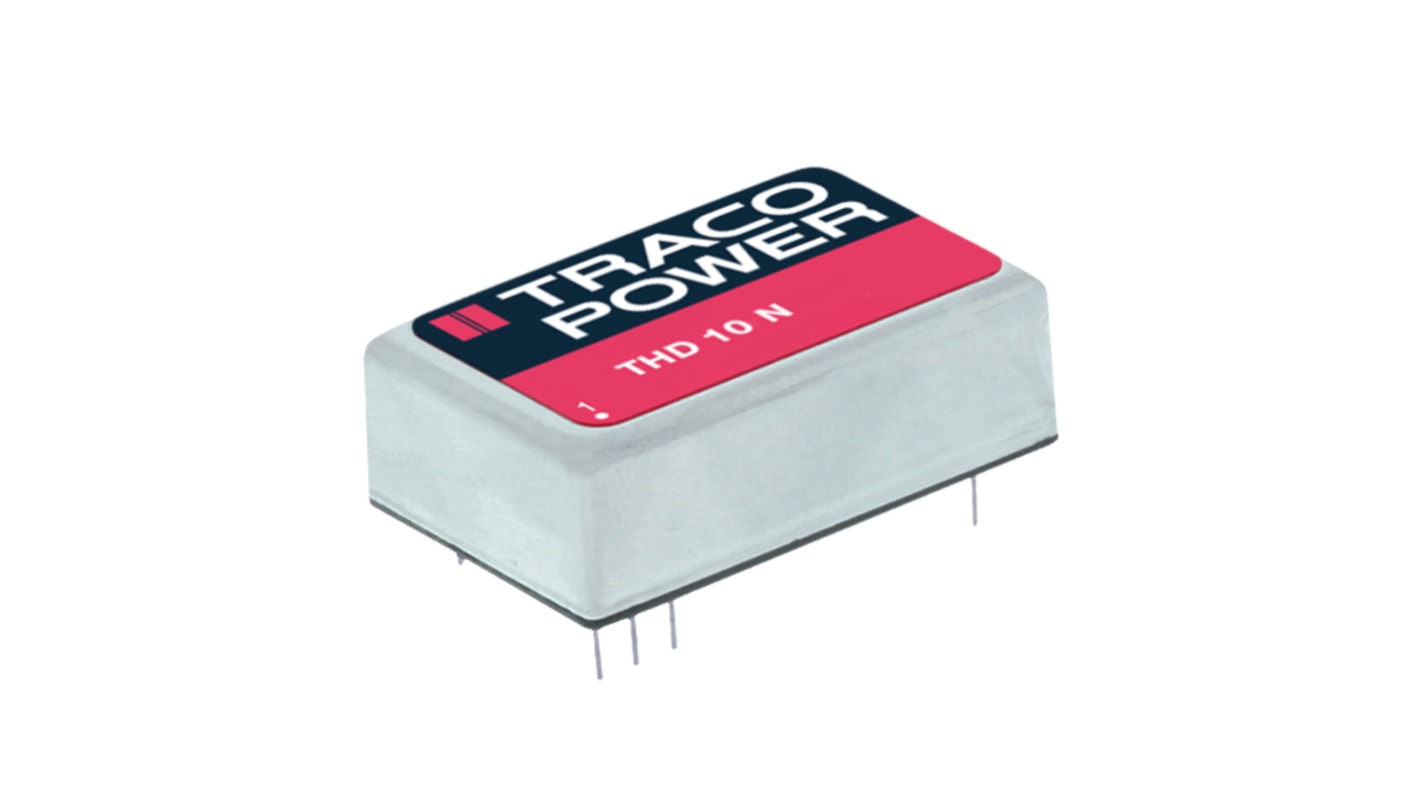

TRACOPOWER THD 10N DC-DC Converter, ±12V dc/ ±416mA Output, 9 → 18 V dc Input, 10W, Through Hole, +85°C Max Temp

RS Stock No.:: 166-6382
Mfr. Part No.:: THD 10-1222N
Brand:: TRACOPOWER

TRACOPOWER THD 10N DC-DC Converter, ±12V dc/ ±416mA Output, 9 → 18 V dc Input, 10W, Through Hole, +85°C Max Temp

Available to back order for despatch when stock is available

Price 1 Tube of 10

£140.82

(exc. VAT)

£168.98

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 +	£140.82	£14.082

*price indicative

RS Stock No.:: 166-6382
Mfr. Part No.:: THD 10-1222N
Brand:: TRACOPOWER

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Traco 10W Regulated Isolated DC-DC Converter - THD10-N Series

The Traco Power THD 10N series is a range of isolated high performance 10W DC-DC converters, in a low profile DIL-24 package, with standard industry pin-out. These DC-DC converters also feature built-in overvoltage protection and internal EMI-filter to meet EN 55022, class A. The THD 10N DC-DC converters have a full SMD-design with exclusive use of ceramic capacitors, which guarantees high reliability and long product lifetime. Typical applications for these converters are industrial electronics, instrumentation, data communication systems and battery operated equipment with limited space available on the PCB.

Wide 2:1 input Voltage range
High efficiency up to 87%
Operating temperature range –40°C to +85°C
Internal EMI-filter meets EN 55022, class A
I/O isolation 1500VDC
Remote On/Off
No minimum load required

Standards

UL/cUL 60950-1, IEC/EN 60950-1

Approvals

UL/cUL

Specifications

Attribute	Value
Output Voltage	±12V dc
Input Voltage Range	9 → 18 V dc
Power Rating	10W
Input Voltage Nominal	12 V dc
Output Current	±416mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	DIP 24
Isolation Voltage	1.5kV dc
Width	20.3mm
Length	31.8mm
Depth	10.2mm
Series	THD 10N
Load Regulation	0.02
Maximum Temperature	+85°C
Efficiency	87%
Minimum Temperature	-40°C
Standards Met	CSA US, CSA/UL 60950-1 Certified, IEC/EN 60950-1, RoHS Compliant, UL/cUL 60950-1
