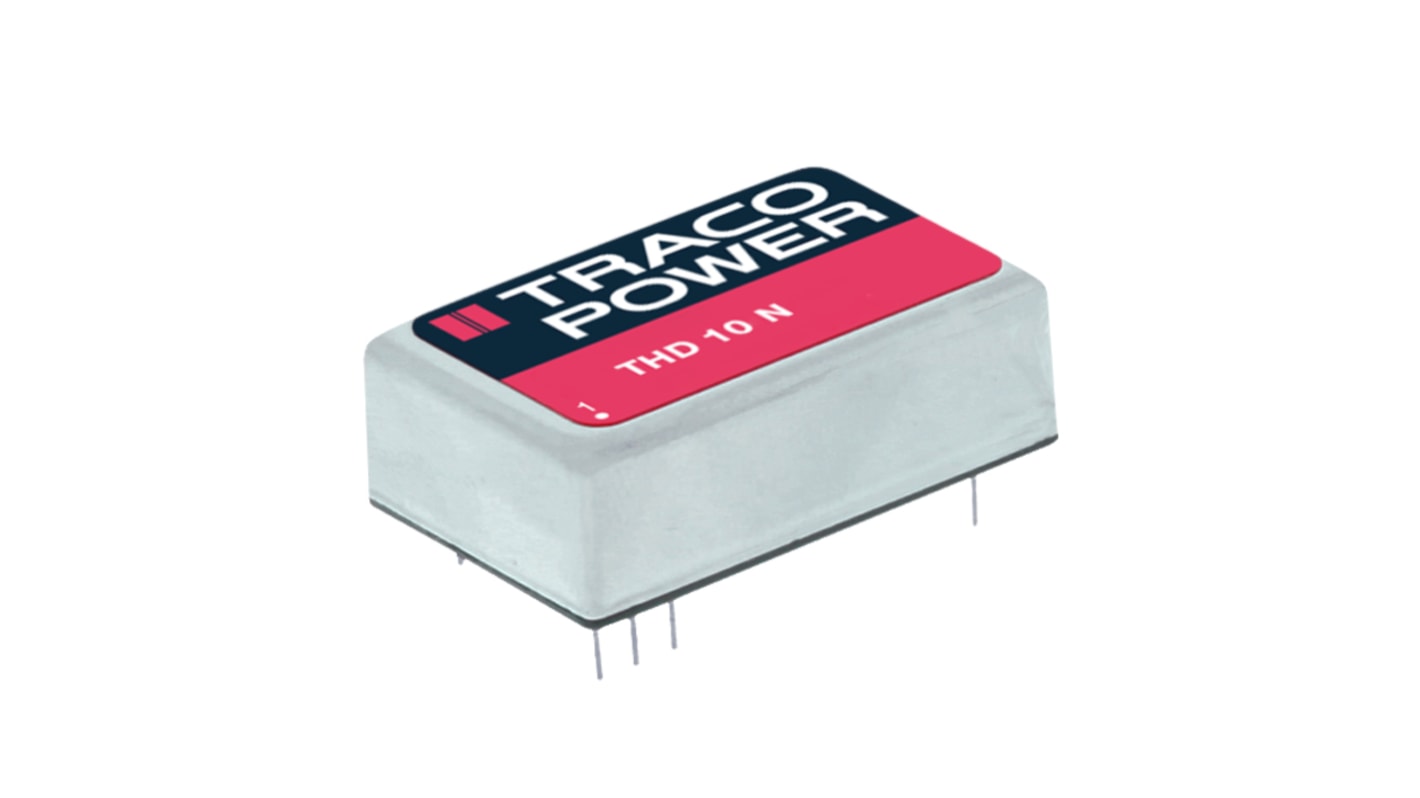

TRACOPOWER THD 10N DC-DC Converter, 5V dc/ 2A Output, 9 → 18 V dc Input, 10W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 166-6381
- Mfr. Part No.:
- THD 10-1211N
- Brand:
- TRACOPOWER
2 In stock - FREE next working day delivery available
Price 1 Tube of 10
£216.68
(exc. VAT)
£260.02
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £216.68 | £21.668 |
5 - 9 | £210.18 | £21.018 |
10 - 24 | £203.68 | £20.368 |
25 - 49 | £195.01 | £19.501 |
50 + | £186.34 | £18.634 |
*price indicative
- RS Stock No.:
- 166-6381
- Mfr. Part No.:
- THD 10-1211N
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco Power DC-DC Converter, DIP-24 Format, 1000μF, Capacitive Load- THD 10N Series - THD 10-1211N
Need a product to provide consistent energy to PCB-linked components? This DC-DC converter from Traco Power is up to the task. It delivers an output of 5V DC so it's suitable for low-power jobs. A versatile input voltage range between 9 and 18V DC makes it a versatile option. The assembly has the oomph to take on challenging conditions as it's housed in a protective metal case that shrugs off bumps and abrasions. Through-hole mounting achieves a permanent and secure hold that prevents shaky connections in high-vibration settings. Thanks to a maximum ripple and noise of just 80mVp-p, interference won't trip up your system's performance.
Features & Benefits
• Performs reliably in a temperature range between -40°C and +85°C
• Light 17.3g weight keeps strain to a minimum
• 85% efficiency means little energy goes to waste
• 1.5kV isolation protects the unit from hazardous overvoltages
• Light 17.3g weight keeps strain to a minimum
• 85% efficiency means little energy goes to waste
• 1.5kV isolation protects the unit from hazardous overvoltages
Applications
• Industrial power supplies
• Factory automation
• R&D labs
• Factory automation
• R&D labs
How big is this device?
This DC-DC converter has space-efficient dimensions of 31.8 (L) x 20.3 (W) x 10.2mm (D), so it's a compact option that maximises space on your board.
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 9 → 18 V dc |
Power Rating | 10W |
Input Voltage Nominal | 12 V dc |
Output Current | 2A |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | DIP 24 |
Isolation Voltage | 1.5kV dc |
Depth | 10.2mm |
Length | 31.8mm |
Width | 20.3mm |
Series | THD 10N |
Load Regulation | 0.012 |
Minimum Temperature | -40°C |
Standards Met | CSA US, CSA/UL 60950-1 Certified, IEC/EN 60950-1, RoHS Compliant, UL/cUL 60950-1 |
Maximum Temperature | +85°C |
