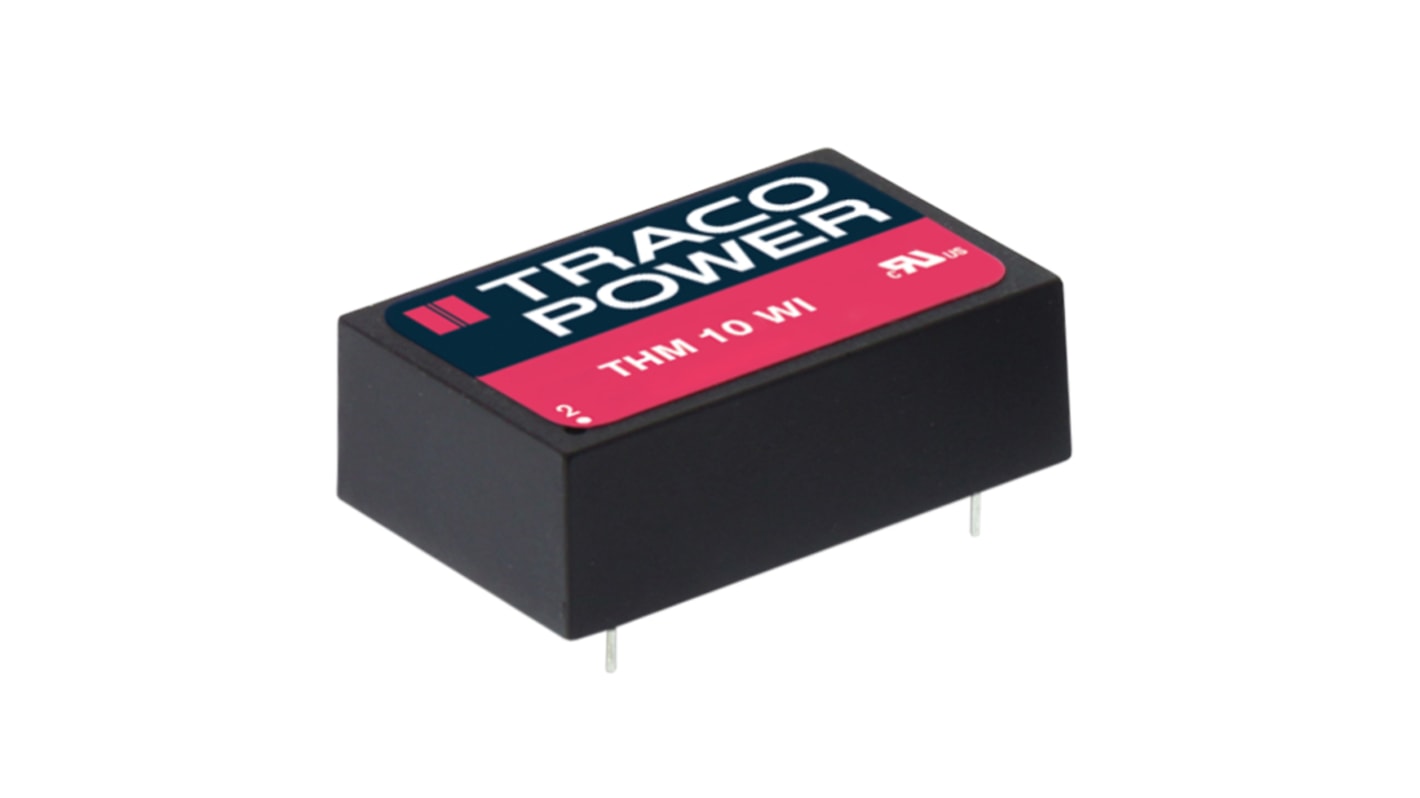

TRACOPOWER THM 10WI DC-DC Converter, ±15V dc/ ±333mA Output, 9 → 36 V dc Input, 10W, Through Hole, +85°C Max

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£559.81

(exc. VAT)

£671.77

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s)
Per Tube
Per unit*
1 - 4£559.81£55.981
5 - 9£543.02£54.302
10 - 24£526.22£52.622
25 - 49£503.82£50.382
50 +£481.43£48.143

*price indicative

RS Stock No.:
166-6234
Mfr. Part No.:
THM 10-2423WI
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage

±15V dc

Input Voltage Range

9 → 36 V dc

Power Rating

10W

Input Voltage Nominal

12 V dc

Output Current

±333mA

Mounting Type

Through Hole

Isolated

Yes

Number of Outputs

2

Package

DIP 24

Isolation Voltage

5kV ac

Depth

10.2mm

Length

31.8mm

Series

THM 10WI

Railway Approved

No

Load Regulation

0.01

Minimum Temperature

-40°C

Medical Approved

Yes

Efficiency

88%

Maximum Temperature

+85°C

COO (Country of Origin):
TW

Traco 10W Regulated Isolated DC-DC Converter - THM 10WI Serie


The Tracopower THM-10WI comes in a DIP-24 plastic package, high efficiency of up to 87% and highest grade components. The reinforced I/O-isolation of this high performance regulated DC/DC converter complies with medical safety requirements for MOPP (Means Of Patient Protection). The THM-10WI range of DC/DC converters feature a wide 4:1 input voltage range and an internal EMI filter meeting EN55022 class A, which makes the THM-10WI a reliable solution for demanding applications, such as transportation systems, industrial control equipments, measurement equipments and some IGBT drivers applications.

Ultra wide 4:1 input voltage
I/O isolation 5000 VACrms rated for 250 working voltage
2 x MOPP Medical safety
Low leakage current ˂2 μA
Very high efficiency up to 89%
Extended operating temperature range –40°C to 85°C
Input filter to meet EN55022 class A
3-year product warranty

Standards

AAMI/ANSI ES 60601-1
2005(R) 2012
IEC/EN 60601-1 3rd edition

Approvals

UL online certification ES 60601-1
