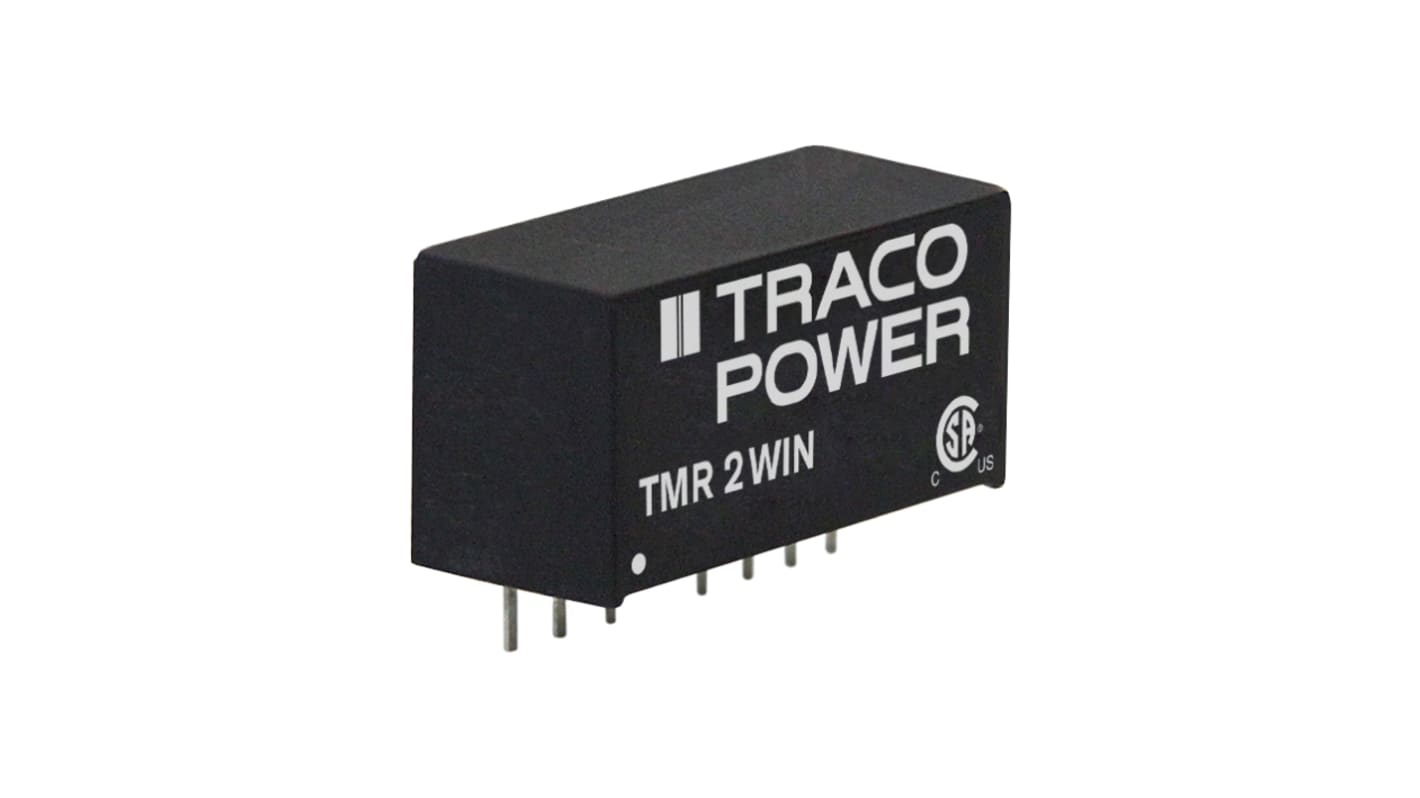

TRACOPOWER TMR 2WIN DC-DC Converter, 12V dc/ 167mA Output, 18 → 75 V dc Input, 2W, Through Hole, +90°C Max Temp
- RS Stock No.:
- 166-6164
- Mfr. Part No.:
- TMR 2-4812WIN
- Brand:
- TRACOPOWER
Save 13% when you buy 50 units
Subtotal (1 tube of 10 units)*
£138.75
(exc. VAT)
£166.50
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £138.75 | £13.875 |
| 5 - 9 | £134.59 | £13.459 |
| 10 - 24 | £130.43 | £13.043 |
| 25 - 49 | £124.88 | £12.488 |
| 50 + | £119.34 | £11.934 |
*price indicative
- RS Stock No.:
- 166-6164
- Mfr. Part No.:
- TMR 2-4812WIN
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 12V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 2W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 167mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 8 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 9.3mm | |
| Length | 21.8mm | |
| Series | TMR 2WIN | |
| Load Regulation | 0.01 | |
| Efficiency | 82% | |
| Maximum Temperature | +90°C | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 12V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 2W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 167mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 8 | ||
Isolation Voltage 1.5kV dc | ||
Depth 9.3mm | ||
Length 21.8mm | ||
Series TMR 2WIN | ||
Load Regulation 0.01 | ||
Efficiency 82% | ||
Maximum Temperature +90°C | ||
Minimum Temperature -40°C | ||
