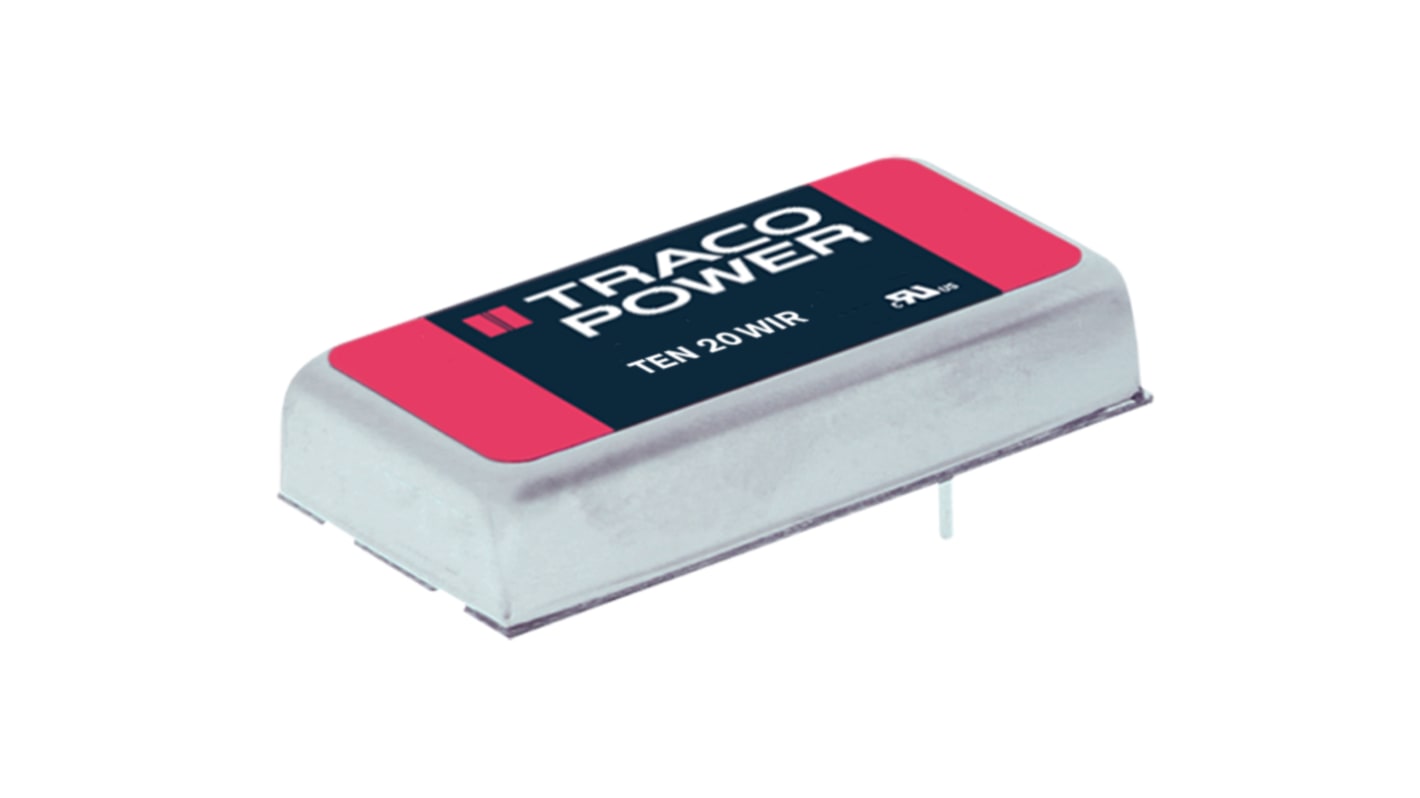

TRACOPOWER TEN 20WIR DC/DC Converter, 5V dc/ 4 A, 160V dc Input, 43V Input 20 W, PCB, 85 °C Max Temp -40 °C Min Temp

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 10 units)*

£628.44

(exc. VAT)

£754.13

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 07 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)
Per Tube
Per unit*
1 - 4£628.44£62.844
5 - 9£609.59£60.959
10 - 24£590.74£59.074
25 - 49£565.60£56.56
50 +£540.46£54.046

*price indicative

RS Stock No.:
166-6026
Mfr. Part No.:
TEN 20-7211WIR
Brand:
TRACOPOWER
Find similar products by selecting one or more attributes.
Select all

Brand

TRACOPOWER

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Minimum Input Voltage

43V

Maximum Input Voltage

160V dc

Output Current 1

4A

Mount Type

PCB

Input Ratio

1:6

Number of Outputs

1

MTBF

700000h

Isolation Voltage

1.5kV dc

Package Type

Metal case

Maximum Output Power

20W

Standards/Approvals

No

Depth

10.2mm

Length

50.8mm

Series

TEN 20WIR

Efficiency

87%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

COO (Country of Origin):
TW

Traco 20W Single/Dual Output Regulated Isolated DC-DC Converter - TEN 20WIR Series


20W single/dual output DC - DC converter modules with an ultra wide 4:1 input voltage range and Compact 2" x 1" package. These 20 W DC - DC converter modules have EN 50155 approval making them Ideal for railway and transportation applications. Low input current characteristics at minimal load also make these DC - DC converters suitable for battery-operated systems. Other typical applications for these DC - DC converters include wireless networks, telecoms, datacoms, industry control systems and measurement equipment.

2" x 1" metal package with industry standard footprint

Ultra wide 4:1 input voltage range of up to 160 Vdc

Adjustable output voltage

No minimum load required

Remote On/Off

Protection: Over voltage (on single output models), under voltage lockout and short circuit

High efficiency of up to 89%

Thermal shock and vibration resistant according to EN 61373

EN 50155 approval for railway applications

EMC compliance to EN 55022 class B without external componenents (for 24 & 48 Vin models)

EMC compliance to EN 55022 class B without external componenents (for 110 Vin models)

Note

MTBF to MIL-HDBK-217F (25°C)
Power derates 4.5% / K above 73°C
For suitable heatsink see stock number 745-1234

Standards

UL/cUL 60950-1, IEC/EN 60950-1, EN 50155
