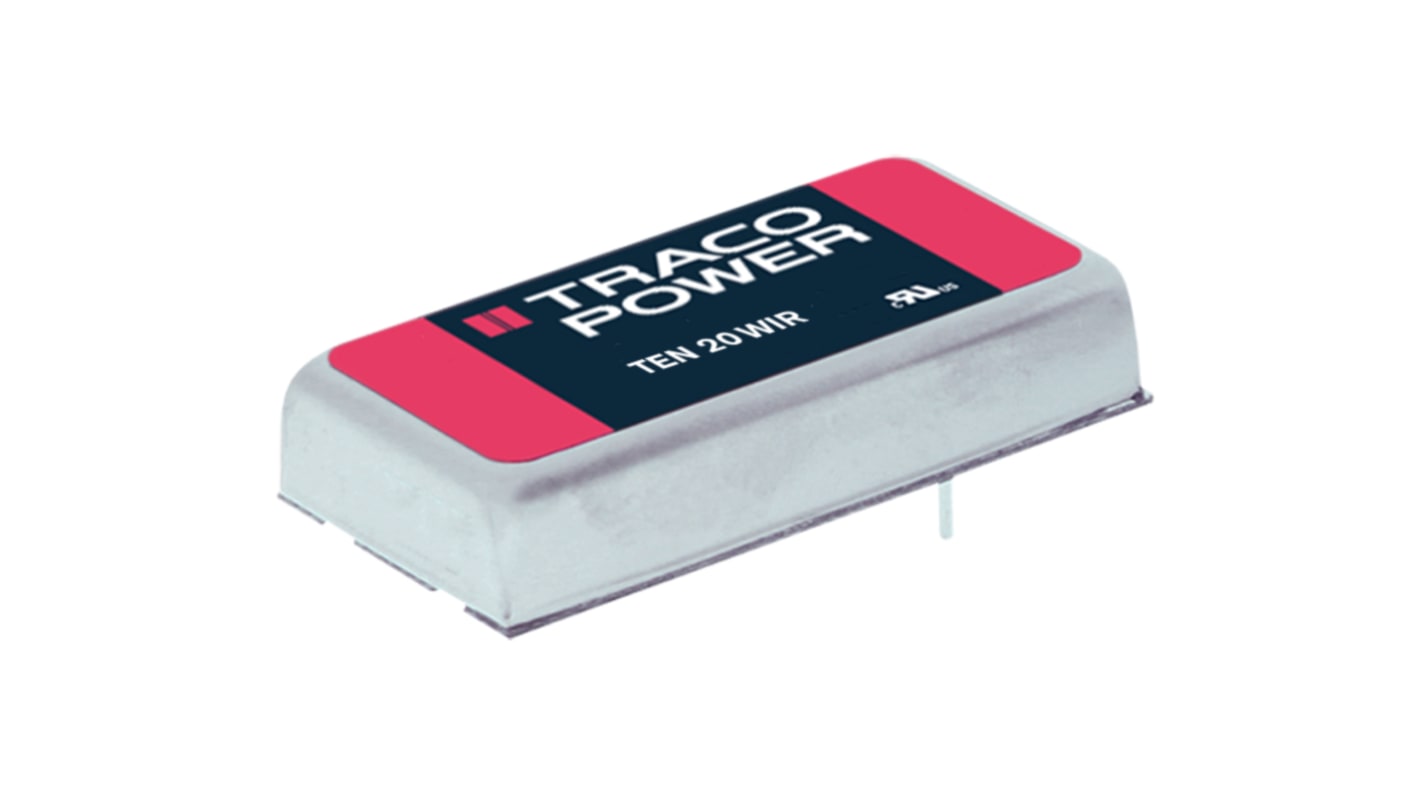

TRACOPOWER TEN 20WIR DC-DC Converter, 5V dc/ 4A Output, 9 → 36 V dc Input, 20W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-6022
- Mfr. Part No.:
- TEN 20-2411WIR
- Brand:
- TRACOPOWER
Save 13% when you buy 50 units
Subtotal (1 tube of 10 units)*
£680.61
(exc. VAT)
£816.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £680.61 | £68.061 |
| 5 - 9 | £660.20 | £66.02 |
| 10 - 24 | £639.78 | £63.978 |
| 25 - 49 | £612.56 | £61.256 |
| 50 + | £585.34 | £58.534 |
*price indicative
- RS Stock No.:
- 166-6022
- Mfr. Part No.:
- TEN 20-2411WIR
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 9 → 36 V dc | |
| Power Rating | 20W | |
| Input Voltage Nominal | 24 V dc | |
| Output Current | 4A | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Output Voltage Adjustment Range | 4.5 → 5.5V dc | |
| Isolation Voltage | 1.5kV dc | |
| Width | 25.4mm | |
| Depth | 10.2mm | |
| Length | 50.8mm | |
| Railway Approved | Yes | |
| Series | TEN 20WIR | |
| Load Regulation | ±0.5% | |
| Maximum Temperature | +85°C | |
| Minimum Temperature | -40°C | |
| Standards Met | CE | |
| Medical Approved | No | |
| Efficiency | 88% | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 5V dc | ||
Input Voltage Range 9 → 36 V dc | ||
Power Rating 20W | ||
Input Voltage Nominal 24 V dc | ||
Output Current 4A | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Output Voltage Adjustment Range 4.5 → 5.5V dc | ||
Isolation Voltage 1.5kV dc | ||
Width 25.4mm | ||
Depth 10.2mm | ||
Length 50.8mm | ||
Railway Approved Yes | ||
Series TEN 20WIR | ||
Load Regulation ±0.5% | ||
Maximum Temperature +85°C | ||
Minimum Temperature -40°C | ||
Standards Met CE | ||
Medical Approved No | ||
Efficiency 88% | ||
