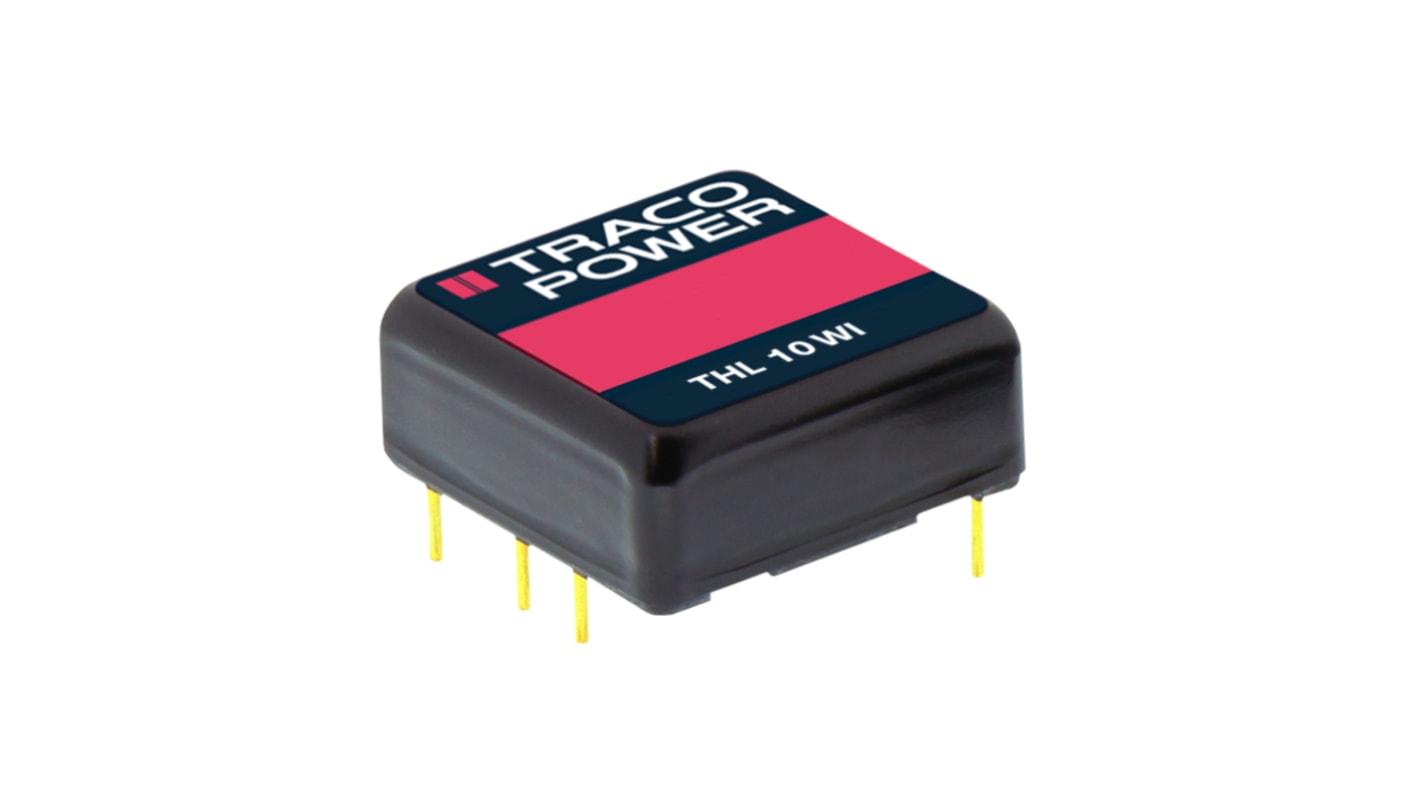

TRACOPOWER THL 10WI DC-DC Converter, 15V dc/ 660mA Output, 18 → 75 V dc Input, 10W, Through Hole, +75°C Max Temp
- RS Stock No.:
- 166-5955
- Mfr. Part No.:
- THL 10-4813WI
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£292.29
(exc. VAT)
£350.75
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 24 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £292.29 | £29.229 |
| 5 - 9 | £283.53 | £28.353 |
| 10 - 24 | £274.75 | £27.475 |
| 25 - 49 | £263.06 | £26.306 |
| 50 + | £251.37 | £25.137 |
*price indicative
- RS Stock No.:
- 166-5955
- Mfr. Part No.:
- THL 10-4813WI
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 15V dc | |
| Input Voltage Range | 18 → 75 V dc | |
| Power Rating | 10W | |
| Input Voltage Nominal | 48 V dc | |
| Output Current | 660mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Isolation Voltage | 1.5kV dc | |
| Depth | 10.2mm | |
| Length | 25.4mm | |
| Series | THL 10WI | |
| Load Regulation | ±1.2% | |
| Minimum Temperature | -40°C | |
| Efficiency | 87% | |
| Maximum Temperature | +75°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 15V dc | ||
Input Voltage Range 18 → 75 V dc | ||
Power Rating 10W | ||
Input Voltage Nominal 48 V dc | ||
Output Current 660mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Isolation Voltage 1.5kV dc | ||
Depth 10.2mm | ||
Length 25.4mm | ||
Series THL 10WI | ||
Load Regulation ±1.2% | ||
Minimum Temperature -40°C | ||
Efficiency 87% | ||
Maximum Temperature +75°C | ||
