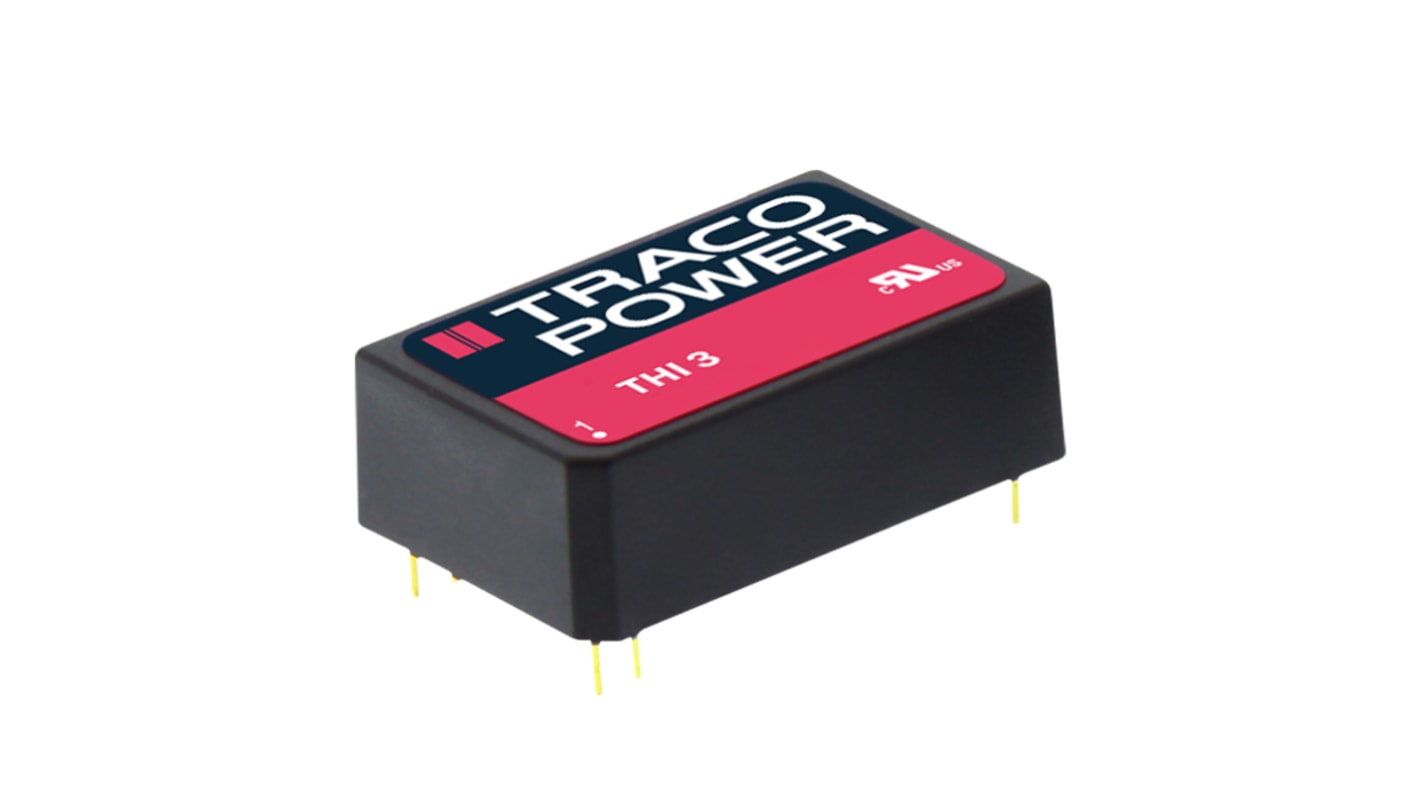

TRACOPOWER THI 3 DC-DC Converter, 12V dc/ 250mA Output, 10.8 → 13.2 V dc Input, 3W, Through Hole
- RS Stock No.:
- 166-5893
- Mfr. Part No.:
- THI 3-1212
- Brand:
- TRACOPOWER
Available to back order for despatch 15/08/2024
Added
Price 1 Tube of 10
£236.77
(exc. VAT)
£284.12
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £236.77 | £23.677 |
| 5 - 9 | £229.67 | £22.967 |
| 10 - 24 | £222.56 | £22.256 |
| 25 - 49 | £213.09 | £21.309 |
| 50 + | £203.62 | £20.362 |
| *price indicative | ||
- RS Stock No.:
- 166-5893
- Mfr. Part No.:
- THI 3-1212
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - THI-3 Series
The THI-3 Series is a new family of High isolation 3W DC-DC converters, they have a reinforced insulation system, with I/O isolation voltage specified for 3000VACrms. These Tracopower converters come in an encapsulated DIP-24 package and are available in 15 models, covering 5, 12 and 24 VDC input voltage and single or dual output voltage. The THI-3 DC/DC converters are cost effective and they are an ideal solution for applications in industrial control and medical instrumentation which requires a certified supplementary or reinforced insulation system, making them suitable for medical safety or industrial standards.
3000VAC reinforced insulation
300VAC working voltage insulation rated
Medical safety to UL/CSA/EN/IEC 60601-1 3rd edition and 2 x MOOP
Fully regulated Output voltage
Input filter meets EN 55022, class A and FCC, level A
Operating temperature -40 to +75°C
Low leakage current
Low coupling capacitance
Short circuit protection
3 year product warranty
300VAC working voltage insulation rated
Medical safety to UL/CSA/EN/IEC 60601-1 3rd edition and 2 x MOOP
Fully regulated Output voltage
Input filter meets EN 55022, class A and FCC, level A
Operating temperature -40 to +75°C
Low leakage current
Low coupling capacitance
Short circuit protection
3 year product warranty
Standards
EN 60950-1, UL60950-1, IEC 60950-1, CSA C22.2 No. 60950-1-03, EN 60601-1, UL 60601-1, IEC 60601-1, CSA C22.2 No. 601-1, 2 x MOOP
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 10.8 → 13.2 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 12 V dc |
| Output Current | 250mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Isolation Voltage | 4kV ac |
| Series | THI 3 |
| Railway Approved | No |
| Efficiency | 62% |
| Medical Approved | Yes |
