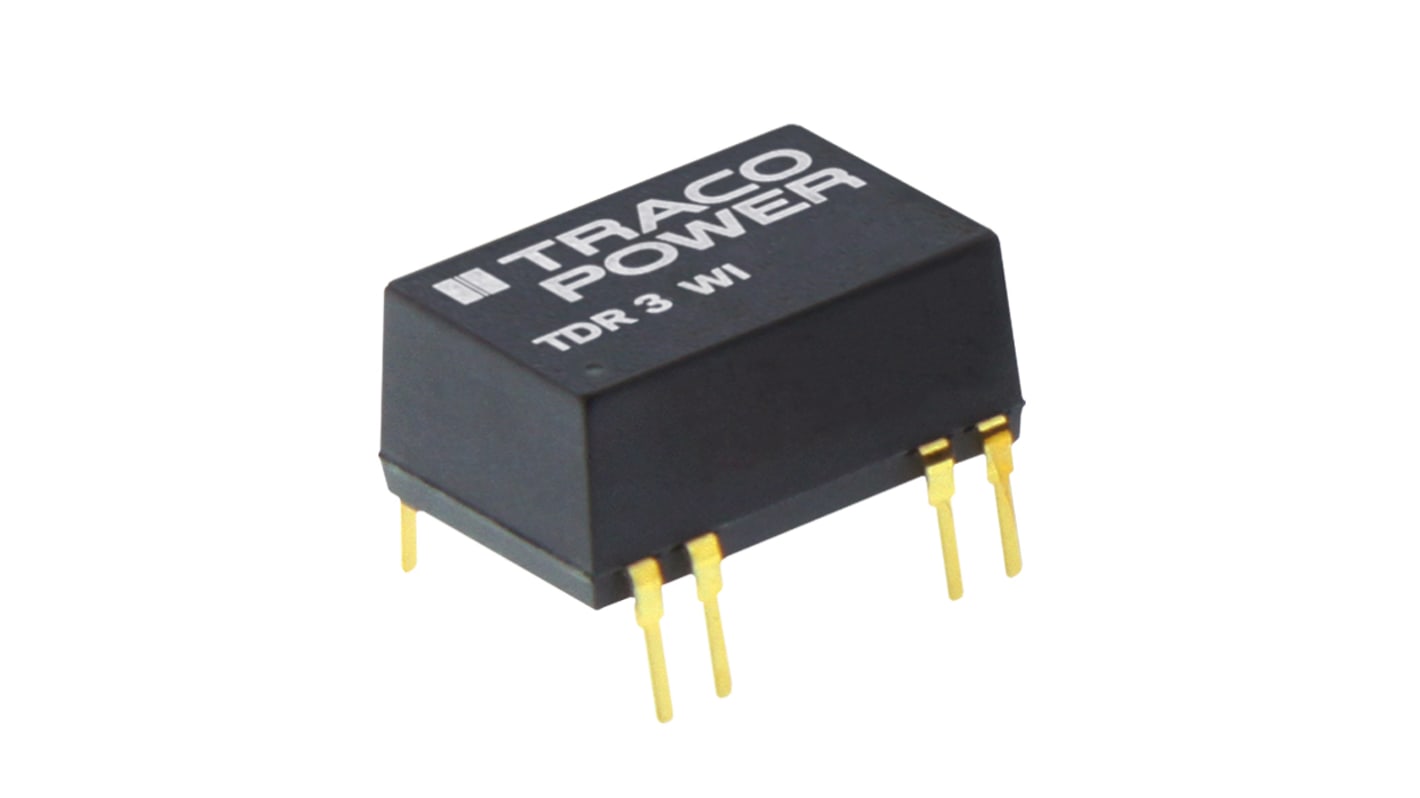

TRACOPOWER TDR 3WI DC-DC Converter, ±15V dc/ ±100mA Output, 18 → 75 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-5843
- Mfr. Part No.:
- TDR 3-4823WI
- Brand:
- TRACOPOWER
Available to back order for despatch 01/10/2024
Added
Price 1 Tube of 10
£289.88
(exc. VAT)
£347.86
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £289.88 | £28.988 |
| 5 - 9 | £281.18 | £28.118 |
| 10 - 24 | £272.49 | £27.249 |
| 25 - 49 | £260.89 | £26.089 |
| 50 + | £249.30 | £24.93 |
| *price indicative | ||
- RS Stock No.:
- 166-5843
- Mfr. Part No.:
- TDR 3-4823WI
- Brand:
- TRACOPOWER
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Traco 3W DIP Single/Dual Output Regulated Isolated DC-DC Converter - TDR 3WI Series
Compact design in DIP package
Wide 4:1 input voltage range
Fully regulated outputs
No minimum load required
I/O-isolation 1500 Vdc
Operating temperature range –40 °C to +85 °C
Short circuit protection
Remote On/Off
Wide 4:1 input voltage range
Fully regulated outputs
No minimum load required
I/O-isolation 1500 Vdc
Operating temperature range –40 °C to +85 °C
Short circuit protection
Remote On/Off
Note
Specifications
Attribute | Value |
|---|---|
| Output Voltage | ±15V dc |
| Input Voltage Range | 18 → 75 V dc |
| Power Rating | 3W |
| Input Voltage Nominal | 48 V dc |
| Output Current | ±100mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 2 |
| Package | DIP 14 |
| Isolation Voltage | 1.5kV dc |
| Depth | 8.45mm |
| Length | 18.9mm |
| Series | TDR 3WI |
| Load Regulation | ±1% |
| Efficiency | 81% |
| Maximum Temperature | +85°C |
| Minimum Temperature | -40°C |
