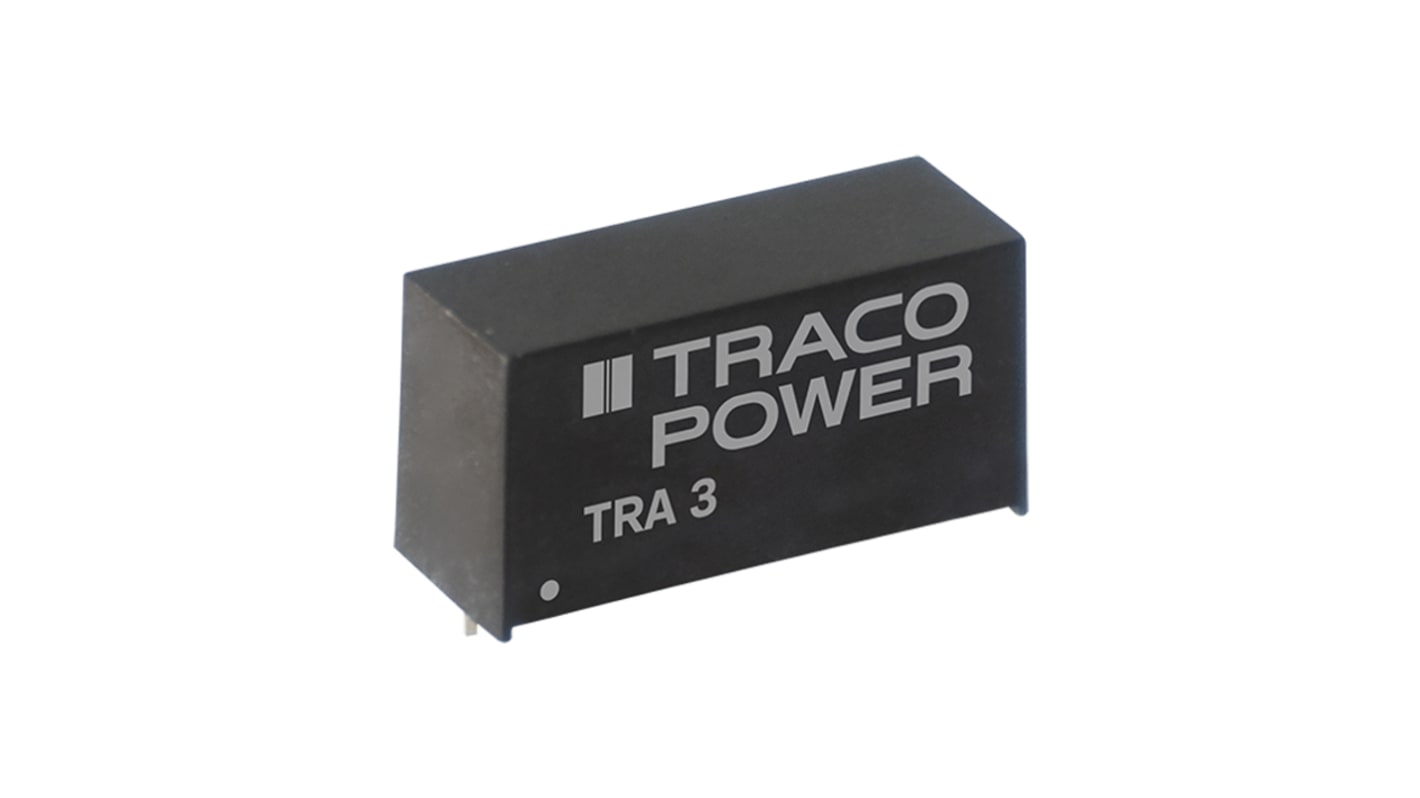

TRACOPOWER TRA 3 DC-DC Converter, 9V dc/ 333mA Output, 10.8 → 13.2 V dc Input, 3W, Through Hole, +85°C Max Temp
- RS Stock No.:
- 166-5695
- Mfr. Part No.:
- TRA 3-1219
- Brand:
- TRACOPOWER
Bulk discount available
Subtotal (1 tube of 10 units)*
£93.73
(exc. VAT)
£112.48
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £93.73 | £9.373 |
| 5 - 9 | £90.92 | £9.092 |
| 10 - 24 | £88.11 | £8.811 |
| 25 - 49 | £84.36 | £8.436 |
| 50 + | £80.61 | £8.061 |
*price indicative
- RS Stock No.:
- 166-5695
- Mfr. Part No.:
- TRA 3-1219
- Brand:
- TRACOPOWER
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TRACOPOWER | |
| Output Voltage | 9V dc | |
| Input Voltage Range | 10.8 → 13.2 V dc | |
| Power Rating | 3W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 333mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 6 | |
| Isolation Voltage | 1kV dc | |
| Depth | 10.2mm | |
| Length | 19.5mm | |
| Series | TRA 3 | |
| Load Regulation | 0.05 | |
| Maximum Temperature | +85°C | |
| Efficiency | 87% | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand TRACOPOWER | ||
Output Voltage 9V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 3W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 333mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 6 | ||
Isolation Voltage 1kV dc | ||
Depth 10.2mm | ||
Length 19.5mm | ||
Series TRA 3 | ||
Load Regulation 0.05 | ||
Maximum Temperature +85°C | ||
Efficiency 87% | ||
Minimum Temperature -40°C | ||
